EN/15
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 140 447 Issue date: 06.2001
11. To connect the tacho A signal
0
0
0
0
0
Cars with high instrument cluster (SA 555) only

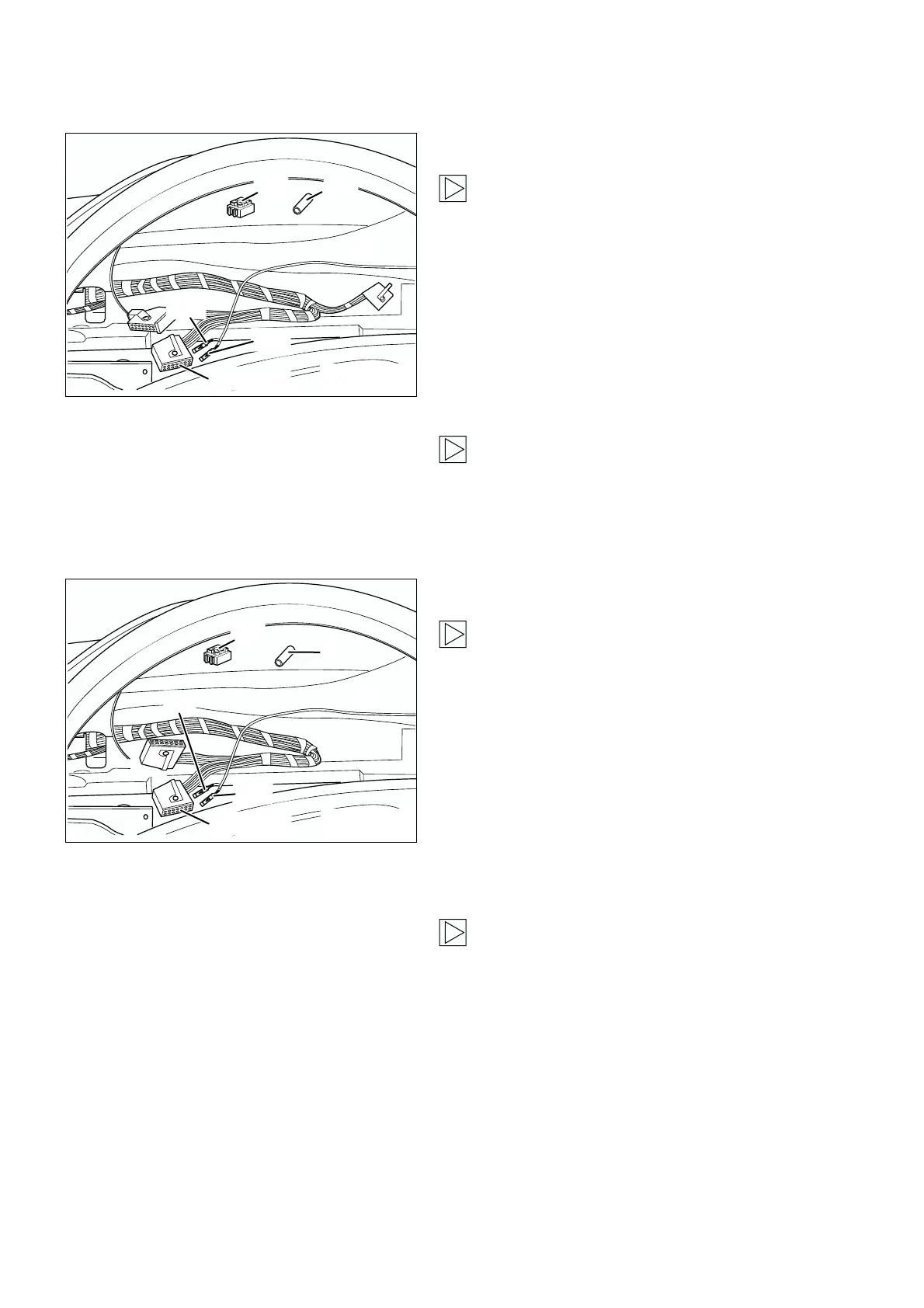

The figure shows installation location of the
instrument cluster.
Open and release the white 18-pin instrument
cluster connection plug X10113.
Connect branch A5, 1-pin socket contact, black/
white cable on the tacho A signal cable, to the free
slot PIN3 on the connection plug X10113.
Insulate and tie back branch A6, 1-pin socket
contact, white cable, with a shrink hose (11).Then
lock and close connection plug X10113 again.
If PIN3 is occupied, cut off branches A5+A6
and connect the tacho A signal cable, black/
white cable, to the black/white signal cable
using a insulation-piercing connector (3).
0
Cars with low instrument cluster only
The figure shows installation location of the
instrument cluster.
Open and release the white 26-pin instrument
cluster connection plug X11176.
Connect branch A6, 1-pin socket contact, white
cable on the tacho A signal cable, to the free slot
PIN14 on the connection plug X11176.
Insulate and tie back branch A5, 1-pin socket
contact, black/white cable, with a shrink hose (11).
Then lock and close connection plug X11176
again.
If PIN14 is occupied, cut off branches A5+A6
and connect the tacho A signal cable, black/
white cable, to the black/white signal cable
using a insulation-piercing connector (3).
11
3
X10113
A6
A5
039 0023 B
11
X11176
A6
A5
3
039 0024 B
