11© BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

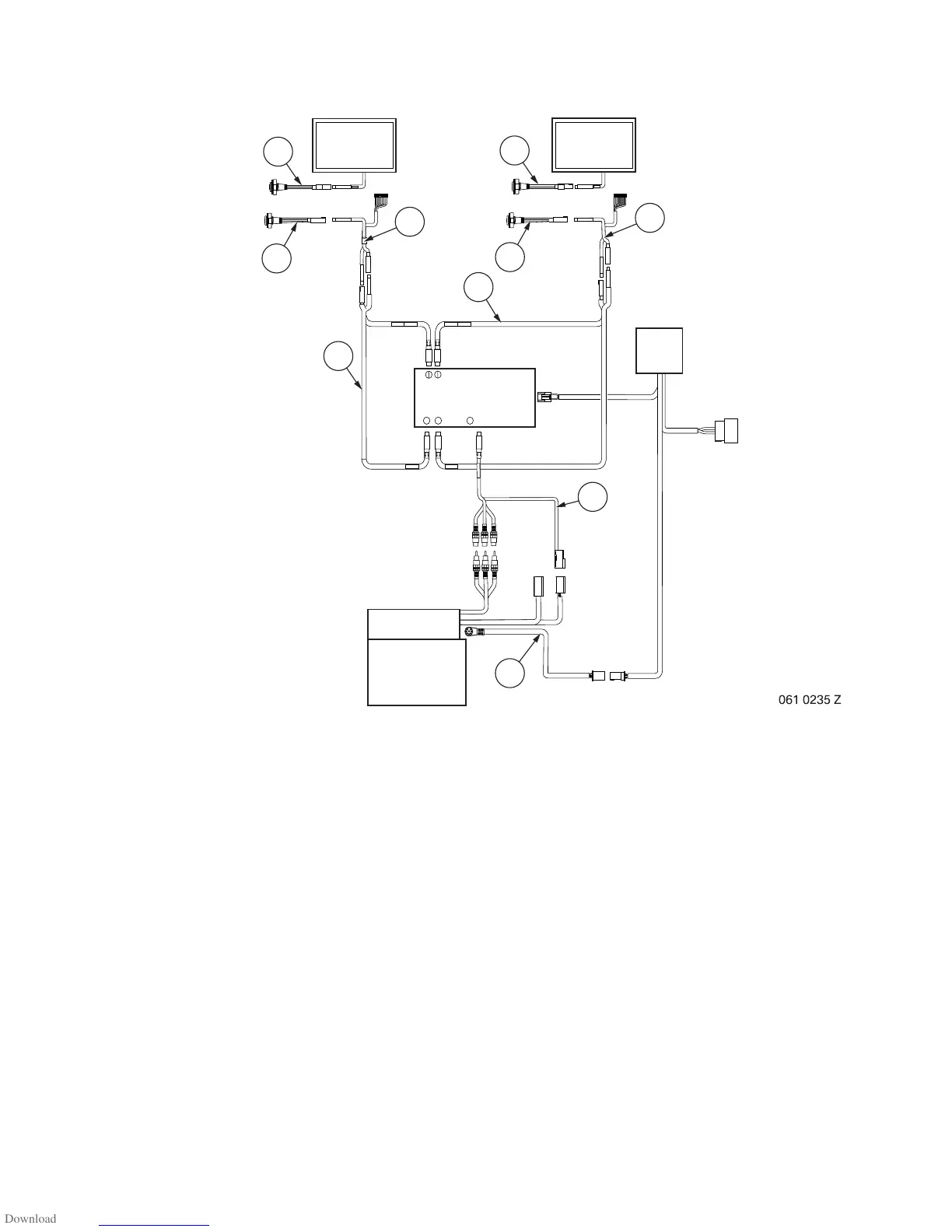

3. Connection diagram
F Seat wiring harness L Multimedia changer
F1 8-pin round plug, SW L1 Cinch plug, WS
F2 WS 10-pin plug L2 Cinch plug, RT
F3 8-pin round plug, SW L3 Cinch plug, GE
F4 8-pin round plug, SW L4 Black 4-pin plug
L5 Black 4-pin plug
G Auxiliary cable
G1 Auxiliary jack (2.5 mm) U AV switcher
G2 8-pin round plug, SW
AA Monitor
H Headphone cable AA1 8-pin round plug RT
H1 Headphone jack (3.5 mm)
H2 8-pin round plug RT
J Multimedia changer power supply
cable
J1 8-pin round plug, SW
J2 WS 3-pin plug
J
C
D
H
H
G
E
G
F
F
U
L
D3
E3
B2
L5
L1-L3
C3-C5
L4
C2
J2
J1
B3
B1
E2
E1
F3
F4
F1
F2
G2
AA1
AA1 H2
G1
G2
G1
H1
H2
H1
B
F2
F1
F3
D2
D1
F4
AA AA
D4
E4
C1
061 0235 Z
