1. Parts list

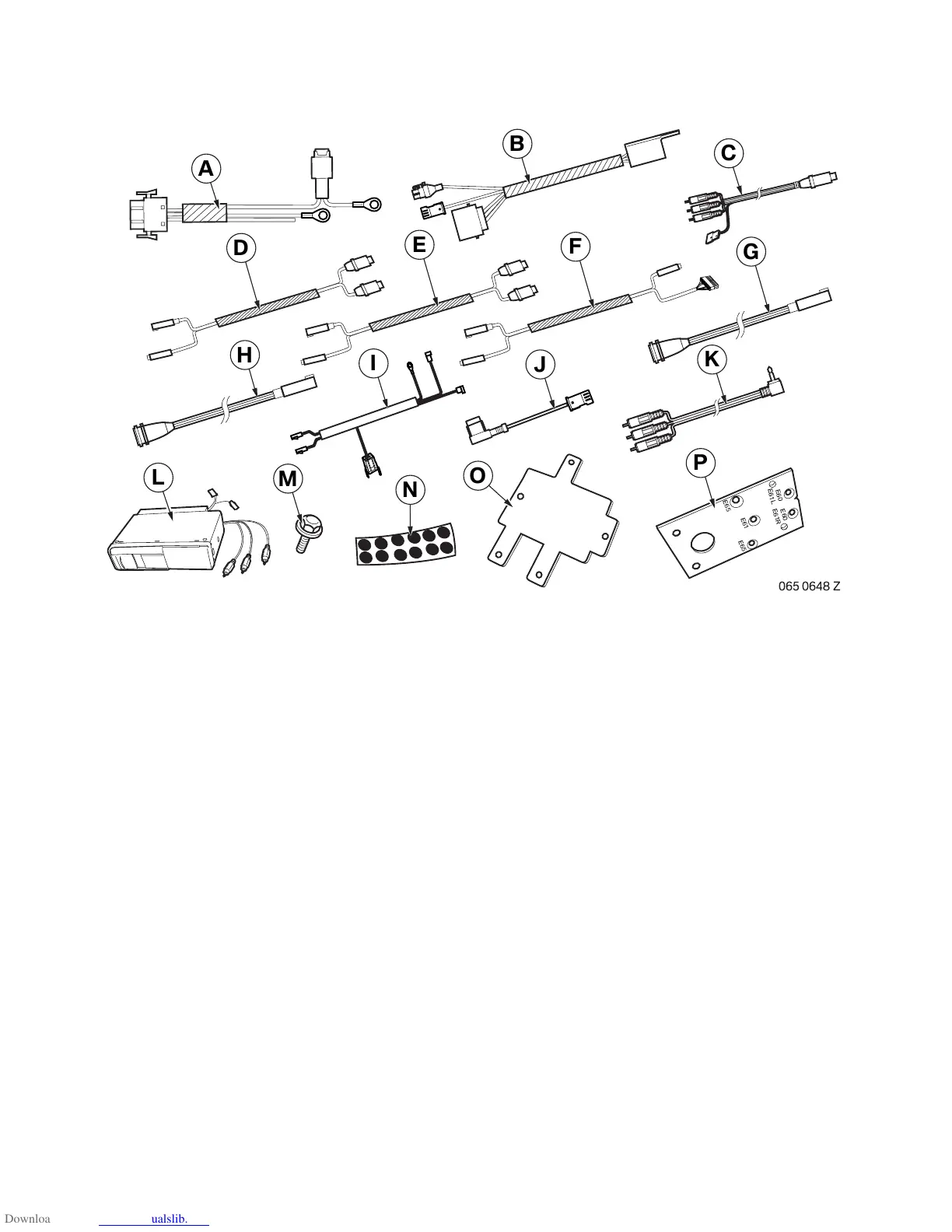

Legend
A
Connection cable
B
Voltage supply
C
Multimedia changer AV adapter
D
Connection wiring harness (left seat, length 5200 mm)
E
Connection wiring harness (right seat, length 6700 mm)
F
Seat wiring harness (2x)
G
Auxiliary cable (jack diameter 2.5 mm, 2x)
H
Headphone cable (jack diameter 3.5 mm, 2x)
I
Fan wiring harness
J
Multimedia changer power supply cable
K
Auxiliary adapter (2x)
L
Multimedia changer (not supplied with the retrofit kit)
M
Hexagonal screw M5 x 14 mm (not required)
N
Adhesive patches (supplied with the multimedia changer kit)
O
Mounting plate
P
Spacer plate (2x)
M
I
J
K
D
E
F
G
H
O
P
B
A
L
N
C
