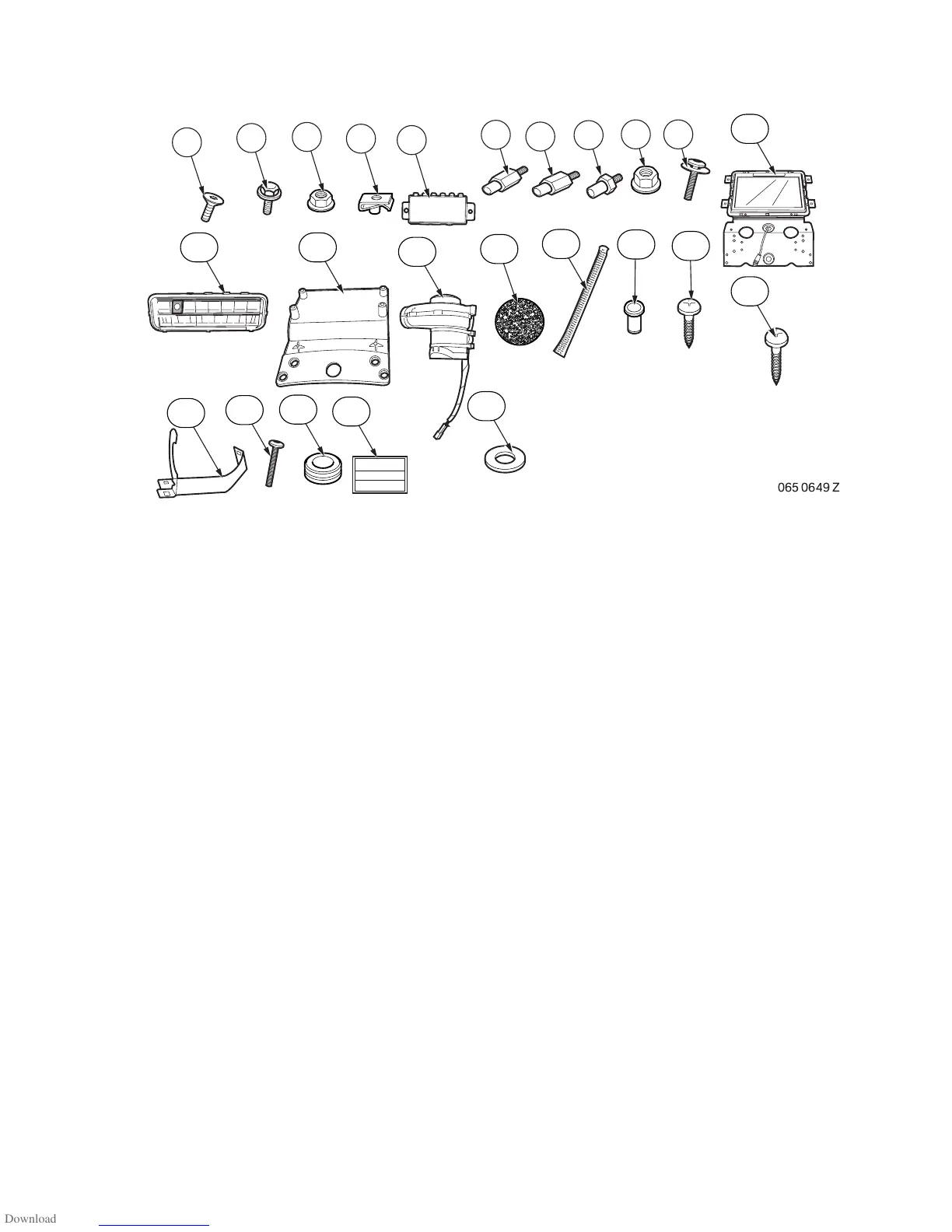

1. Parts list
Legend
Q Countersunk screw M5 x 12 mm (5x)
R Hexagonal screw M5 x 12 mm (15x)
S Hexagonal lock nut M5 (5x)
TSpeed nut M5 (9x)
UAV switcher
V Top spacer bolt 42 mm (4x)
W Top spacer bolt 39 mm (4x)
X Bottom spacer bolt 33 mm (4x)
Y Hexagonal nut with washer M6 (2x)
Z Torx bolt M5 x 14 mm (8x)
AA Monitor (not supplied with the retrofit kit)
AB Rear vent
AC Rear monitor trim (not supplied with the retrofit kit)
AD Radial fan
AE Filter
AF Fabric hose (4x)
AG Rivet nut M6 (8x)
AH Self-tapping screw 5 x 12 mm (4x)
AI Self-tapping screw 5 x 16 mm (not supplied with the retrofit kit)
AJ Holder
AK Fillister head screw M4 x 20 mm (2x)
AL Grommet (4x)
AM Information sticker
AN Washer A6 (20x)
AA
AB AC
AD
AF
AG
AH
AI
AE
V
W
X
R
S
T
Q
U
Y Z
AJ
AK
AL
AM
AN
