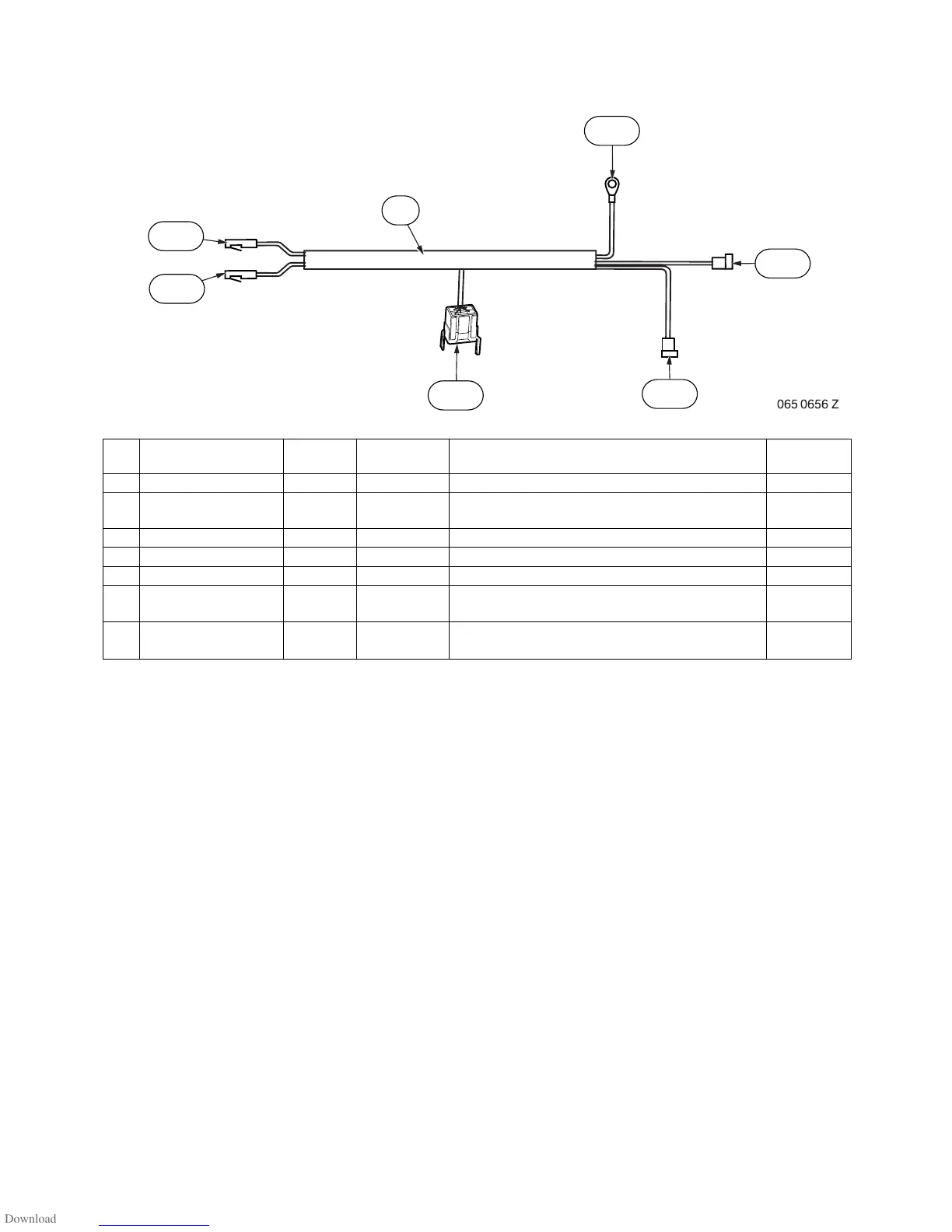

3. Connection diagram
Item Designation Signal Cable colour /
Cross-section
Connection location in the car Abbreviation
/ Slot
I Fan cable --- --- For cars without an additional fan in the boot only ---
I1 Cable eyelet A6 Terminal 31 BR/SW
0.75 mm²
To joint connector terminal 31 under the left tail light X13094
I2 3-pin SW socket casing To axial fan BD X2915
I3 4-pin SW socket casing To radial fan AD X14322
I4 Relay socket --- --- --- ---
I5 Socket contact Terminal 30 RT/BL
0.5 mm
2
To the rear fuse holder,
5-pin SW socket casing
X4844
PIN 1
I6 Socket contact Terminal R GE/RT
0.5 mm
2
To powe r m od u le ,
SW 32-pin plug
X1856
PIN 18
I
I3
I4
I2
I1
I5
I6
065 0656 Z
