Oscilloscope
If�there�are�no�terminating�resistors�in�a�CAN�bus�or�they�are�faulty,�this�may�lead�to�reflections�or
faults.�These�reflections�or�faults�are�shown�in�the�following�graphic:

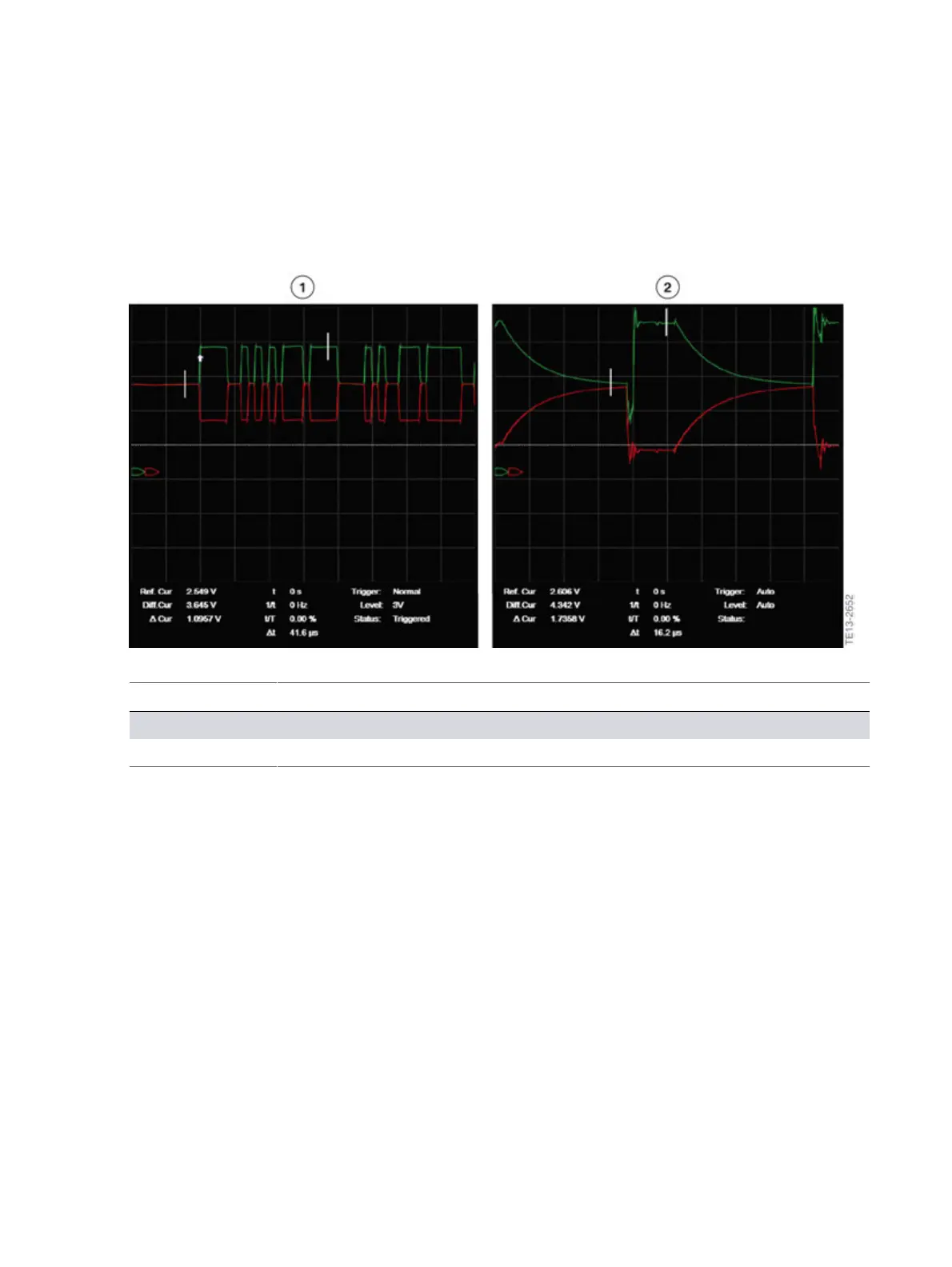

Oscilloscope�holder�K-CAN
Index Explanation
1 Oscilloscope�holder�with�active�CAN�terminator
2 Oscilloscope�holder�with�disconnected�or�faulty�CAN�terminator
