BMW F48 - CAN Terminator Installation Locations; PT-CAN Bus System

F48�General�Vehicle�Electronics
1.�Vehicle�Electrical�System
8
Installation�location
Depending�on�the�equipment�package,�a�maximum�of�four�CAN�terminators�are�installed�in�the�F48.

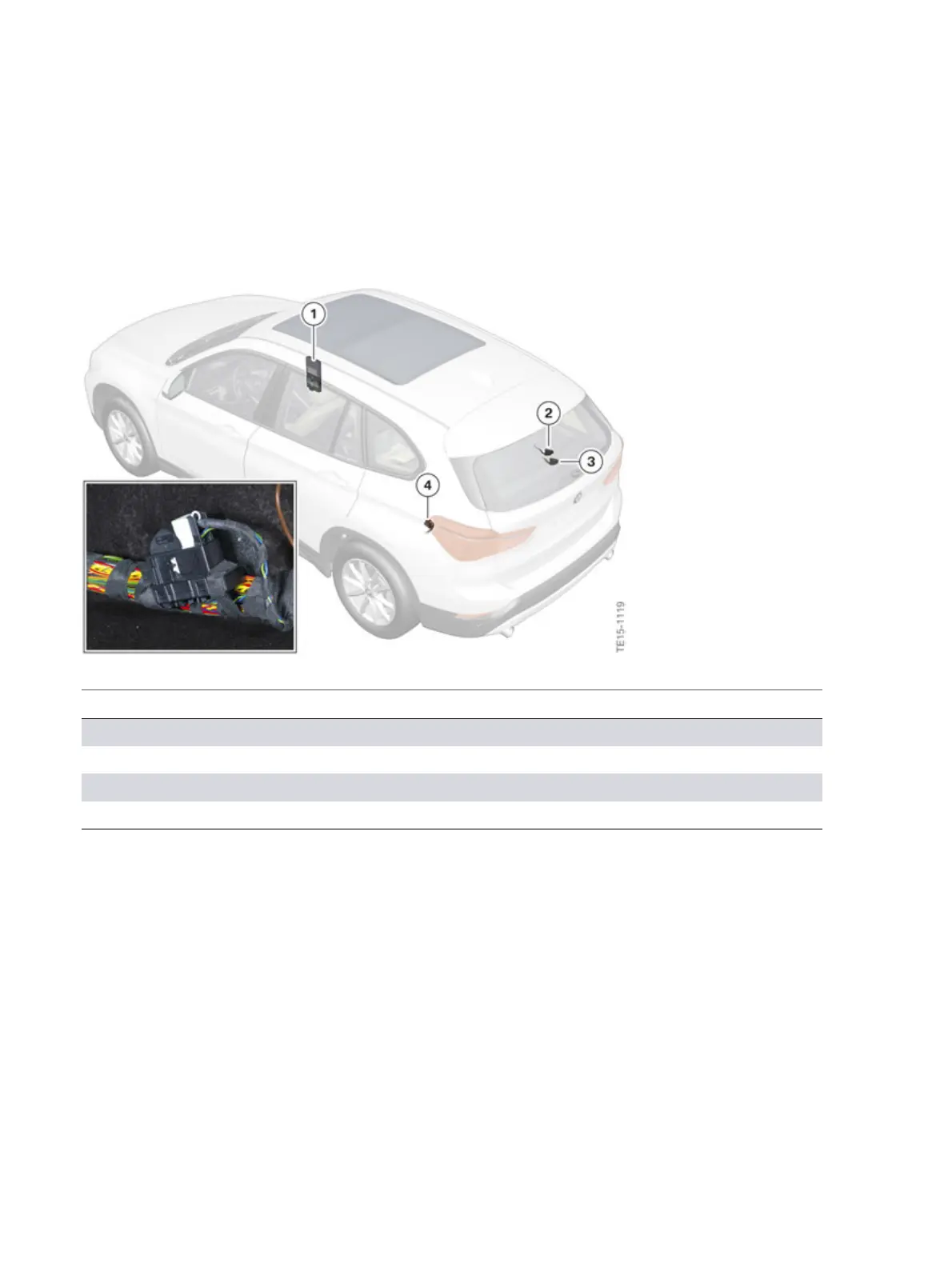

The�installation�locations�are�shown�in�the�following�graphic:
F48�installation�location�of�CAN�terminators
Index Explanation
1 CAN�terminator�integrated�in�the�Body�Domain�Controller
2 K-CAN3�terminator,�rear�right
3 K-CAN2�terminator,�rear�right
4 K-CAN4�terminator,�rear�left
1.2.2.�PT-CAN
In�the�F48�the�following�PT-CANs�are�used:
• PT-CAN
• PT-CAN2
