BMW F48 - Control Unit Installation Locations

F48�General�Vehicle�Electronics
1.�Vehicle�Electrical�System
15
1.4.�Control�units
This�chapter�contains�information�on�control�units,
• which�are�used�for�the�first�time�in�the�F48
• which�have�been�adapted�for�the�F48
1.4.1.�Complete�overview

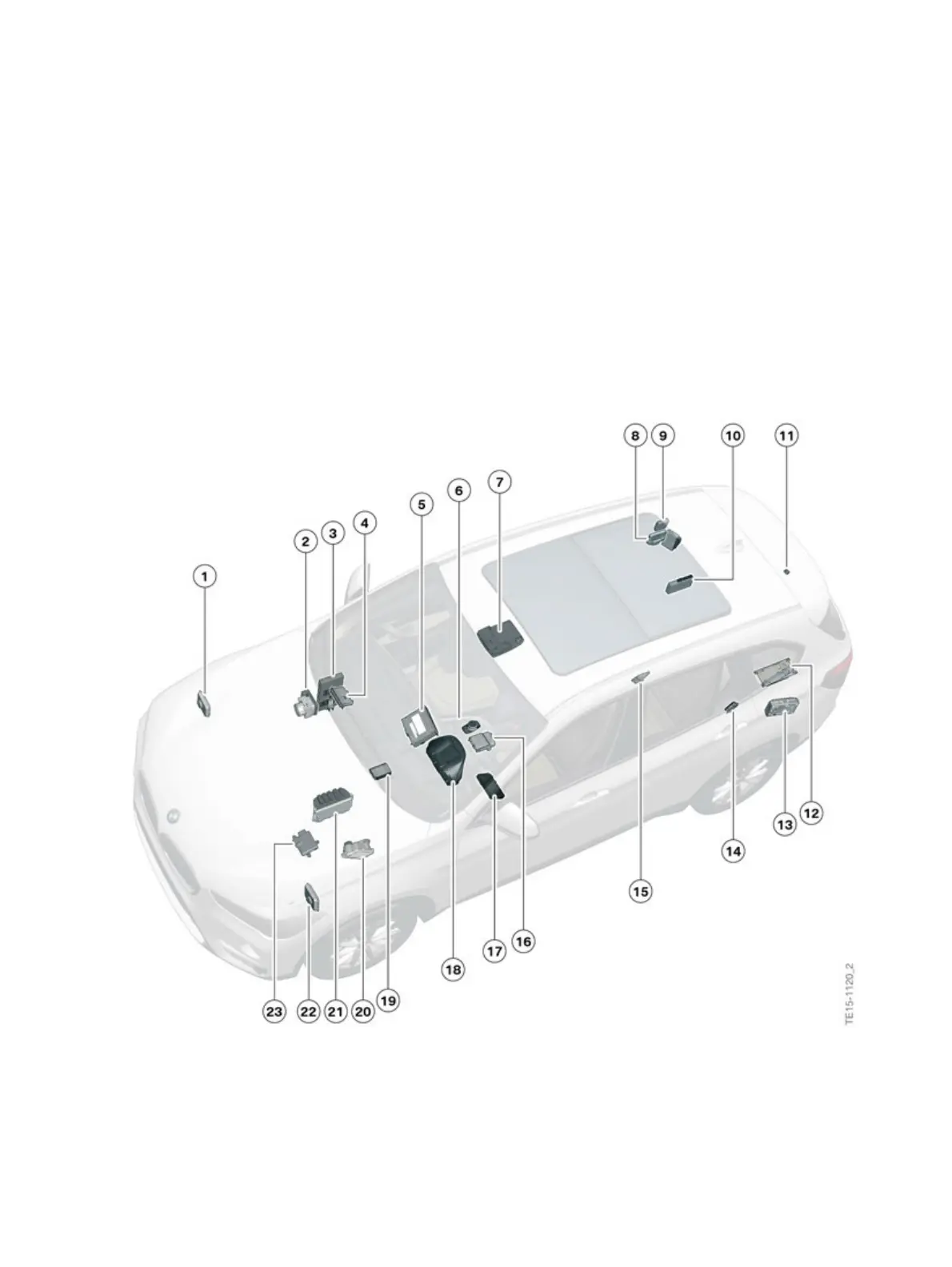

The�installation�locations�of�all�the�control�units�are�shown�in�the�following�graphic.
F48�Installation�location�of�the�control�units
