G12�Driver�Assistance�Systems
15.�Cameras
81

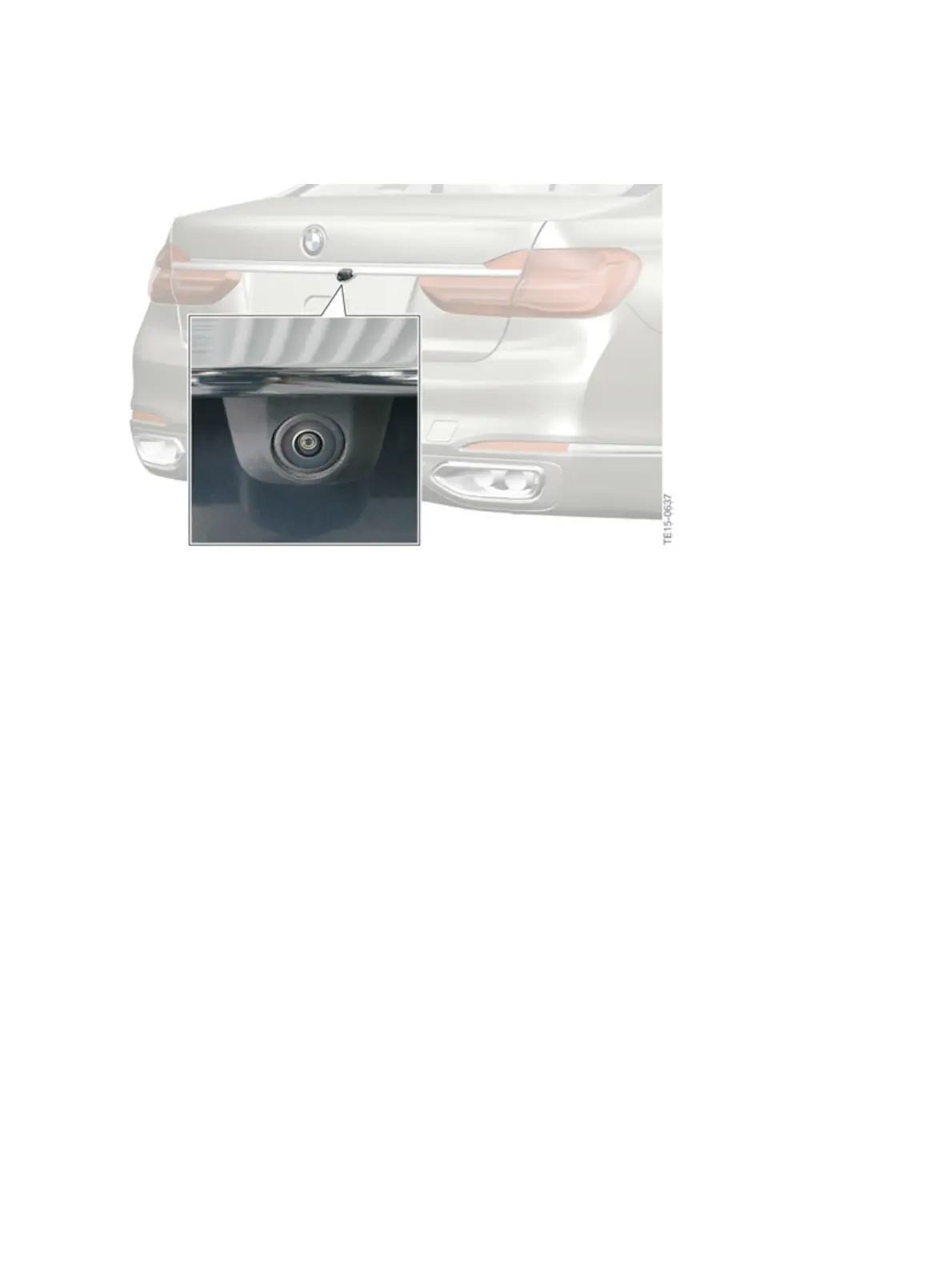

G12�rear�view�camera
The�control�unit�is�integrated�in�the�rear�view�camera�and�is�the�bus�user�at�K-CAN3.�The�video�signals
are�transmitted�directly�to�the�Head�Unit�High�2�(HU-H2)�via�a�CVBS�line.�An�Ethernet�connection�for
the�rear�view�camera�(on�non�5DL�cars)�is�being�planned�for�a�later�version.
In�vehicles�with�the�Surround�View�optional�equipment�(OE�5DL)�a�rear�view�camera�without�an
integrated�control�unit�is�installed.�The�reversing�camera�is�connected�to�the�TRSVC�control�unit�via
Ethernet�in�vehicles�with�Surround�View�(SA�5DL).
15.4.2.�TRSVC�control�unit
The�exterior�cameras�record�the�area�around�the�vehicle�from�various�angles�and�send�this�information
to�the�TRSVC�control�unit�via�Ethernet.�The�video�signals�are�transmitted�from�the�TRSVC�control
unit�to�the�head�unit�via�an�Ethernet�line.�The�head�unit�transmits�the�signals�to�the�central�information
display�via�an�Automotive�Pixel�Link�line.
The�installation�location�of�the�TRSVC�control�unit�is�in�the�footwell�on�the�driver's�side.
