DI Diesel Engines M57/M67 - Common Rail Sec. 2 P.7
Course contents/Background material
M67-specific features
• Inlet port configuration (1 swirl/1 tangential port),
twin-port arrangement
2
1
4
3
1 - Exhaust ports
2 - Swirl port (inlet)
3 - Tangential port (inlet)
4 - Glow (heater) plug

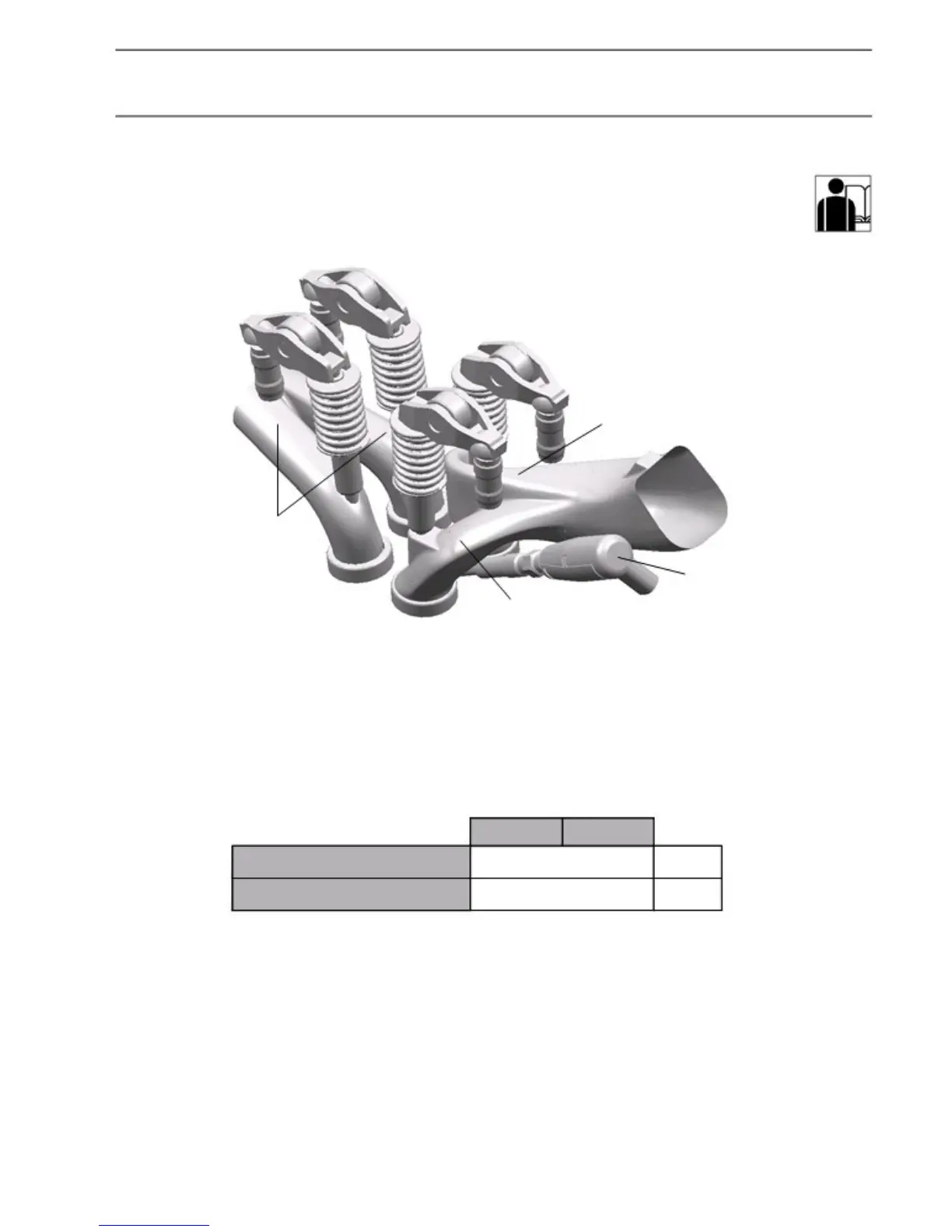

Fig. 16: Inlet port configuration - view M67 with twin port
Technical data:
M57
V-angle Inlet valves 3.75
Exhaust valves 3.0
