Oil filter with oil-to-water heat exchanger M67 E38
• Mounted directly in V-area of cylinder block
• Oil-to-water heat exchanger located in water bath of V-area
2
1
3
1 - Oil filter housing with filter element
2 - Oil pressure sensor
3 - Oil-to-water heat exchanger
KT-3676

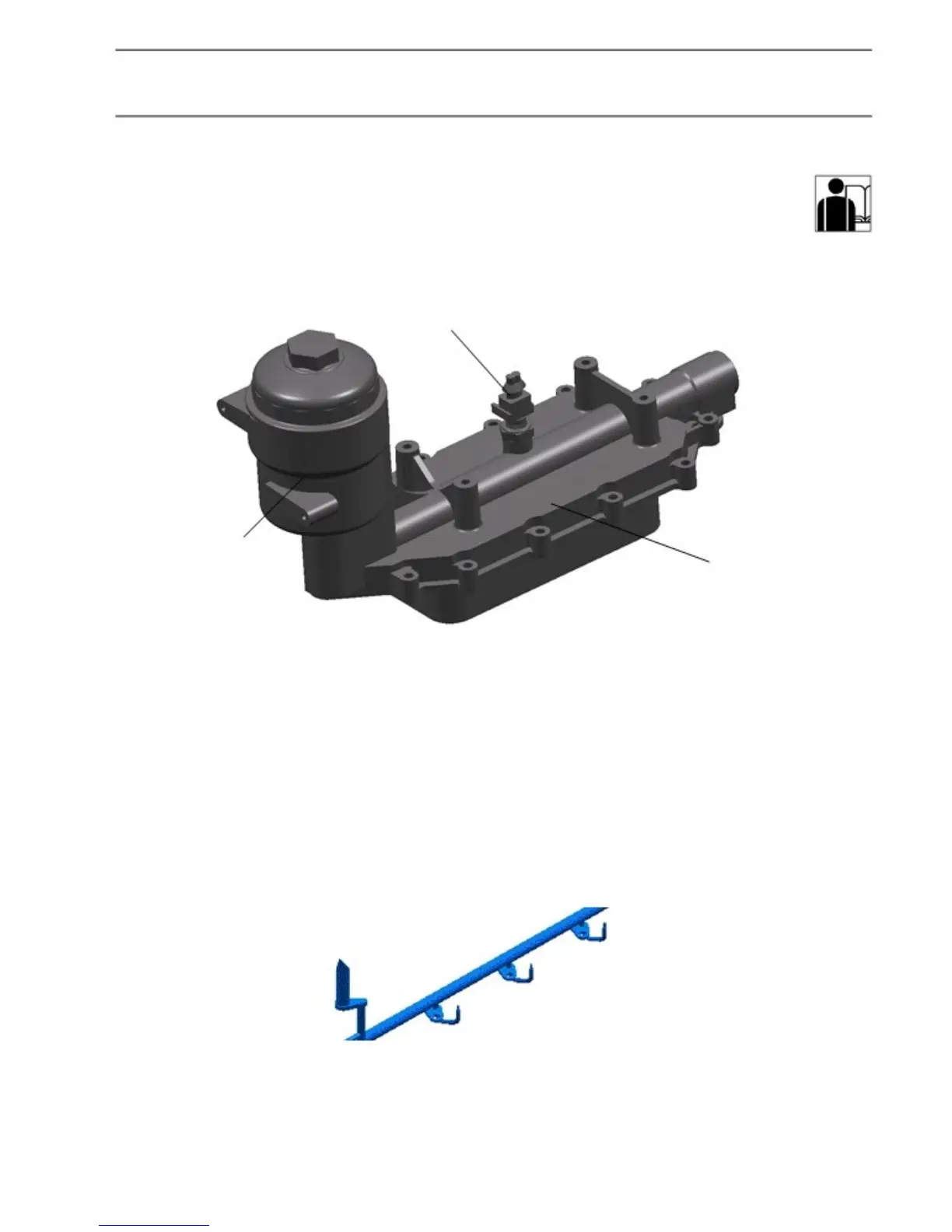

Fig. 41: Oil module M67 E38 (with oil-to-water heat exchanger)
Oil spray nozzles
The oil spray nozzles for cooling the piston crown are mounted
in the engine block. They are designed as hook-type nozzles.
KT-3847
Fig. 42: Oil spray nozzles
