DI Diesel Engines M57/M67 - Common Rail Sec. 2 P.9
Course contents/Background material
M67-specific features
• Aluminium casing
• Integrated oil separator,
preliminary separation by means of cyclone separator,
fine separation with threaded winding downstream
4 1
5
6
6
2 3
Forward direction
1 - Cylinder head cover
2 - Preliminary separator (cyclone)
3 - Fine separator (threaded winding)
4 - Pressure control valve
5 - Oil filler neck
6 - To clean air line
KT-3706

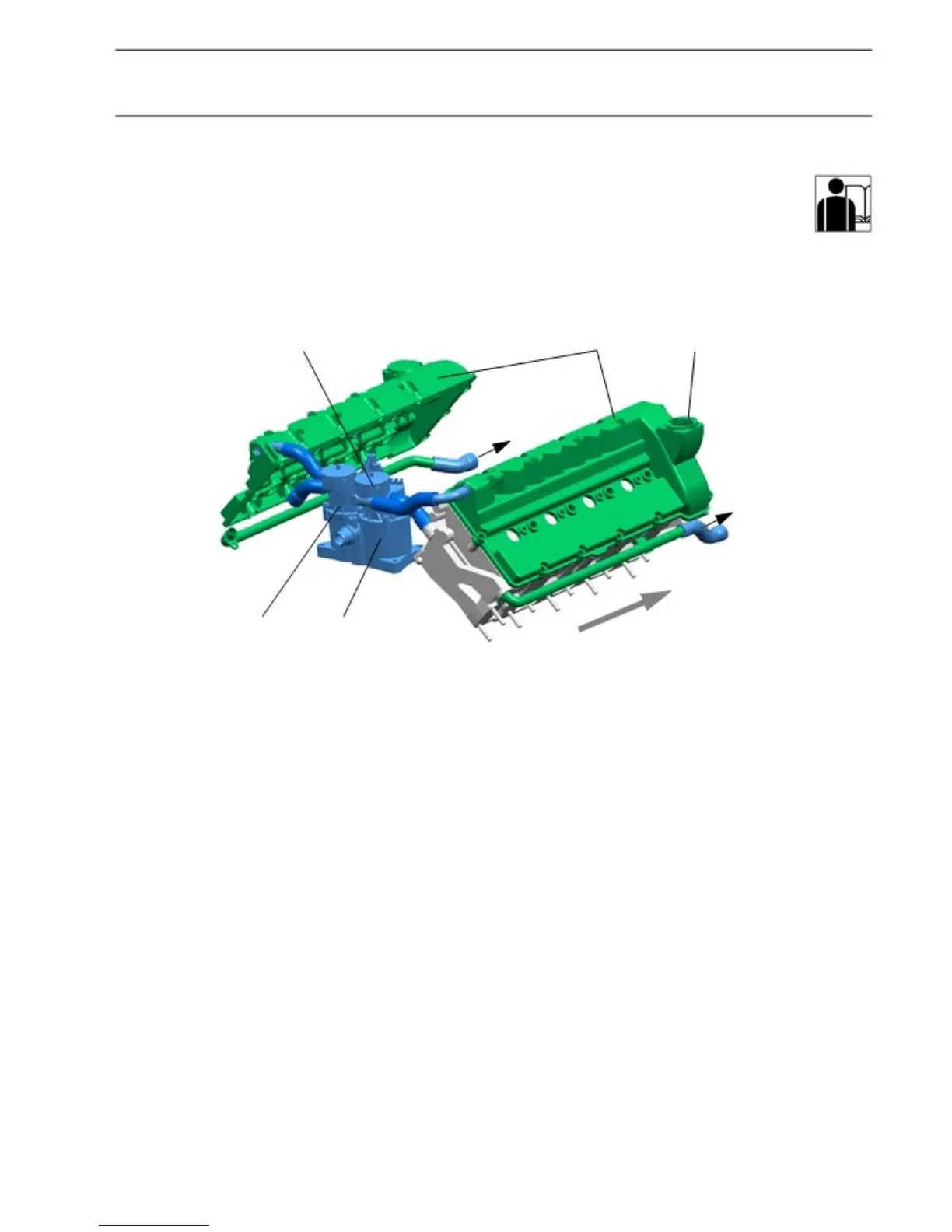

Fig. 18: Intake module - M67
© BMW AG, Service Training
