DI Diesel Engines M57/M67 - Common Rail Sec. 2 P.3
Course contents/Background material
M67-specific features
• Cast starter flange on both sides, cast timing case
• Integrated water flow control to water pump
• Oil supply gallery for oil spray nozzles with central pressure
control valve
• Piston spray nozzles each with two spray openings
4 3
5
Forward direction
3
2
1
6
1 - Oil return
2 - Coolant ducts
3 - Timing case cover (cast)
4 - Coolant return, integrated collection duct
5 - Space for oil-to-water heat exchanger directly in water pump feed
6 -
Starter flange (LHD or RHD)
KT-3713

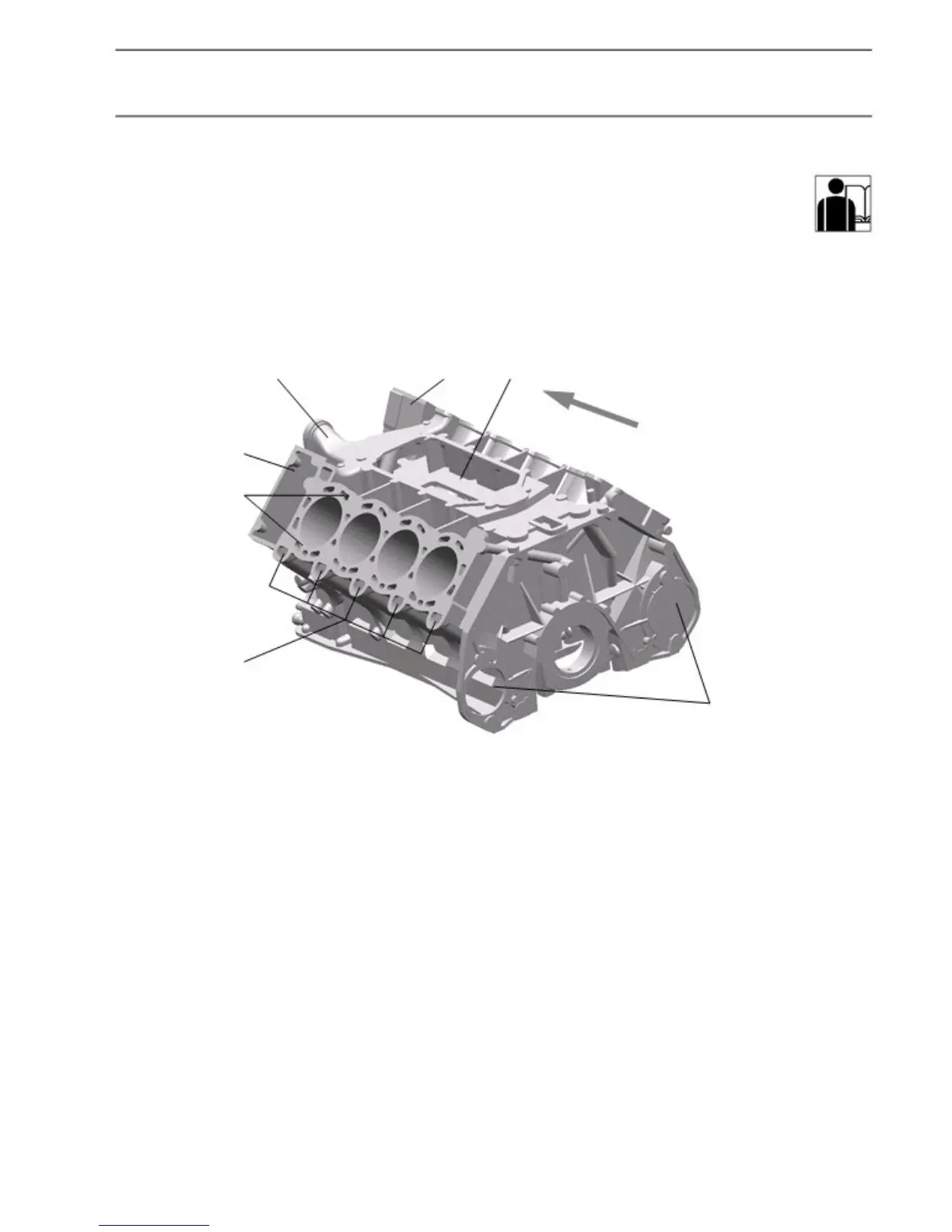

Fig. 12: Engine block - view M67
© BMW AG, Service Training
