DI Diesel Engines M57/M67 - Common Rail Sec. 4 P.2
Course contents/Background material
System structure
The system consists of:
• Two hydraulic mounts with controlled damping characteristics
• One electric changeover valve
• The control unit (DDE)
• Various electrical and pneumatic lines
KT-172

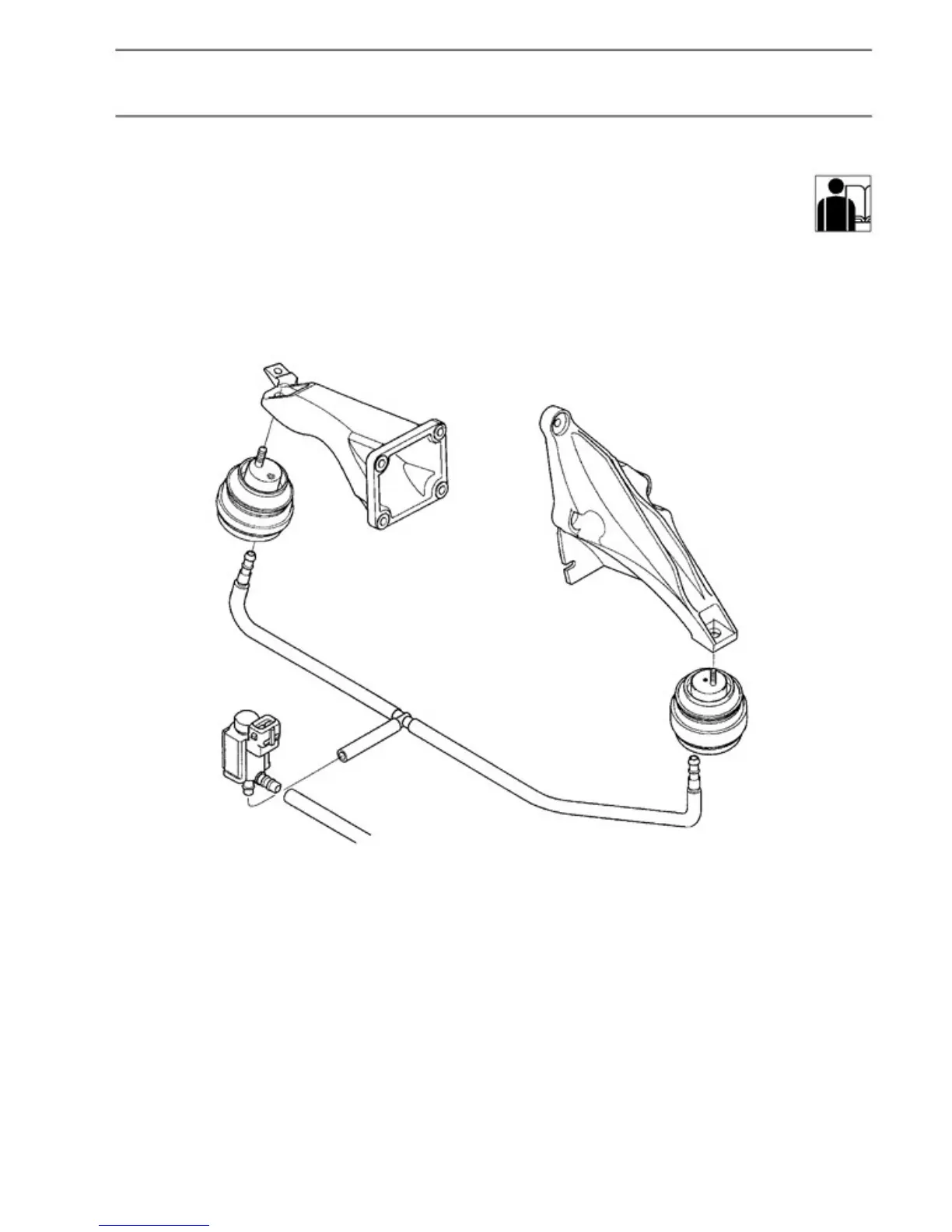

Fig. 32: System layout
© BMW AG, Service Training
