DI Diesel Engines M57/M67 - Common Rail Sec. 2 P.13
Course contents/Background material
M67-specific features
• Material 42 CrMo 4, nitrocarburized
• Shaft cranked at two levels (similar to M62)
• Main bearing, common part with M62
• Thrust bearing with integrated bearing, arranged on flywheel
end of main bearing
2
1
4
3
Forward direction
5

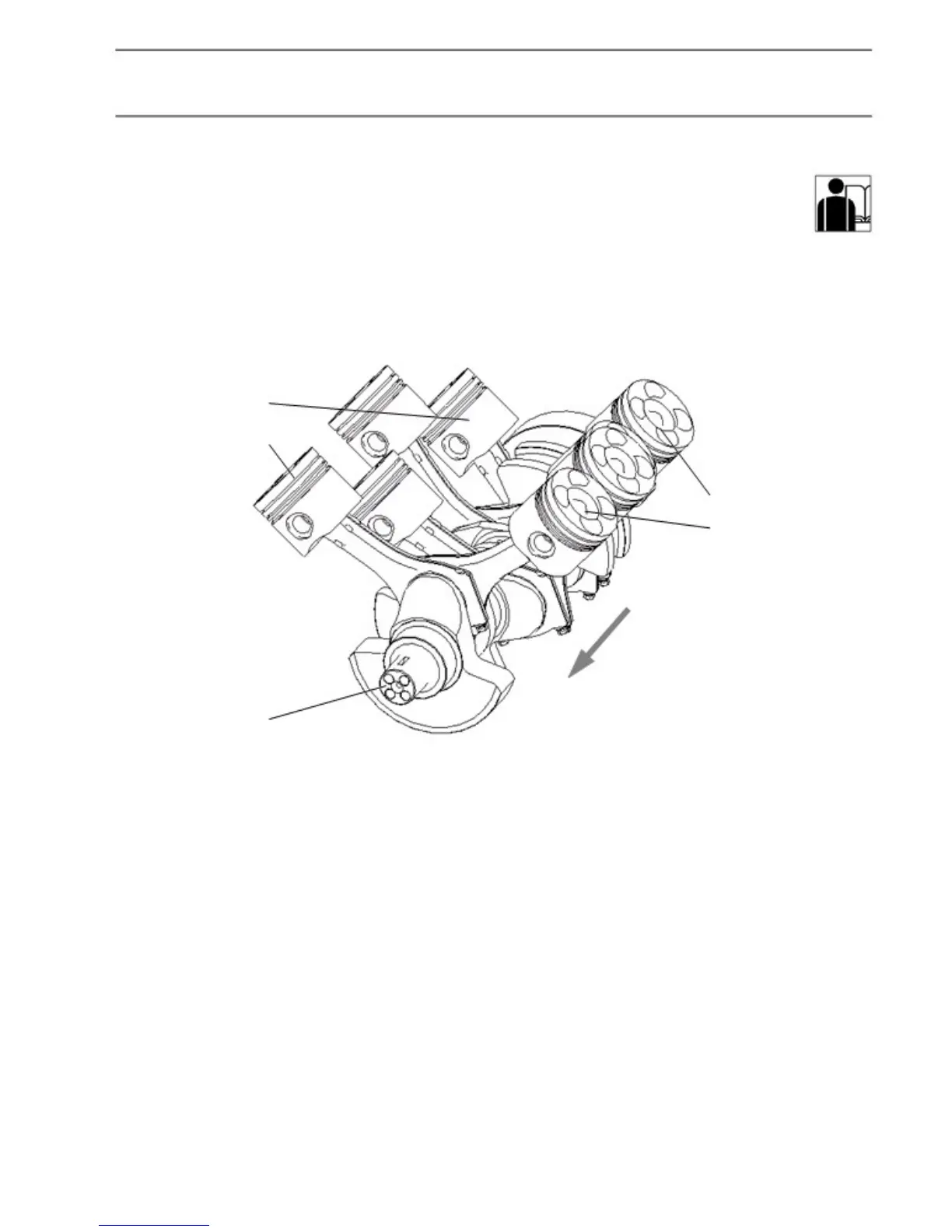

1 - Cylinder 1
2 - Cylinder 4
3 - Cylinder 5
4 - Cylinder 8
5 - Connection for torsional vibration damper
KT-3680
Fig. 21: Crankshaft drive - view M67
© BMW AG, Service Training
