DI Diesel Engines M57/M67 - Common Rail

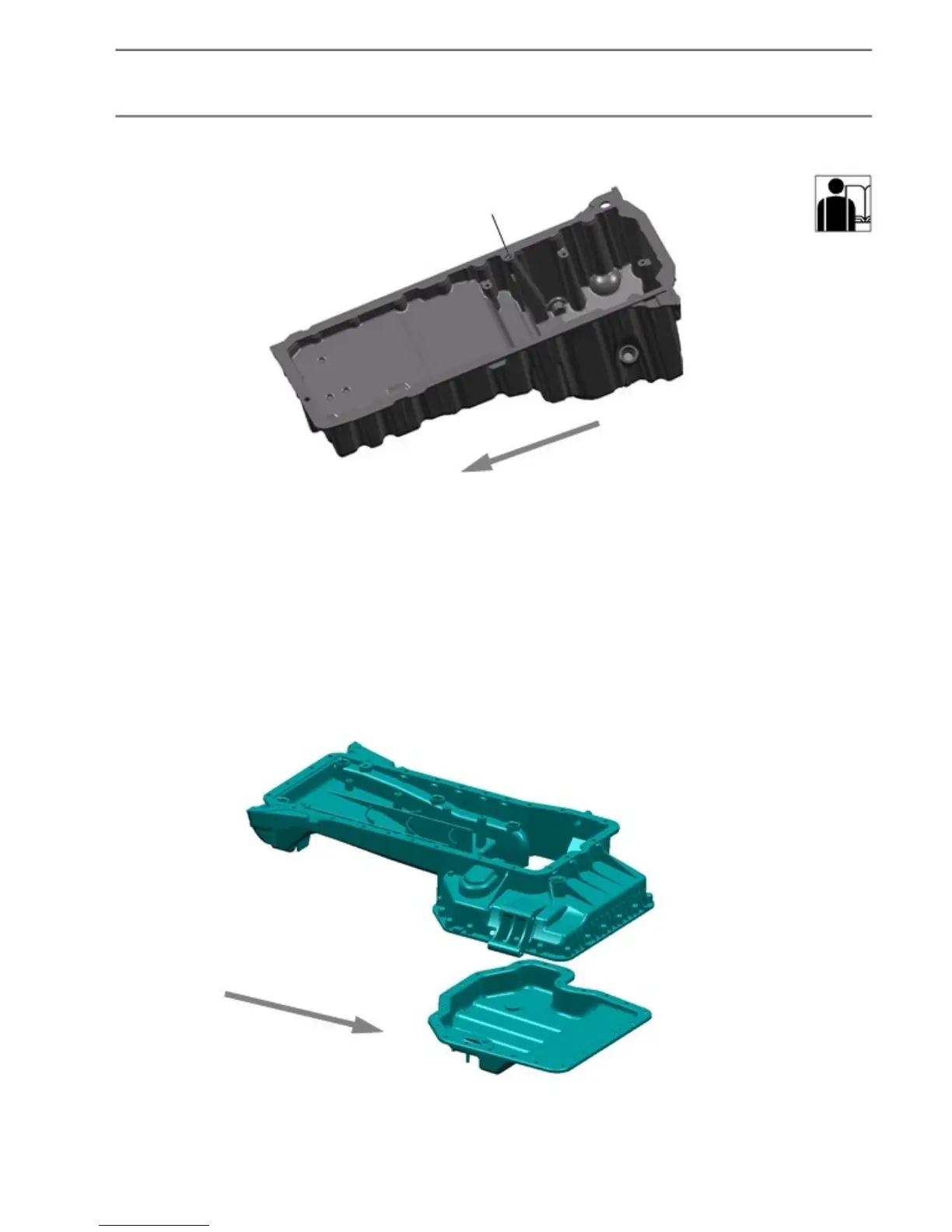

Fig. 27: Oil pan - M57 in E39
M67-specific features
• Two-piece casing
Sec. 2 P.21
Course contents/Background material
Forward direction
KT-3709
• Upper section made of pressure die cast aluminium with
integrated thermal oil level sensor, sheet metal bottom section
(common part with M62)
• Oil pan gasket designed as sheet metal backed gasket,
gasket of bottom section of oil pan common part with M62
Forward direction
KT-3711
Fig. 28: Oil pan - M67 in E38
