61 13 Removing and installing central
electrical equipment box
e Attention:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove the seat.
•
Remove rear side panels.
•
Remove screws (1) securing top of central elec-
trical equipment box.
•
Remove screws (2) securing bottom of central
electrical equipment box.
•
Pull cable tray down and remove.
•
Remove relay and relay base or if necessary, dis-
connect entire wiring harness and remove com-
plete with fuse box.
•
Installation is the reverse of the removal proce-
dure.
•
After installation, shorten the middle rubber lug
of the anti-spray fastener (arrow) to
10 mm (0.3937 in).
•
Switch on the ignition.
•
Without starting the engine, fully open the throttle
once or twice so that the Motronic control unit
can register the throttle-valve positions.
L Note:
Disconnecting the battery deletes all entries (e.g.
faults, settings) stored in the Motronic control unit’s
memory.
Loss of settings can temporarily impair the operat-
ing characteristics when the engine is restarted.
61 13
Disassembling/assembling cen-
tral electrical equipment box
•

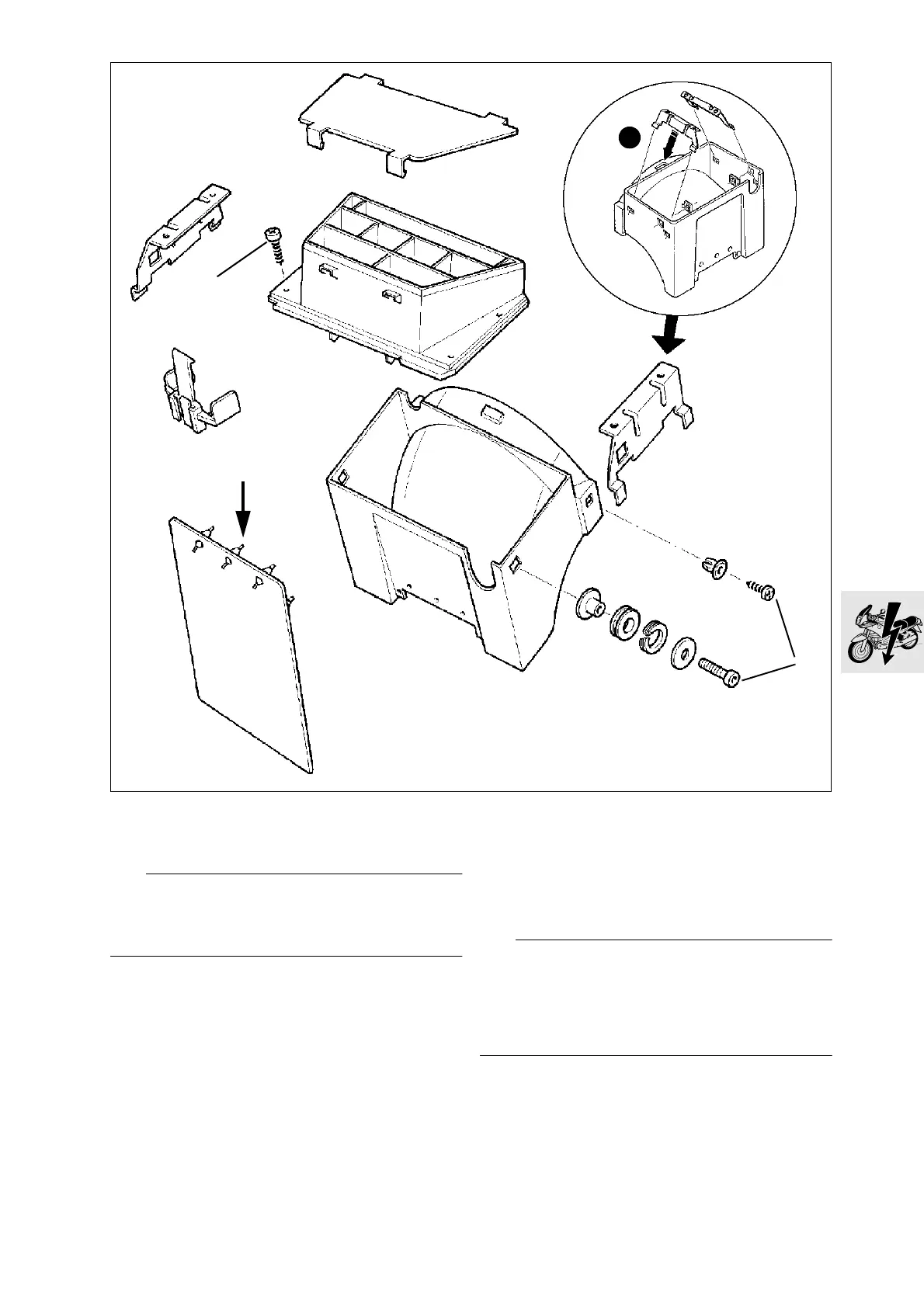

See illustration (3).
2
3
1
RS610062
