BMW R 1250GS Adventure User Manual

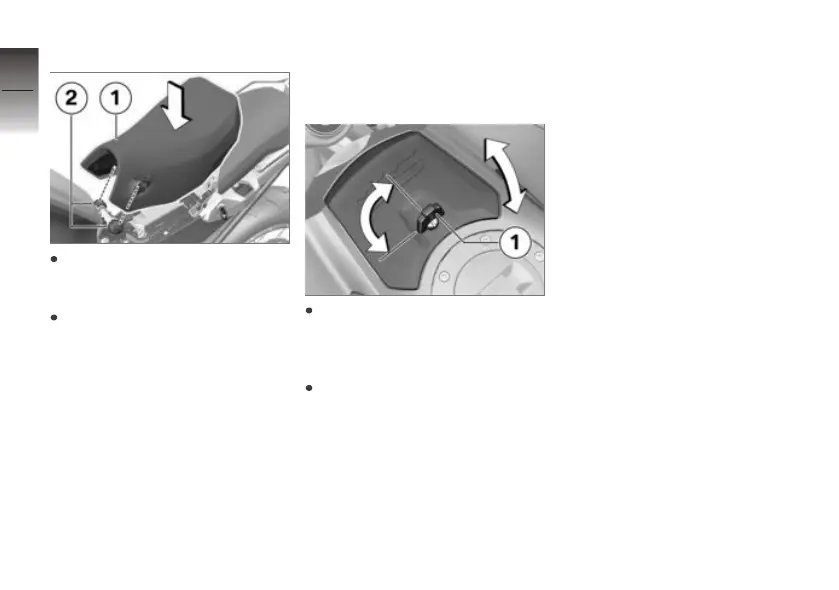

Install rider's seat
Fit front seat 1 into seat
mount 2 on left and right and
place loosely on motorcycle.
Press rider's seat slightly for-
ward in rear area and then
firmly downward until locking
mechanism engages.
Storage compartment
Opening and locking the
storage compartment
To open the storage com-
partment 1, turn the handle
through 90° in a counter-clock-
wise direction and pull it up.
To lock the storage
compartment 1, close the
storage compartment, turn
the handle through 90° in a
clockwise direction, and fold it
onto the storage compartment
in the driving direction.
4
92
z Operation

BMW R 1250GS Adventure Specifications

General

Displacement	1, 254 cc
Front Suspension	BMW Motorrad Telelever; stanchion diameter 37 mm, central spring strut
Tire, Front	120/70 R19
Tire, Rear	170/60 R17
Bore x Stroke	102.5 mm x 76 mm
Compression Ratio	12.5:1
Fuel System	Electronic fuel injection
Max Power	136 hp at 7, 750 rpm
Max Torque	143 Nm at 6, 250 rpm
Transmission	6-speed
Fuel Capacity	30 liters
Seat Height	890 / 910 mm (adjustable)
Curb Weight	268 kg
Rear Suspension	BMW Motorrad Paralever; cast aluminum single-sided swing arm with WAD strut (weight-related damping)
Fuel consumption	4.75 l/100 km
Fuel type	Premium unleaded
Front Brake	Dual 305 mm discs, 4-piston calipers
Rear Brake	Single disc brake, diameter 276 mm, 2-piston floating caliper
ABS	BMW Motorrad Integral ABS
Length	2, 270 mm
Width	980 mm
Dry Weight	249 kg (549 lbs)
Clutch	Wet clutch with anti-hopping function, hydraulically actuated
Frame	Two-section frame
Engine Type	Air/liquid-cooled flat twin (Boxer)
