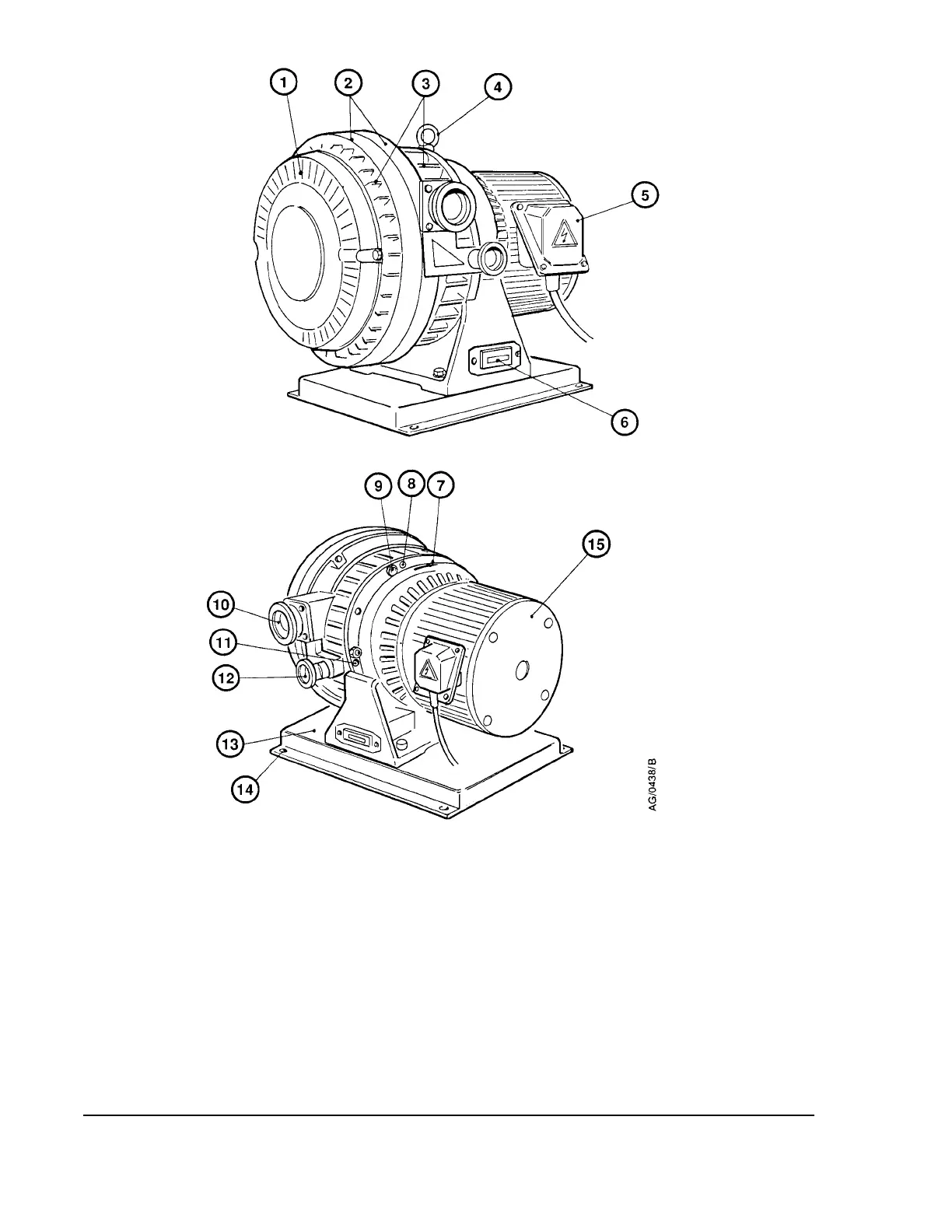

Figure 2 - The ESDP30 pump (3-phase pump shown)
1. Fan cover
2. Stationary scrolls
3. Cooling-fins
4. Lifting-eye
5. Motor terminal-box
6. Hours counter
7. Direction of rotation arrow
8. Locating dowels
9. Coupling-cover bolts (6 off)
10. Inlet and inlet screen (in the inlet)
11. Jacking hole
12. Outlet
13. Base-plate
14. Mounting-holes (4 off)
15. Motor end-cover
