BOC Edwards ESDP12 - The ESDP12 Pump

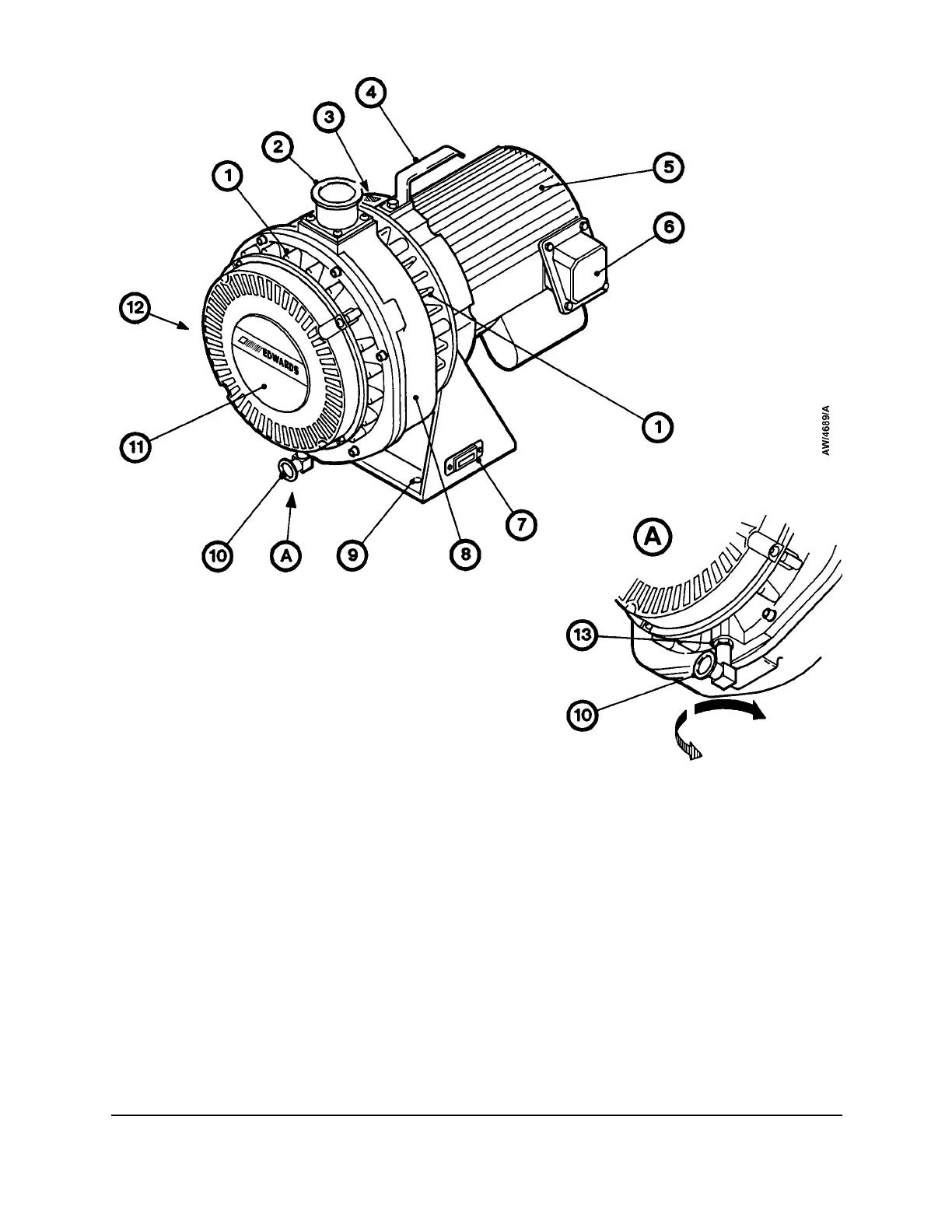

Figure 1 - The ESDP12 pump
1. Cooling-fins
2. Inlet
3. Direction of rotation arrow
4. Lifting-handle
5. Pump-motor
6. Motor terminal-box
7. Hours counter
8. Stationary scrolls
9. Mounting-holes (4 off)
10. Outlet
11. Fan cover
12. Rating plate
13. Locknut
ESDP12 and ESDP30 Scroll Pumps 3
