BLT520H Product Manual
7
4.1 TubePro Bus system
TubePro
Master
station
Slave Station
HyPanel
BCS210E
Power
supply 220V
AC

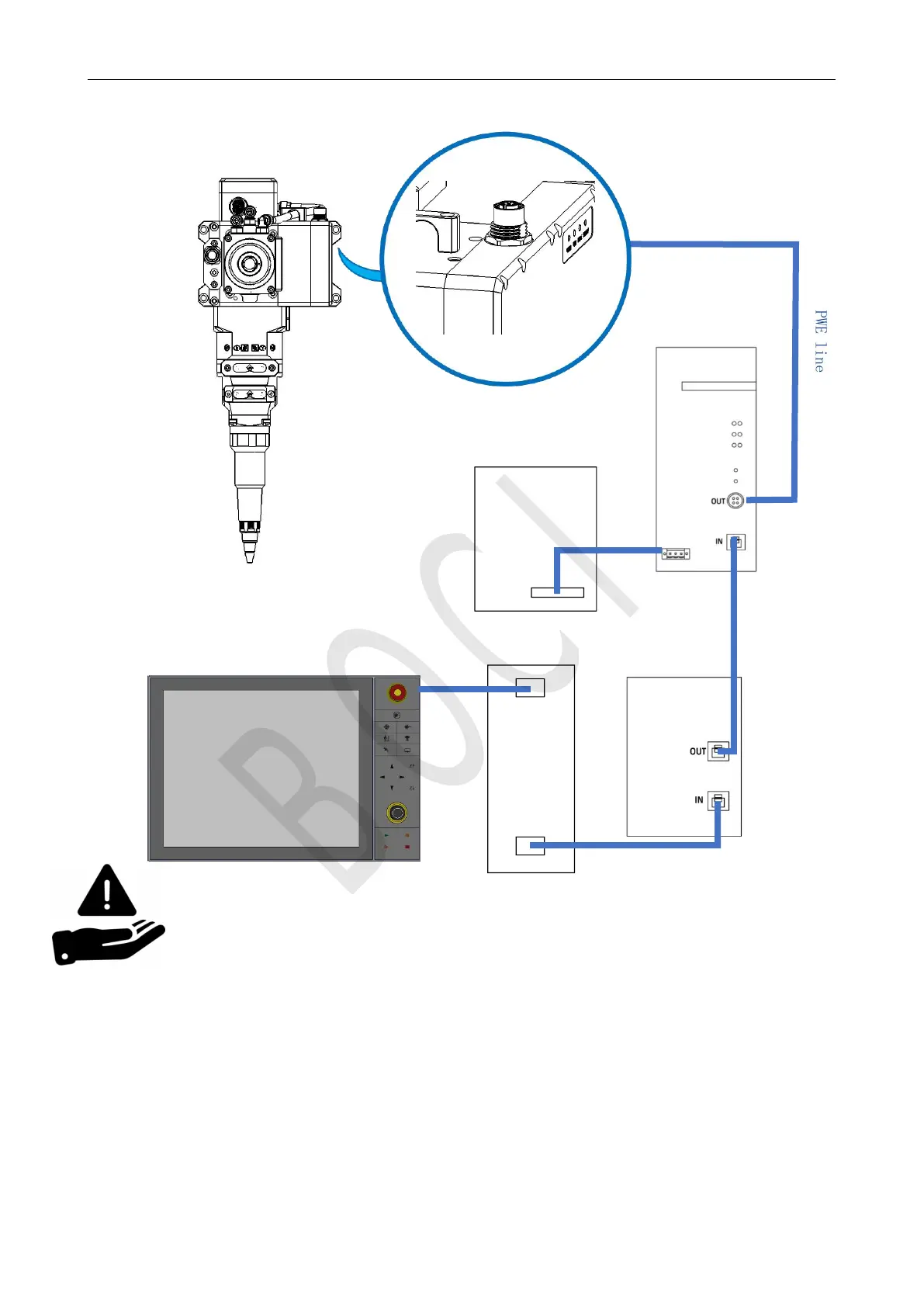

BLT520H cutting head installation
wiring diagram

Notice:
 The above wiring operations should only be performed by
trained and professional personnel.

When the cutting head is connected to the BCS210E, the
BCS210E must be powered off.
