BOCI BLT520H - Mount the Cutting Head on the Backplane

BLT520H Product Manual
12

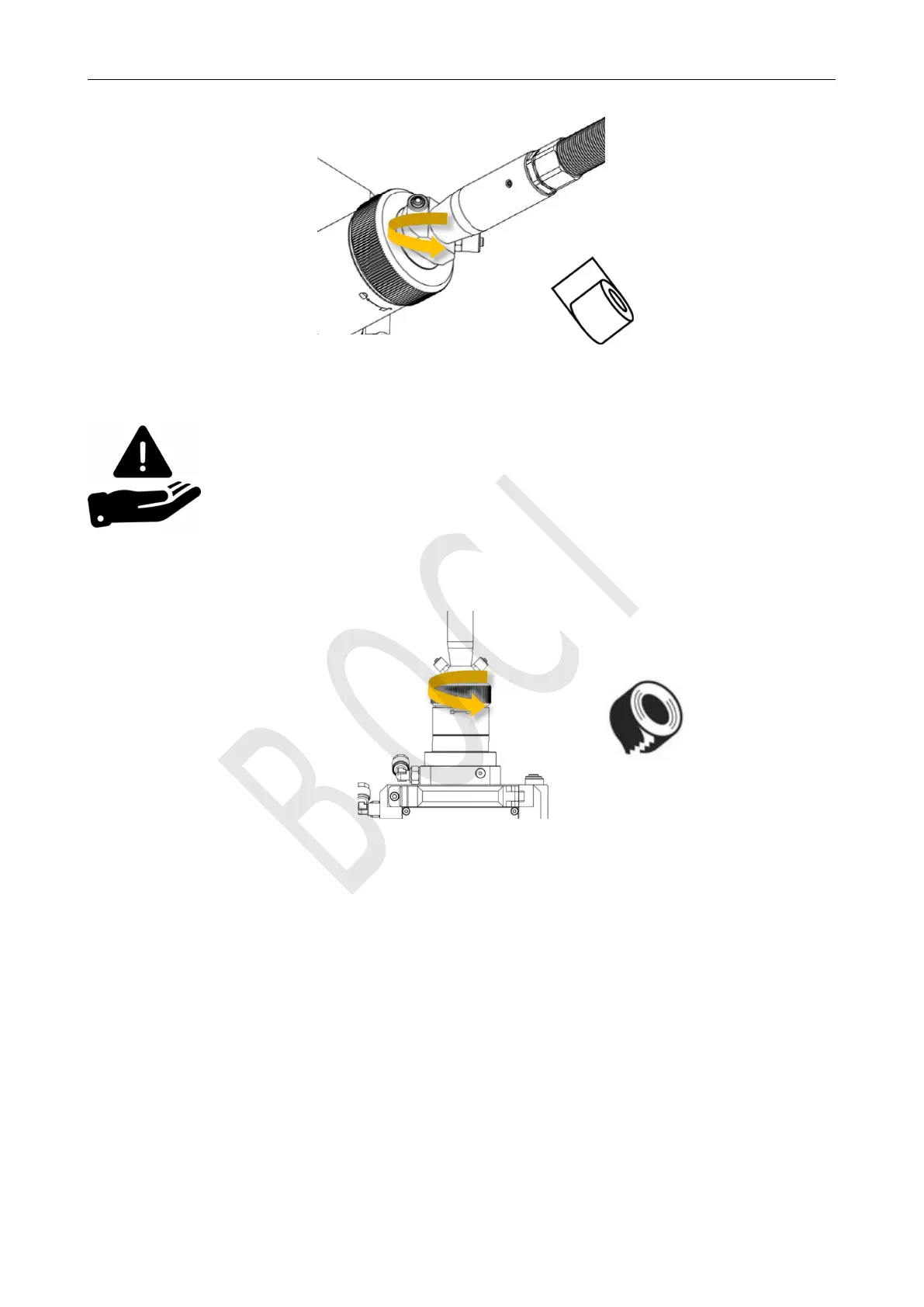

Tape wrap seal
5.2.8 Mount the cutting head on the backplane
The cutting head can be installed on the Z-axis backplane of the machine tool through four screws A, B, C,
and D. When fixing the cutting head on the machine, it must be ensured that the cutting head is locked and there
Notice:
 To achieve affective sealing, it is recommended to wrap the
tape at least three times for sealing.
BOCI
