The chassis
The height adjustment of the beds is carried out either via two height-adjustable manual
controls, or via a base frame with single or double drive. The surface of the tubular steel
structure is stove-enamelled with a PES-powder coating.
The side rail
Each nursing care bed can be equipped on both sides with two side rails at a special safety
height. The side rails can be lifted and lowered through a rail. The sliding pieces run par-
ticularly smoothly and quietly with an impact damper, and each end is fitted with a func-
tional cap. The side rail can be easily operated through an ergonomically designed release
button.

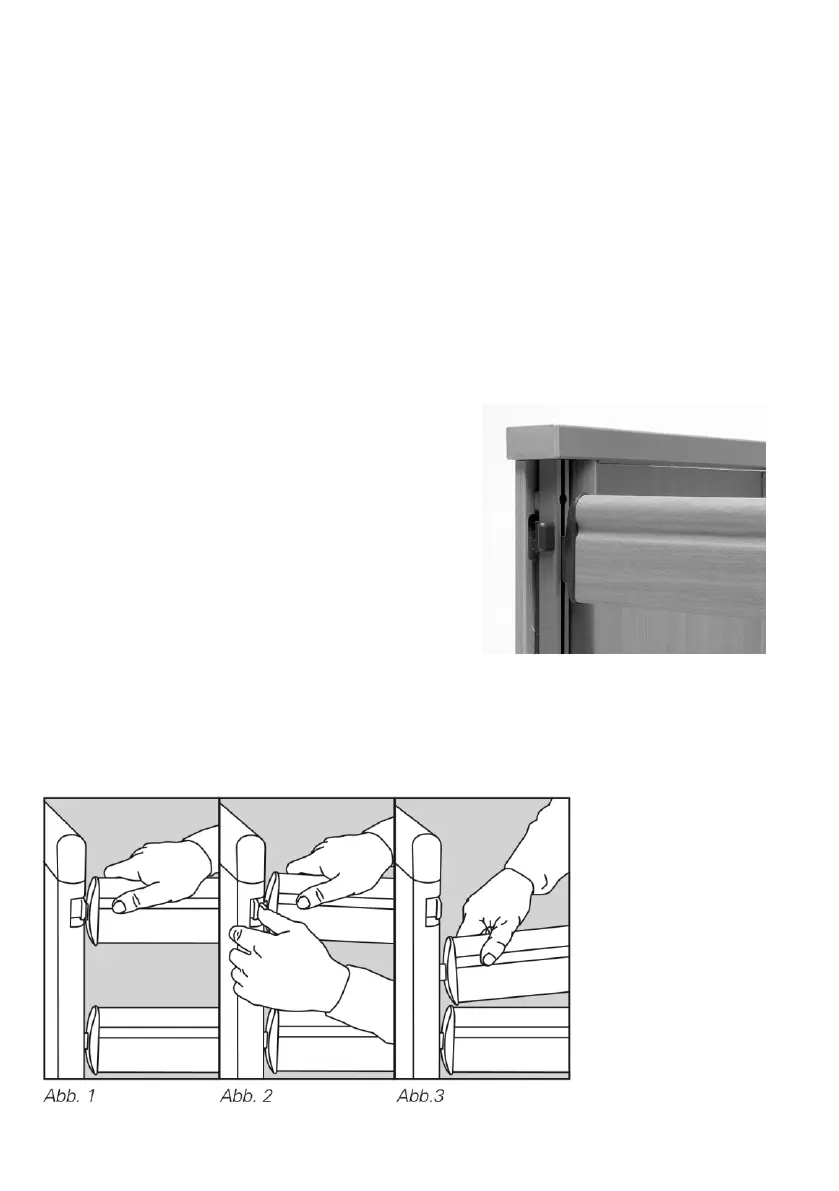

The operation of the continuous side rails
The release button for adjusting the continuous
side rails is located at the top of the inner sides of
the head and foot parts directly next to the metal
guides for the side guard rails.
If the side rails are to be lowered, grasp the pro-
vided gripping groove of the upper side guard rail
(Fig. 1), lift the side rail slightly and press the re-
lease button on one side of the head or foot part
(Fig. 2). The side rail is released on the correspond-
ing side and can easily be lowered down to the stop
(Fig. 3). The side rail is now diagonal. To lower the other side as well, carry out the previ-
ously described steps on the opposite end. The side rail is now in the lowered position.
Please observe: Be sure to raise the side rail slightly, and only then press the release
button!
