Body Solid EXM1 - Assembly Step 7 A; Route High Pulley Cable 90; Attach Small Pulley (A1) and Pulley (A2); Route Cable through Press Arm Pivot Q

38
STEP
7A
Be careful to assemble all components
in the sequence they are presented.

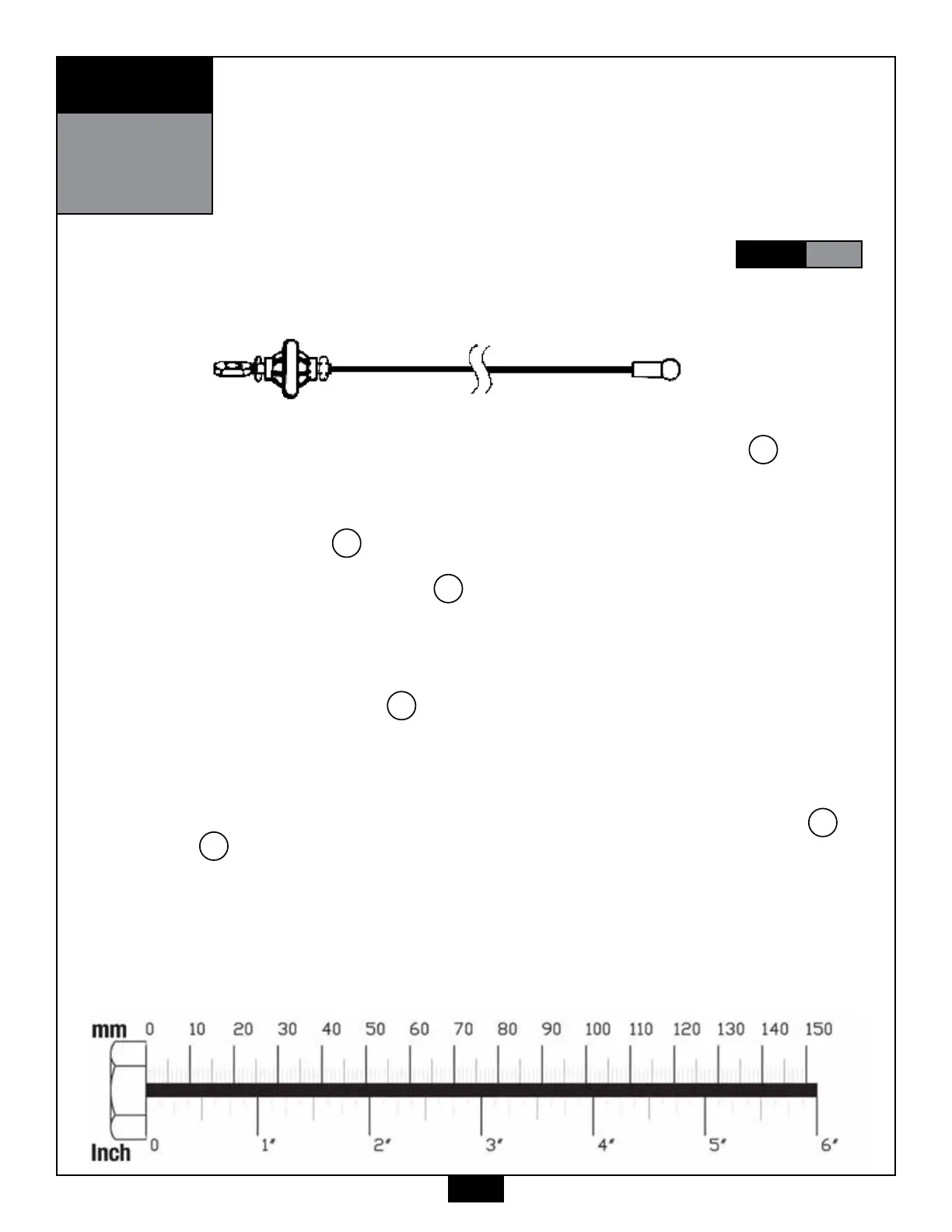

1. See Diagram 1. Begin at the front of the gym, at the high pulley station. Route the Metal
Ball End of the High Pulley Cable 90 up and through the opening where Pulley A1 will be
installed.
2. Then route the cable above the frame, not through, and then down through the next
opening where Pulley A2 will be installed.
3. See Diagram 2. Attach Small Pulley A1 (15) 3 ½” Small Pulley as shown using:
(1) 52 m10 x 95 hex head bolt
(2) 14 3/8” pulley spacer
(1) 70 m10 nylon lock nut
4. See Diagram 2. Attach Pulley A2 (4) 4 ¼” Pulley as shown using:
(1) 52 m10 x 95 hex head bolt
(2) 14 3/8” pulley spacer
(1) 70 m10 nylon lock nut
3. See Diagram 1. Route the cable forward and through Press Arm Pivot Q, where Pulley A3
and A5 will be installed and pull entire length of cable through.
Ball Stop End Metal Ball End
High Pulley Cable (90)
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of
STEP
