Body Solid EXM1 - Cable Adjustment; Adjusting Pulleys in Double Pulley Holder V; Adjusting Pulleys in Rear Upper Beam E

52
Cables can stretch slightly when your gym is rst used. If there is slack in the cables before resistance is
felt, the cables should be tightened. Cable tension can be adjusted in several ways:
Move the pulley up or down in the top of Double Pulley Holder V
Move the pulley up or down in the bottom of Double Pulley Holder V
Move the pulley up or down in the top of Rear Upper Beam E
Adjust the chain attached to the Small Pulley Holder W
To adjust your cables see the illustrations below. Do not over tighten the cables. If the cables are over
tightened you will notice the Top Plate 37 will be lifted off the weight stack.
Cable Adjustment
First, remove the Weight Stack Pin 30 from the Weight Stack. This will release tension on the cables.

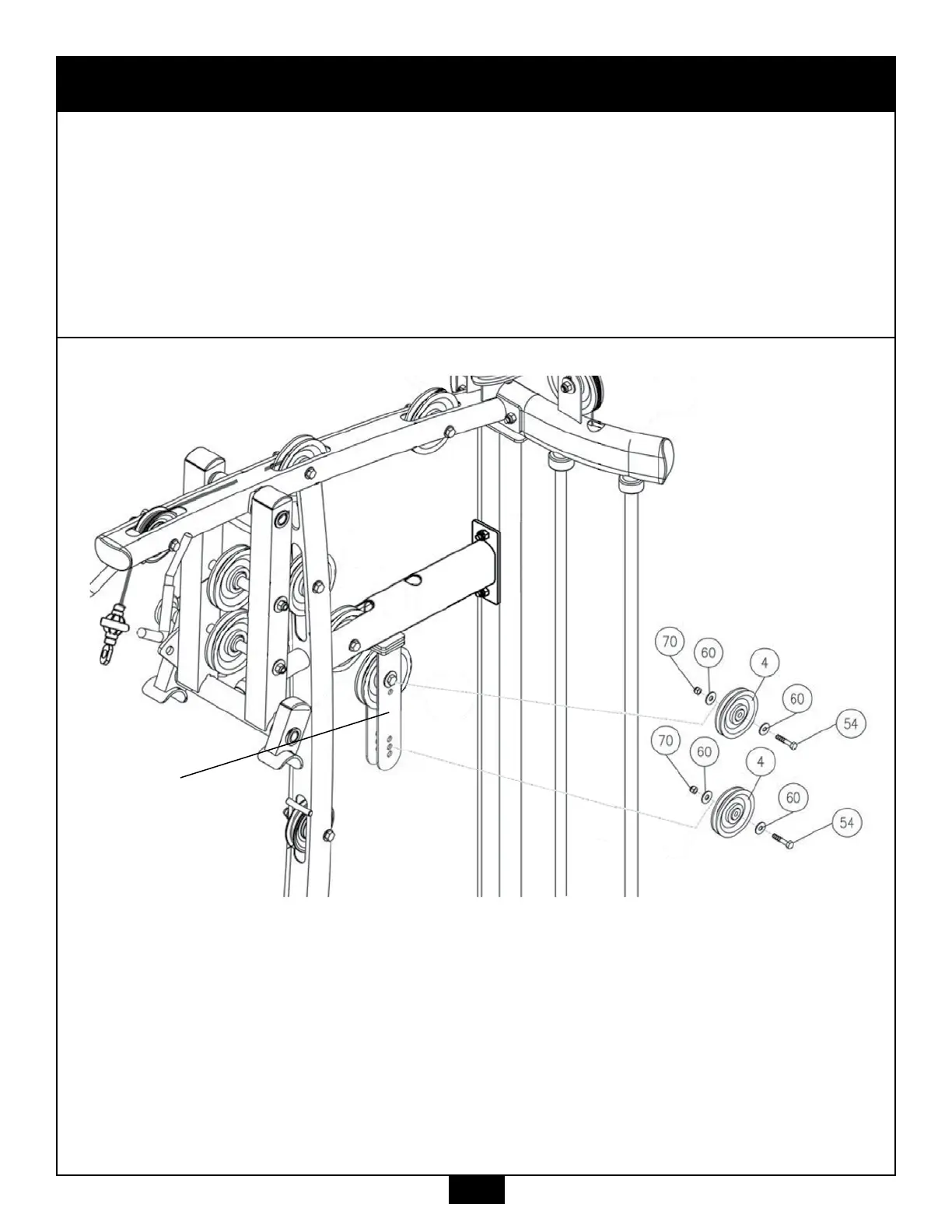

You can now remove the pulley inside the top of the Double Pulley Holder V and move the pulley up or down
to adjust the cable tension. You can also remove the pulley inside the bottom of the Double Pulley Holder V
and move the pulley up or down to adjust the cable tension.
V
Double Pulley
Holder
