WARNING:
Selector Rod Top Bolt 34 must be threaded a minimum of 1/2” into the Selector Rod 31, and
Jam Nut 71 tightened securely against Spring Lock Washer 63 to ensure proper connection.
Check the Jam Nut 71 once a week to make sure it is tight.
NOTE:
At this point you should now wrench tighten all bolts and nuts on Step 7A, Step 7B, Step 8A
and Step 8B.
Be careful to assemble all components
in the sequence they are presented.
Ball Stop End Metal Ball End
High Pulley Cable (90)
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of
STEP
8B

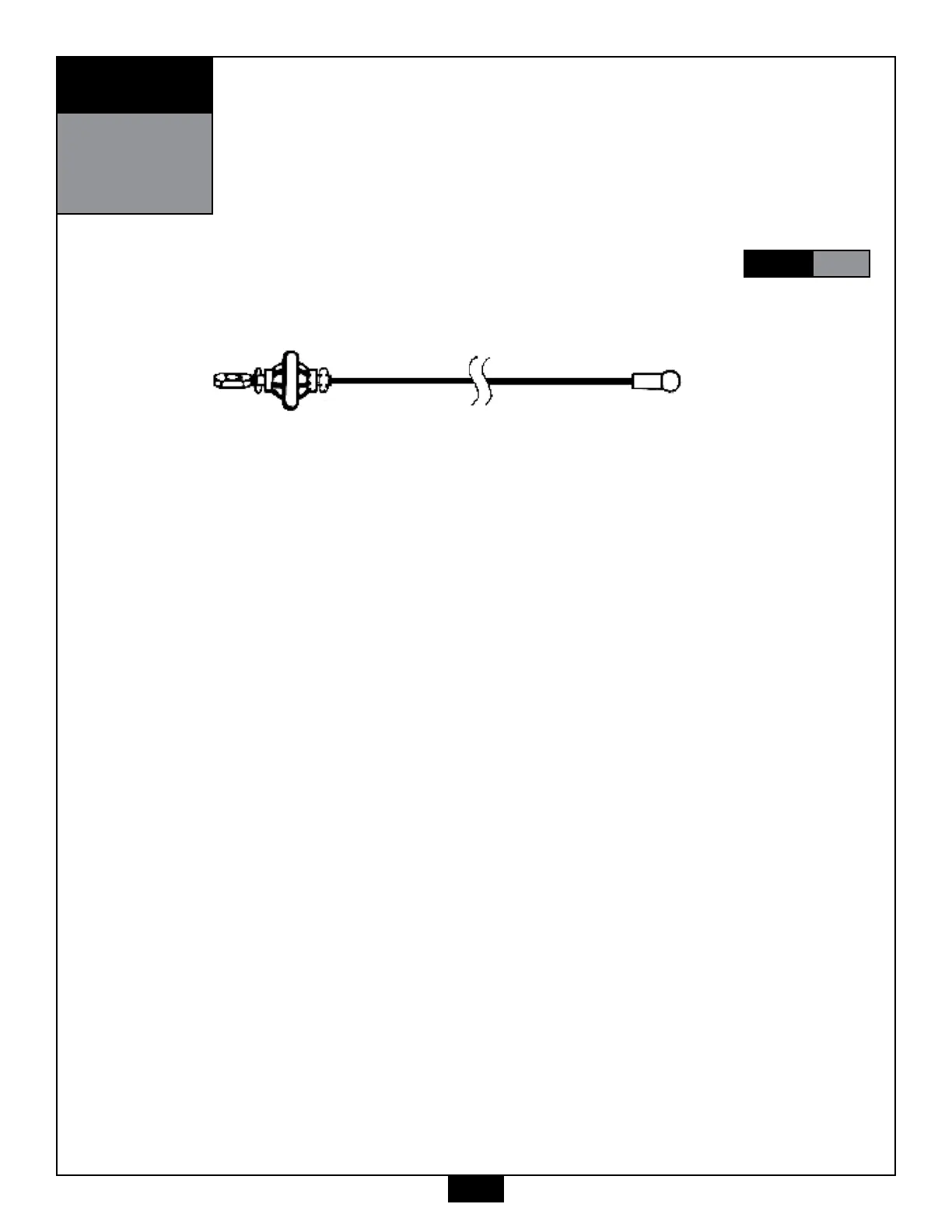

1. You will now connect the High Pulley Cable 90 to the weight stack. See Diagram 1.
Remove Bolt 59 inside of the Selector Rod Top Bolt 34. Slide the High Pulley Cable 90
through the opening in the top of the Selector Rod Top Bolt 34 as shown.
2. Attach Cable End Shaft 33 to the Metal Ball End of the High Pulley Cable 90 and tighten
the Allen Bolt.
3. Now pull the Cable back through the Selector Rod Top Bolt 34 so it is tight, and the Cable
End Shaft 33 ts inside the Selector Rod Top Bolt 34.
4. Re-install Bolt 59 in the top of the Selector Rod Top Bolt 34.
