46
STEP
9A

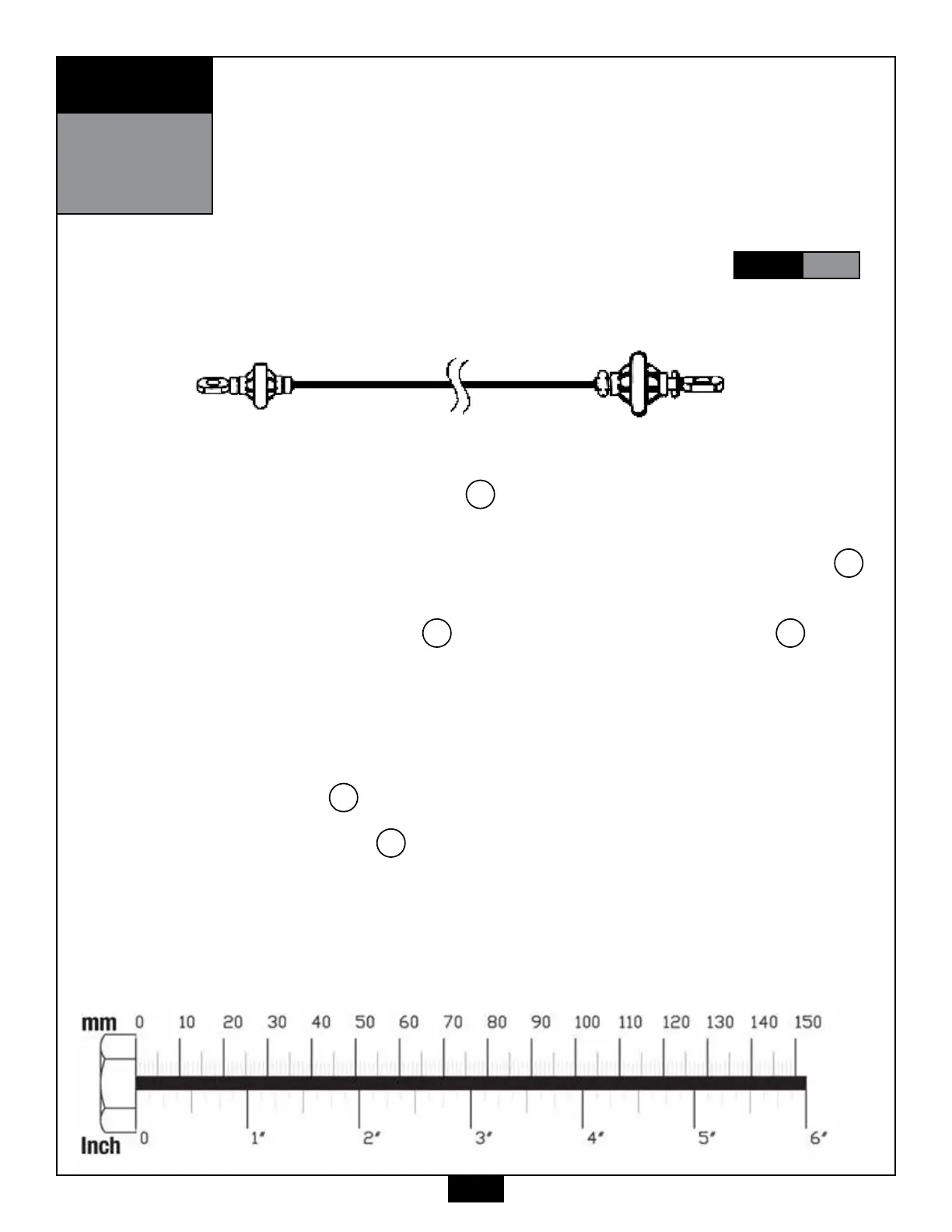

Small Ball End Ball Stop End
Low Pulley Cable (91)
1. See Diagram 1. Insert Small Ball End of the Low Pulley Cable 91 into the opening in the
Leg Extension Arm K, where Small Pulley B1 will be installed.
2. Then insert Cable 91 into and through Lower Main Frame A. Run Cable 91 along the top of
the frame and into and through Lower Main Frame A again, you will have to remove Pulley B3
and re-install. Now pull entire length of Cable 91 through.
3. See Diagram 2. Attach Small Pulley B1 (15) 3 ½” Small Pulley and install Pulley B2 (4)
4 ¼” Pulley using:
(2) 52 m10 x 95 hex head bolt
(4) 14 3/8” pulley spacer
(2) 70 m10 nylon lock nut
4. See Diagram 1. Route the Low Pulley Cable 91 up and through the opening in Lower Main
Frame A, where Pulley B4 will be installed and pull the entire length of cable through.
5. See Diagram 2. Attach Pulley B4 (4) 4 ¼” Pulley as shown using:
(1) 52 m10 x 95 hex head bolt
(2) 14 3/8” pulley spacer
(1) 70 m10 nylon lock nut
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of
STEP
10
Be careful to assemble all components
in the sequence they are presented.
