Body Solid EXM1 - Assembly Step 10; Attach Short Cable 92 to Lower Main Frame A; Route Short Cable 92 and Attach to Small Pulley Holder W

50
STEP
10

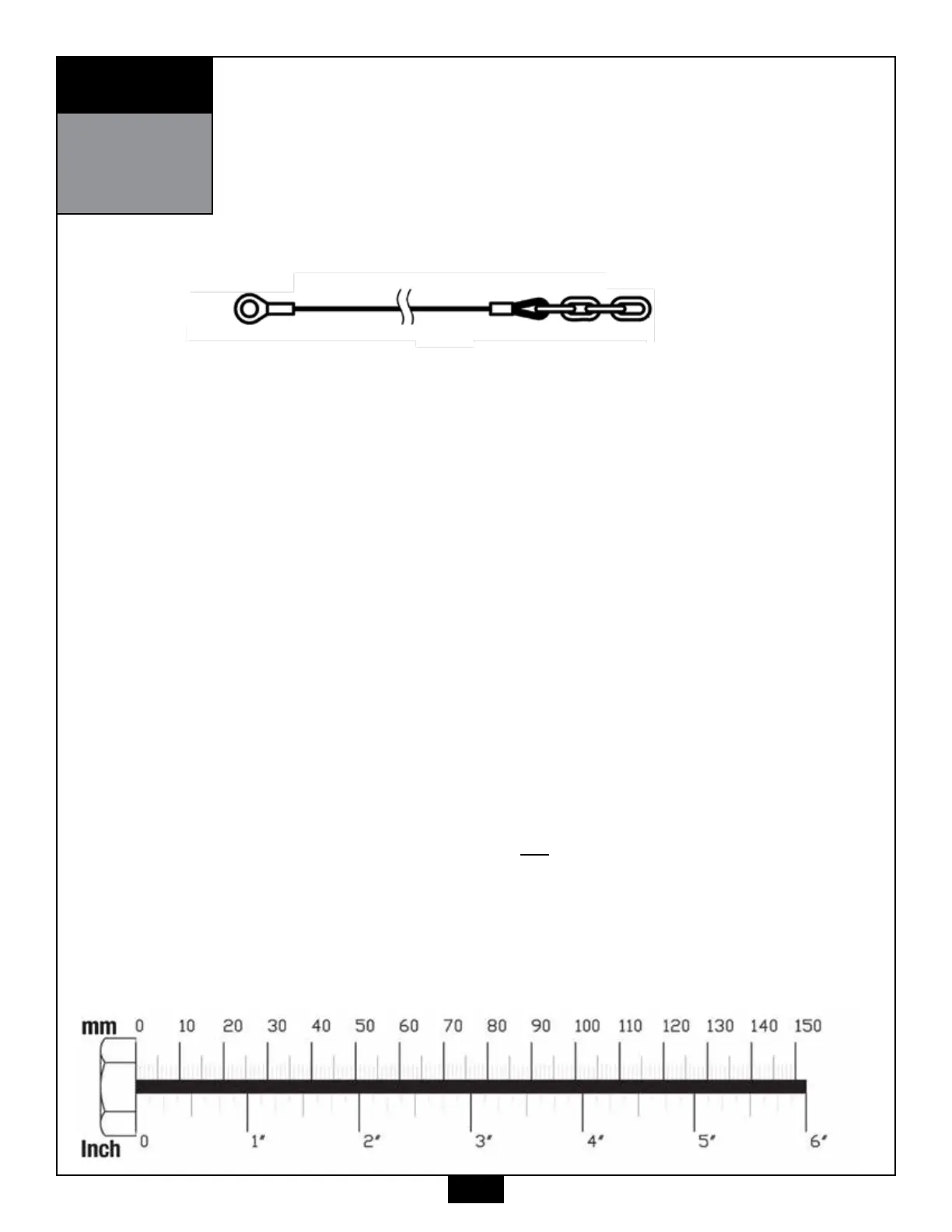

Stamped Eye End Chain End
Short Cable (92)
1. See Diagram 1. Stamped Eye End of the Short Cable 92 goes inside the Lower Main
Frame A as shown.
1. See Diagram 2. Attach the Stamped Eye End of the Short Cable 92 to the Lower Main
Frame A as shown using:
(1) 98 m10 x 110 hex head bolt
(2) 60 m10 washer
(1) 70 m10 nylon lock nut
2. See Diagram 2. Route the Short Cable 92 up and attach the Chain End to the hook on
the bottom of the Small Pulley Holder W as shown. Hold cable 92 in place using:
(1) 40
3
/
16
” acorn cap nut
NOTE:
These parts are pre-installed
NOTE:
You can now wrench tighten all bolts and nuts. Do Not re-tighten any pad bolts.
Be careful to assemble all components
in the sequence they are presented.
