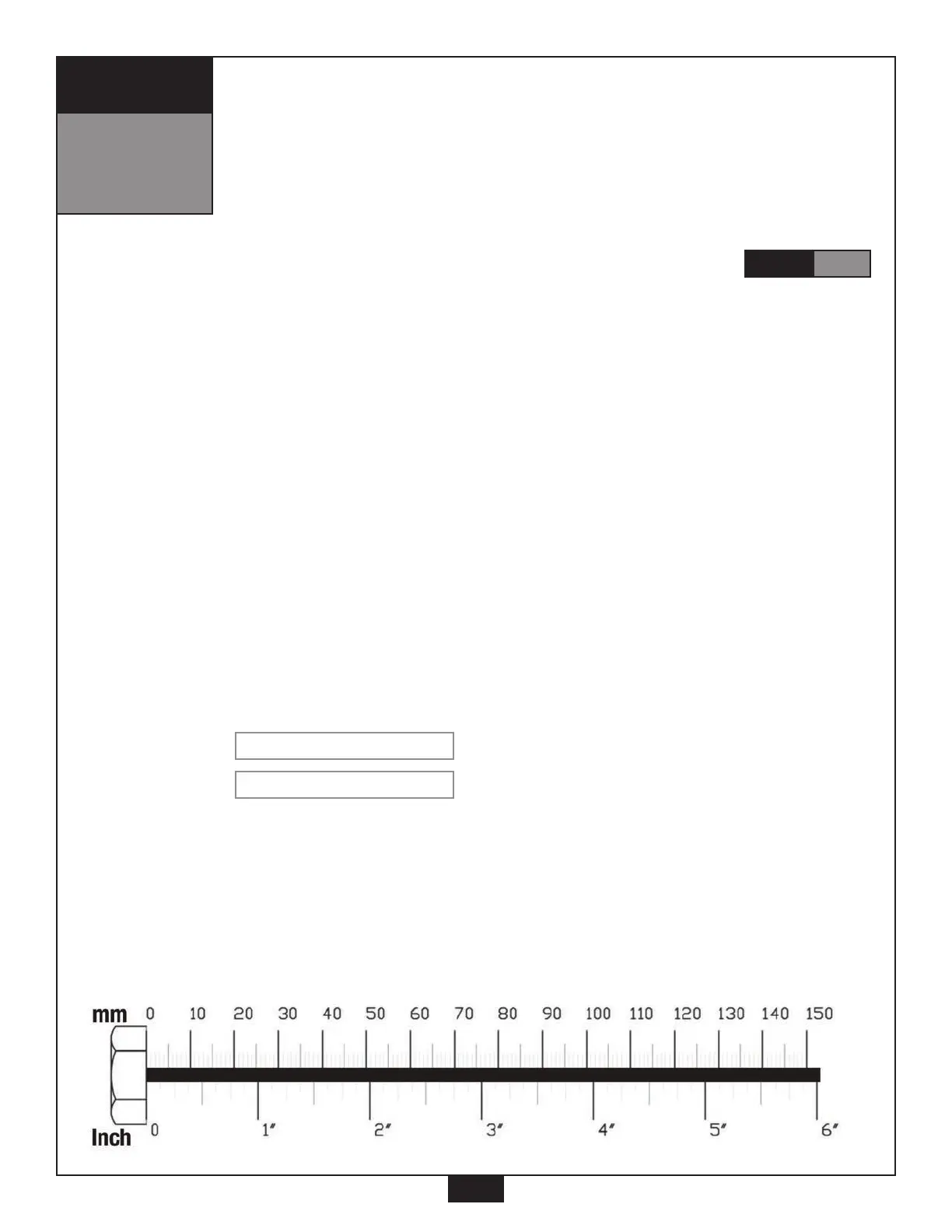

STEP
1B
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of
1. Attach (1) End Cap d28 onto 2” x 4” Upright D, as shown.
2. Attach (1) End Cap d5 onto 2” x 4” Top Frame G, as shown.
Attach 2” x 4” Top Frame G to the 2” x 4” Upright D using:
(2) a1 1/2” x 5” hex head bolt
(2) c1 1/2” washer
(2) b1 1/2” nylon locking nut
3. Attach (1) End Cap d3 to the top of 2” x 2” Upright C.
Attach (1) Square Rubber Cap d11 and two End Caps d3 to the 2” x 2” Pec Dec Top L
as shown.
Attach 2” x 2” Pec Dec Top L to the 2” x 2” Upright C and onto 2” x 4” Top Frame G as
shown using:
(3) a3 1/2” x 3” hex head bolt
4. Attach (2) End Caps d3 onto the 2” x 2” Pulley Frame T.
Attach 2” x 2” Pulley Frame T to Main Base Frame A using:
Pre-installed hardware shown in diagram with a box around it.
(2)
(1)
M10 x 16mm hex head bolt
M10 washer
STEP
3B
