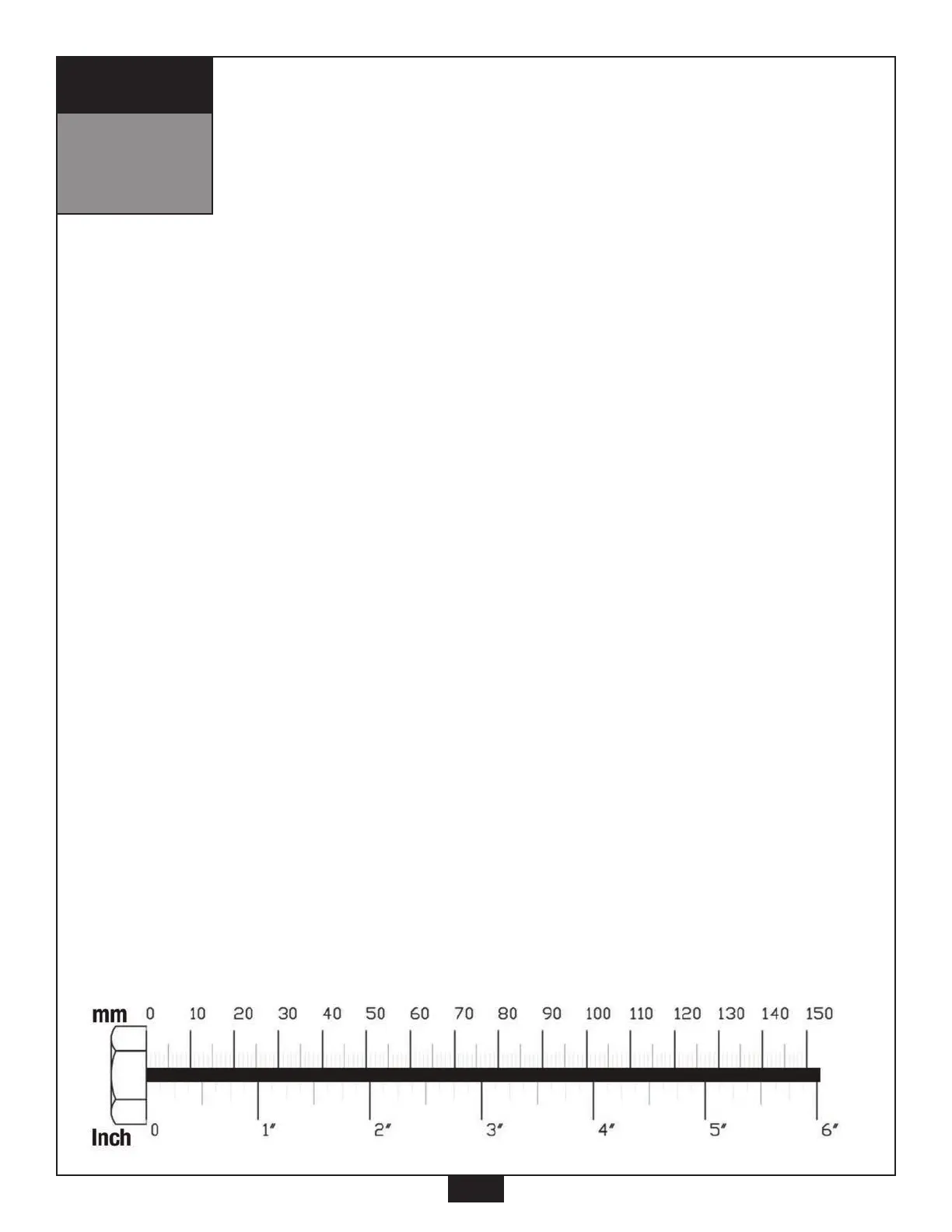

STEP
5B
37
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until the cables are
installed.
1. Insert (2) Pulleys d6 into 2” x 4” Upright D, and attach using:
(2) a5 3/8” x 2 3/4” hex head bolt
(4) d12 steel bushing
(2) b2 3/8” nylon locking nut
2. Insert (2) Pulleys d6 into the (2) double anges on Main Base Frame A as shown,
and attach using:
(2) a8 3/8” x 1 1/2” hex head bolt
(2) b2 3/8” nylon locking nut
3. Attach (1) Pulley d6 onto the outside of the single ange on Main Base Frame A
as shown, and attach using:
(1) a7 3/8” x 1 3/4” hex head bolt
(1) d18 pulley cable guide
(1) c2 3/8” washer
(1) b2 3/8” nylon locking nut
4. Install (1) Pulley d6 onto 2” x 2” Pulley Frame T using:
(1) a8 3/8” x 1 1/2” hex head bolt
(1) b2 3/8” nylon locking nut
You do not have to remove 2” x 2” Pulley Frame T to install Pulley d6.
