Body Solid EXM2500 - Short and Mid Cable Tension

55

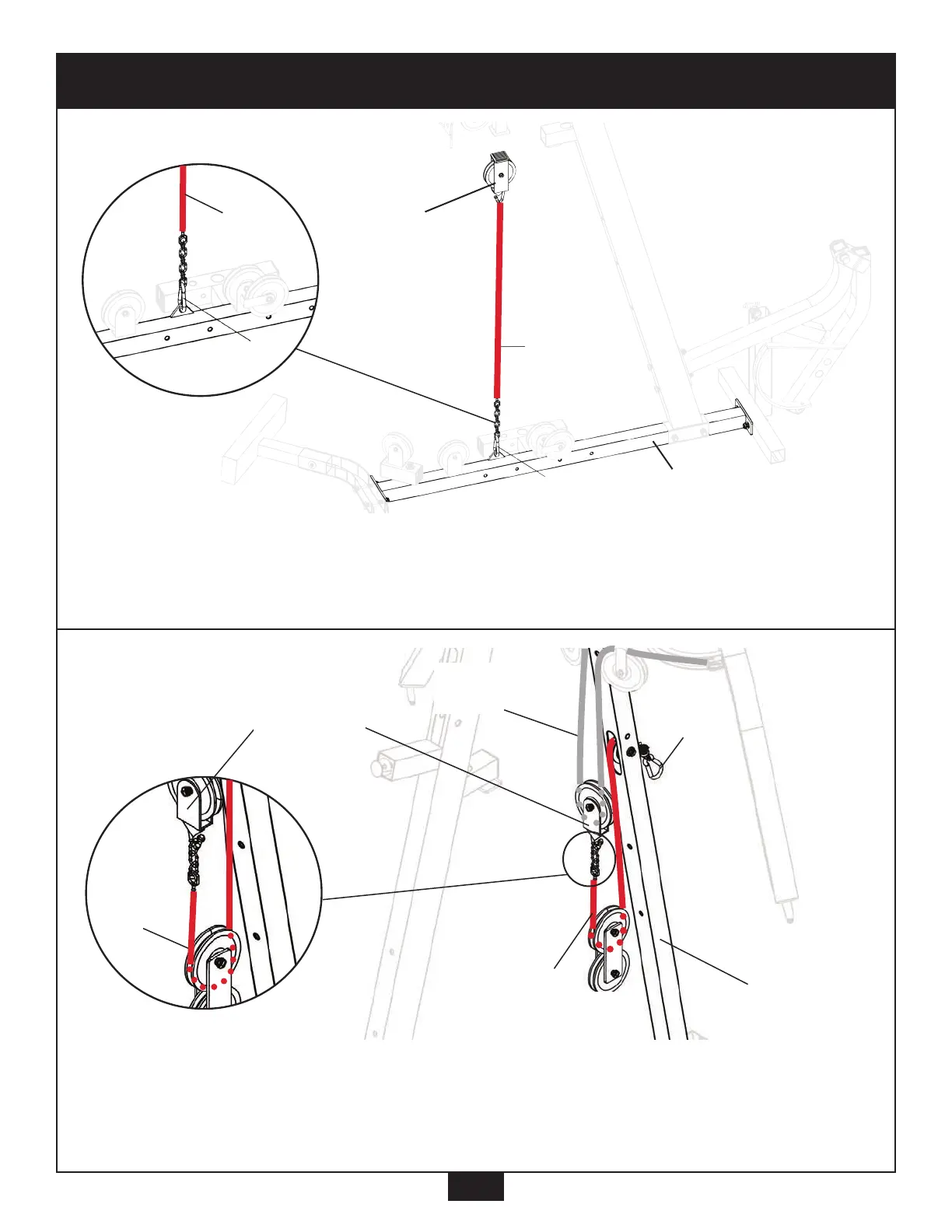

Cable Adjustments
First, remove the Weight Stack Pin a13 from the Weight Stack. This will release tension on the cables.
You can now adjust the Snap Link d20 located at the bottom of Short Cable d27 and attached to Main Base
Frame A, to adjust the cable tension.
First, remove the Weight Stack Pin a13 from the Weight Stack. This will release tension on the cables.
You can now adjust the chain located at the end of Mid Pulley Cable d26 and attached to Small Pulley
Holder W, to adjust the cable tension.
V
Big Pulley
Holder
d27
Short Cable
d20
d20
d27
A
Main Base Frame
d25
Pec Dec Cable
d20
C
2” x 2” Upright
d26
Mid Pulley Cable
W
Small Pulley
Holder
d26
