BODYMAX B50 - Assembly Instructions

11
6
16
5
15
3
6
5
16
3
4
4.2 Assembly instructions
A.
Before assembling make sure that you will have enough space around the item.
B.
Use the present tooling for assembling.
C.
Before assembling please check whether all needed parts are available (at the above of
this instruction sheet you will nd an explosion drawing with all single parts (marked
with numbers) which this item consists of.

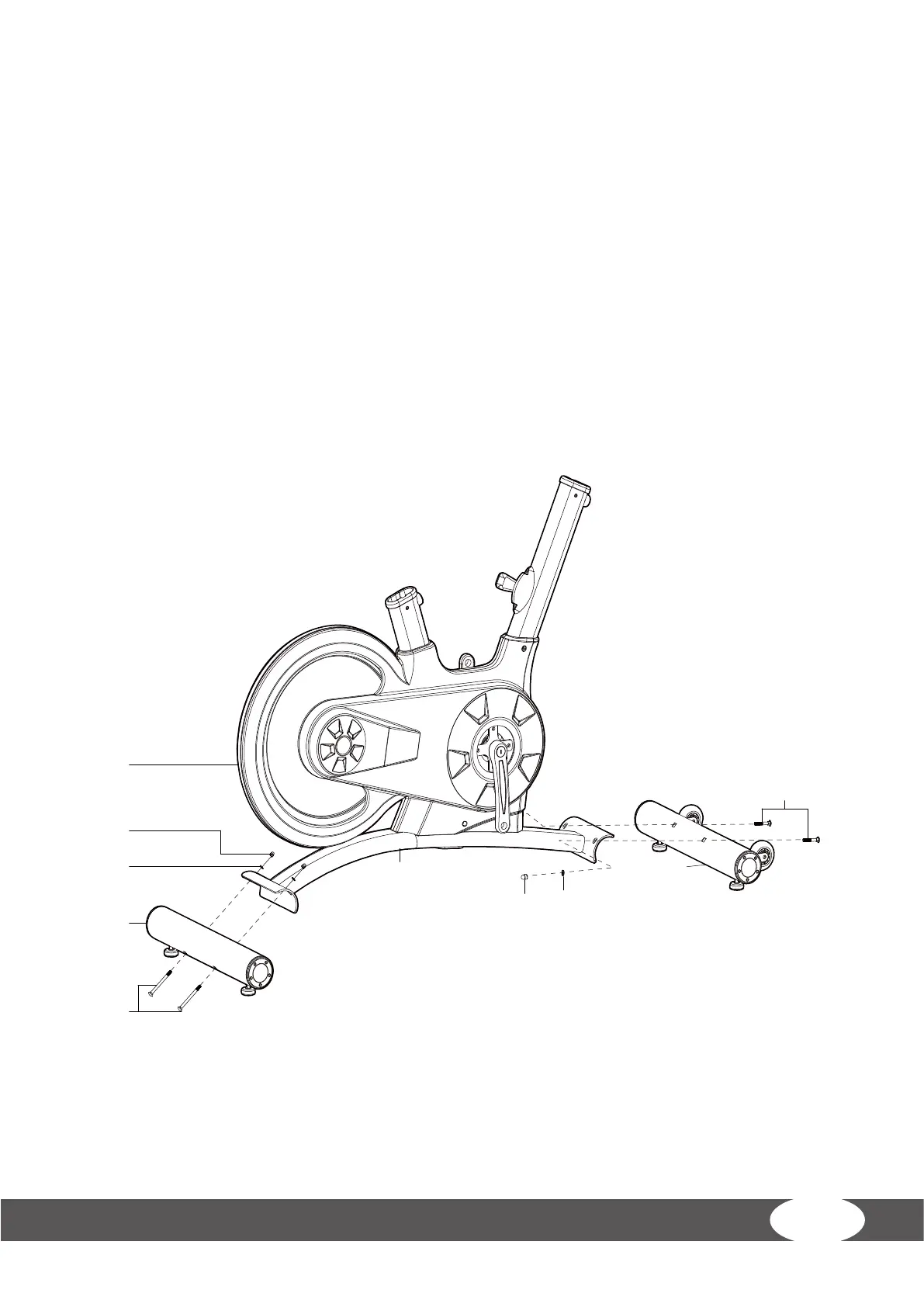

Step 1:
1. Attach the Front Stabilizer (15) to the Main Frame (16) using two sets of ø10 Flat Washers (5),
M10 Domed Nut (6) and M10x90mm Carriage Bolt (3).
2. Attach the Rear Stabilizer (4) to the Main Frame (16) using two sets of ø10 Flat Washers (5),
M10 Domed Nut (6) and M10x90mm Carriage Bolt (3).
