CONNECTING THE CABLE LEADS
Prior to connecting your cable leads we recommend that you read the section
of the manual called IMPORTANT GUIDELINES FOR EQUIPMENT CARE.

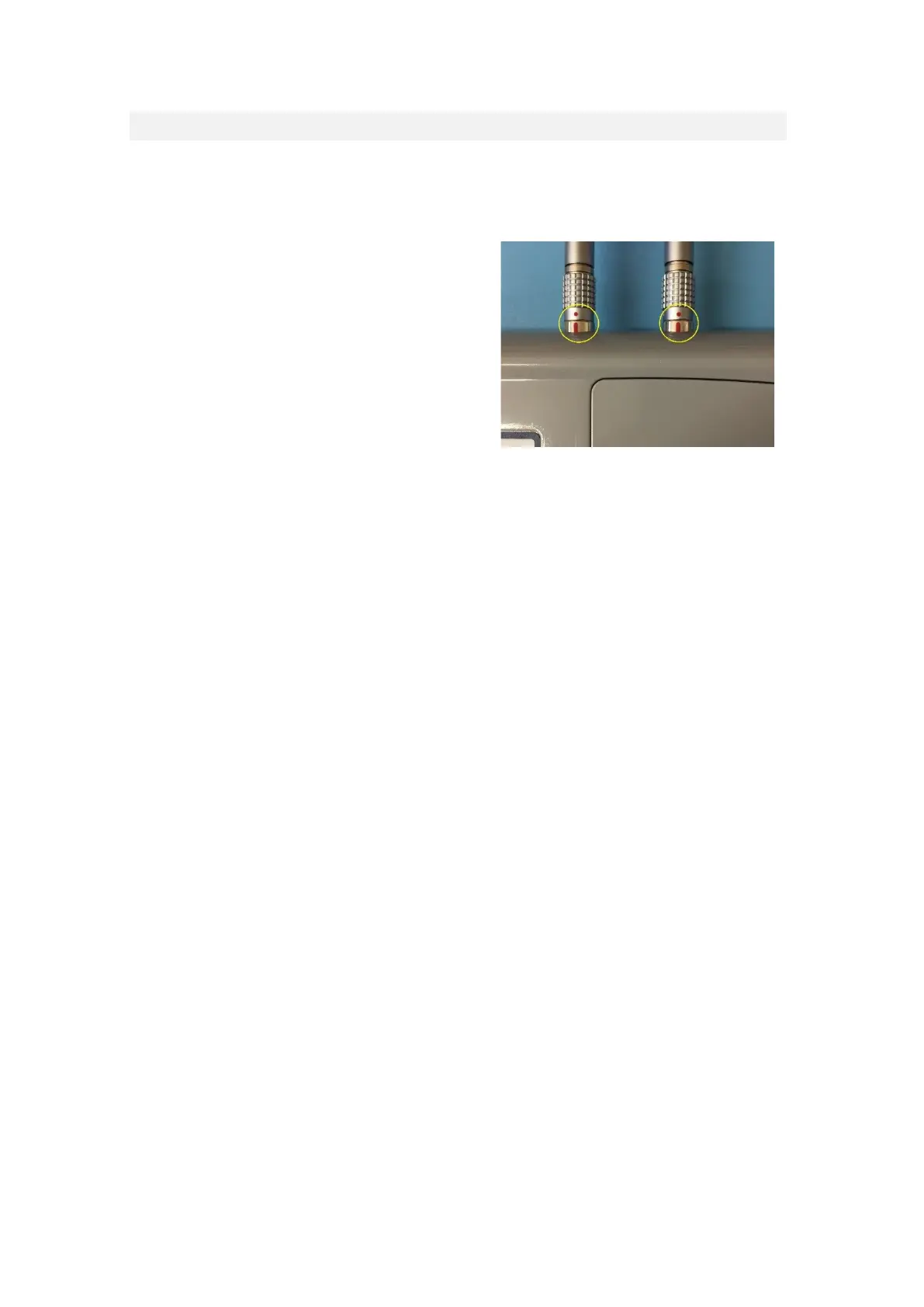

The BODYSTAT
1500MDD unit has two
main cable leads. Each lead is to be
inserted to the connectors at the rear of
the unit. The red dot on the lead wire
should be lined up with the red dot on
the device.
DO NOT insert the leadwire into the device
without aligning the red dots. Non-
alignment will damage the socket
mounted on the PCB. Such damage is not
covered by our warranty.
The two main blue cable leads each contain a RED and BLACK crocodile clip.
These can be attached to either the foot or the hand, they are therefore,
interchangeable.
