9

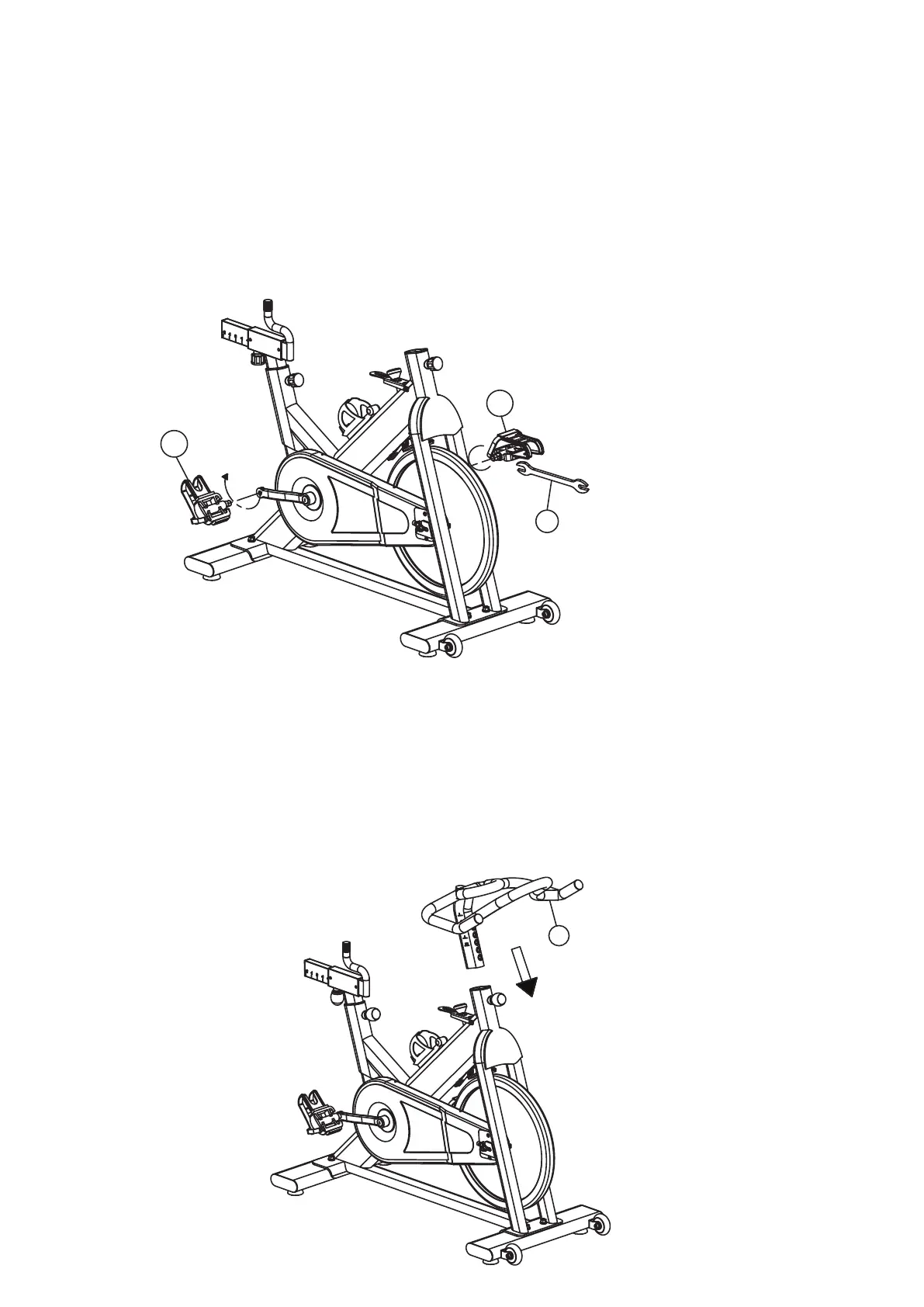

Assembly Step C
Thread the right pedal (#42R) that has "R" on spindle to the right side arm
of the bike using the Multi-Wrench (#15) . Please note that the R pedal
is right-hand threaded which must be turned clockwise to tight.
Thread the left pedal (#42L) that has "L" on spindle of the left side arm
of the bike using the Multi-Wrench (1#5). Please note that the L pedal
is left-hand threaded which must be turned counterclockwise to tight.
Assembly Step D
Orient the Handlebar (#25) as shown.
Locate the Adjustable Knob on the front of the Frame. Loosen the knob
and pull it outward. Then, insert the H
andlebar (#25) into the frame. Move
the Handlebar (#25) upward or downward to the desired position, and then
tighten the knob.
15
42L
42R
25
