Panel Descriptions

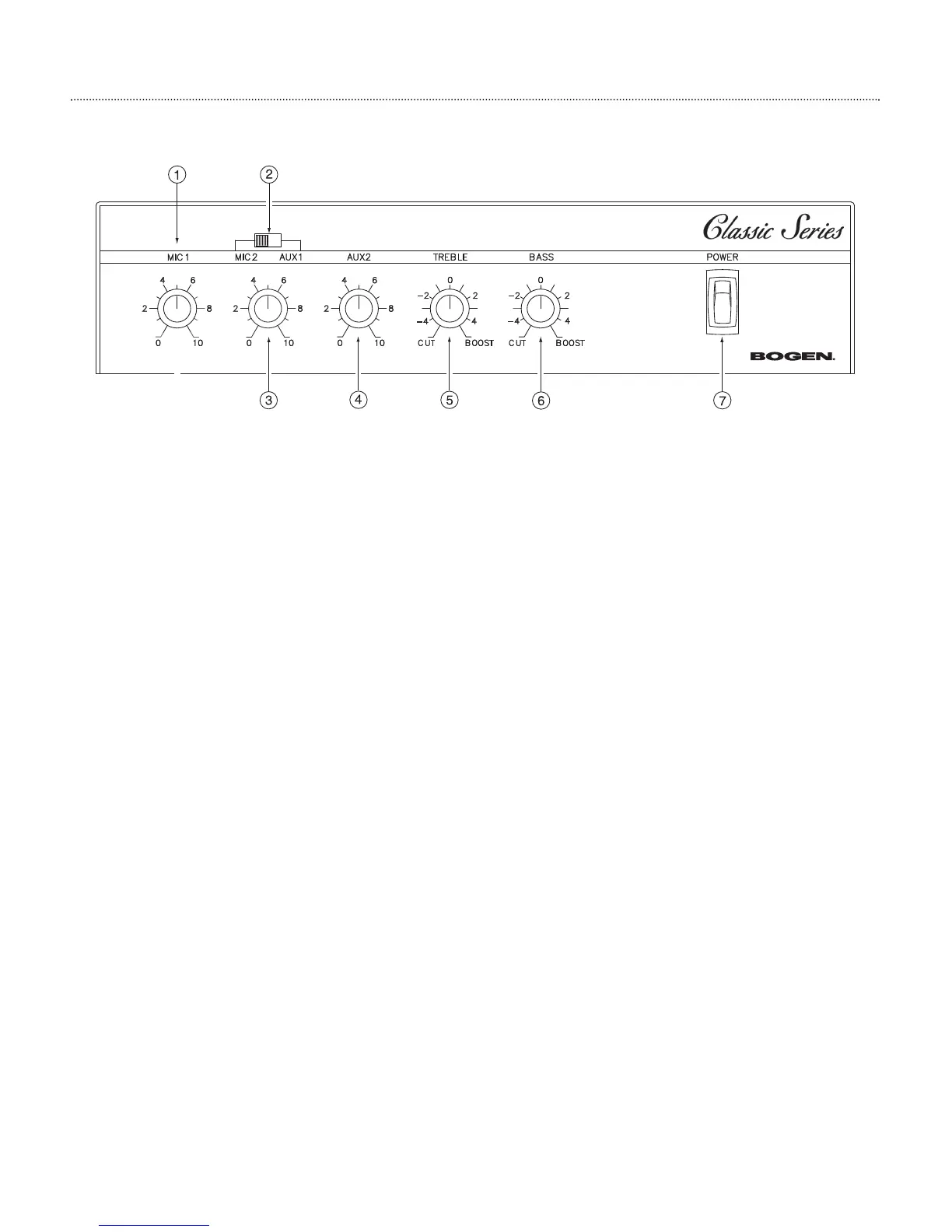

Classic Series Front Panel
1. MIC1 Level Control
Individual level control for a dedicated microphone input.
2. MIC2/AUX1 Mode Switch
Switch selects either the MIC2 or AUX1 connection as the active input.
3. MIC2/AUX1 Level Control
Individual level control for a dedicated microphone input or for an auxiliary input depending
on input mode selected.
4. AUX2 Level Control
Individual level control for a dedicated auxiliary input.
5. Treble Control
Controls the amount of cut or boost of treble frequencies above 10 kHz.
6. Bass Control
Controls the amount of cut or boost of bass frequencies below 100 Hz.
7. Power
AC Power switch. Illuminates when ON.
