Panel Descriptions

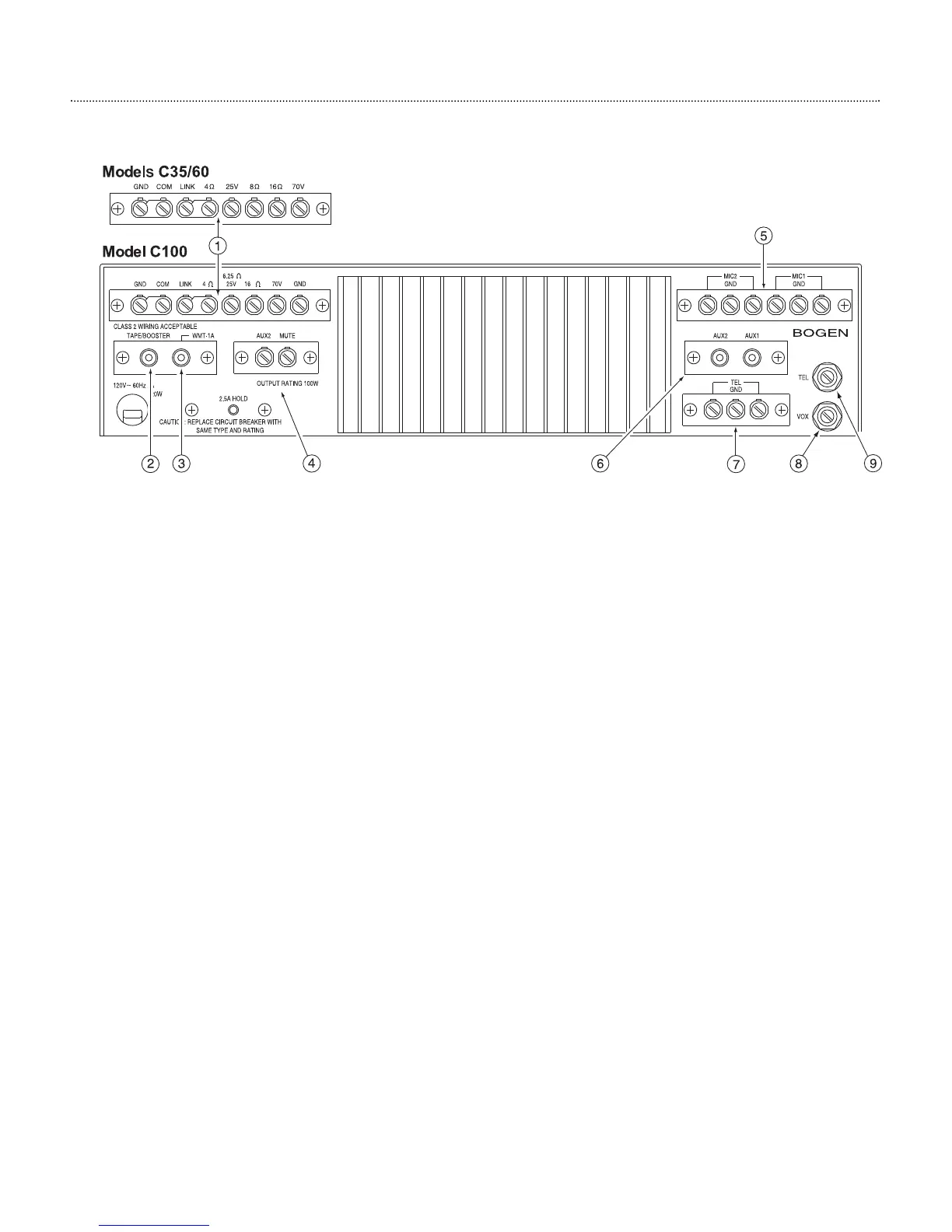

Classic Series Rear Panel
1. Amplifier Output
Screw terminal strip containing all available speaker outputs.
2. Tape/Booster
RCA unbalanced signal level/output.
3. WMT1A
RCA output connection for Bogen’s 600-ohm balanced line matching transformer Model WMT1A.
4. AUX Terminal
Screw terminal connection that allows externally controlled muting of AUX inputs with a contact closure.
5. Microphone Inputs
Screw terminal strip containing the MIC1 and MIC2 balanced, low-impedance inputs.
(MIC2 is switch-selectable.)
6. Auxiliary Inputs
RCA unbalanced, AUX1 and AUX2 high-impedance inputs. (AUX1 is switch-selectable.)
7. TEL Input
Screw terminal input for 600-ohm balanced telephone signal.
8. VOX Sensitivity Control
Variable control for adjusting TEL input signal level trigger point for automatic muting of AUX input.
9. TEL Volume Control
Adjusts the telephone input paging level.
