bolid S2000-2 - Standard Delivery and Mounting

Orion ISS
www.bolid.com 48
STANDARD DELIVERY
Find the following when unpacking the S2000-2 controller:
¾ S2000-2 Access Controller
¾ This User’s Manual
¾ Six 8.2 kOhm Terminating Resistors
¾ Three Woodscrews
¾ Three Wallplugs
¾ DIN 7982 Flat Head Tapping Screw with Cross Drive 2,2х6,5
S2000-2 MOUNTING
142
124
∅
7
3
82
2 holes
∅
3
157
107
36
1
READY
2
Guide elements for
DIN-Rail mounting
Snap-on clip for
DIN-Rail mounting

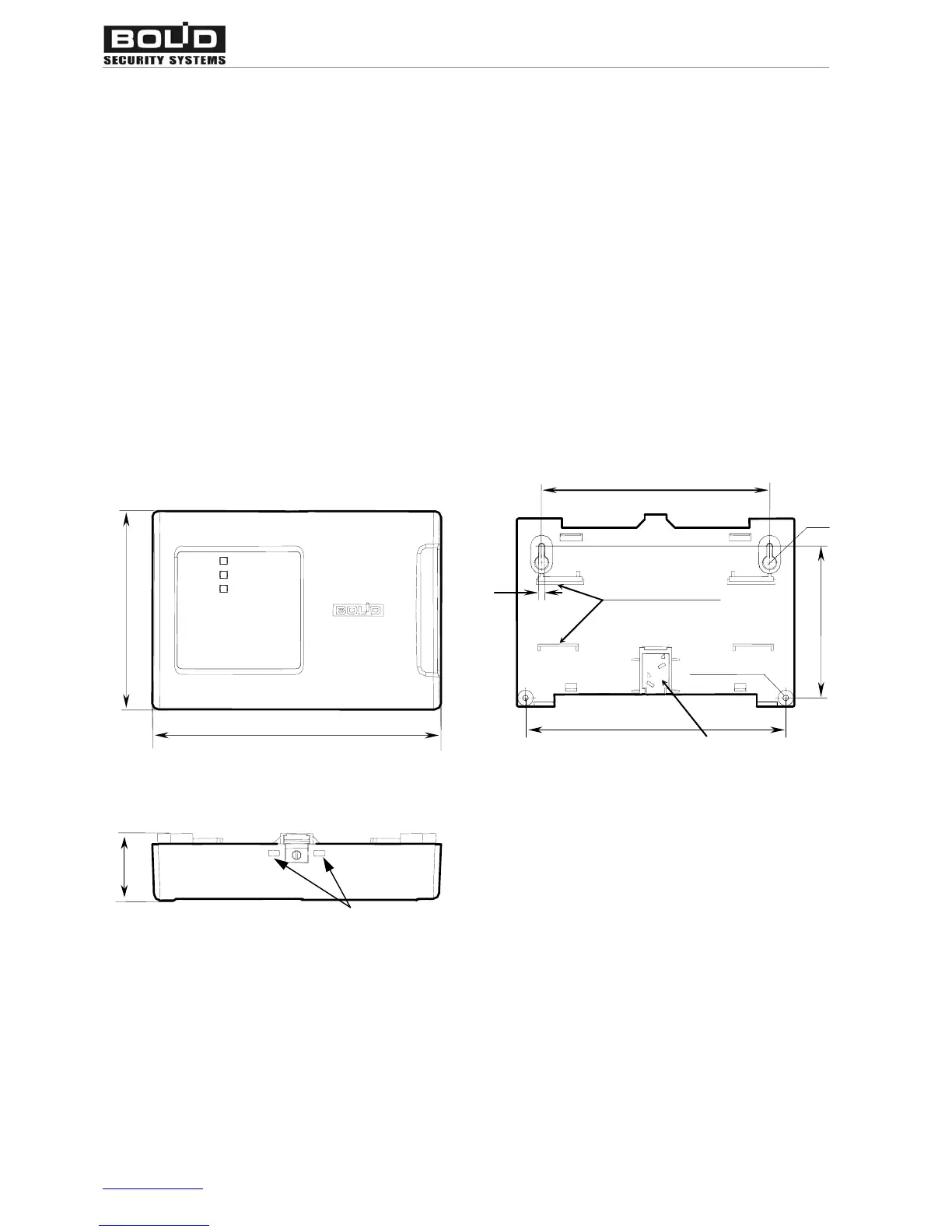

Figure 2. S2000-2 Overall and Mounting Dimensions
The S2000-2 controller is to be mounted on walls and other constructions within remises which are
protected against atmospheric fallouts, mechanical damage and unauthorized access.
S2000-2 overall and mounting dimensions are shown in Figure 2.
To remove the cover press here and pull out
