S2000-2 Installation
65 www.bolid.com
GND
S2000-2
Variant 1
Suitable for normall
y
close contacts
DOOR
8.2 kOhm
GND
S2000-2
Variant 2
Suitable for normally open contacts
DOOR
8.2 kOhm
GND
S2000-2
Variant 3
Suitable for NPN open collectors,
NC outputs
DOOR
8.2 kOhm
Passage
Sensor
GND
S2000-2
Variant 4
Suitable for NPN open collectors,
NO outputs
DOOR
8.2 kOhm
Passage
Sensor
GND
S2000-2
Variant 5
Suitable for digital outputs which are
active with logic 1
DOOR
8.2 kOhm
Passage
Sensor
0V GND
S2000-2
Variant 6
Suitable for digital outputs which are
active with logic 0
DOOR
8.2 kOhm
Passage
Sensor
0V

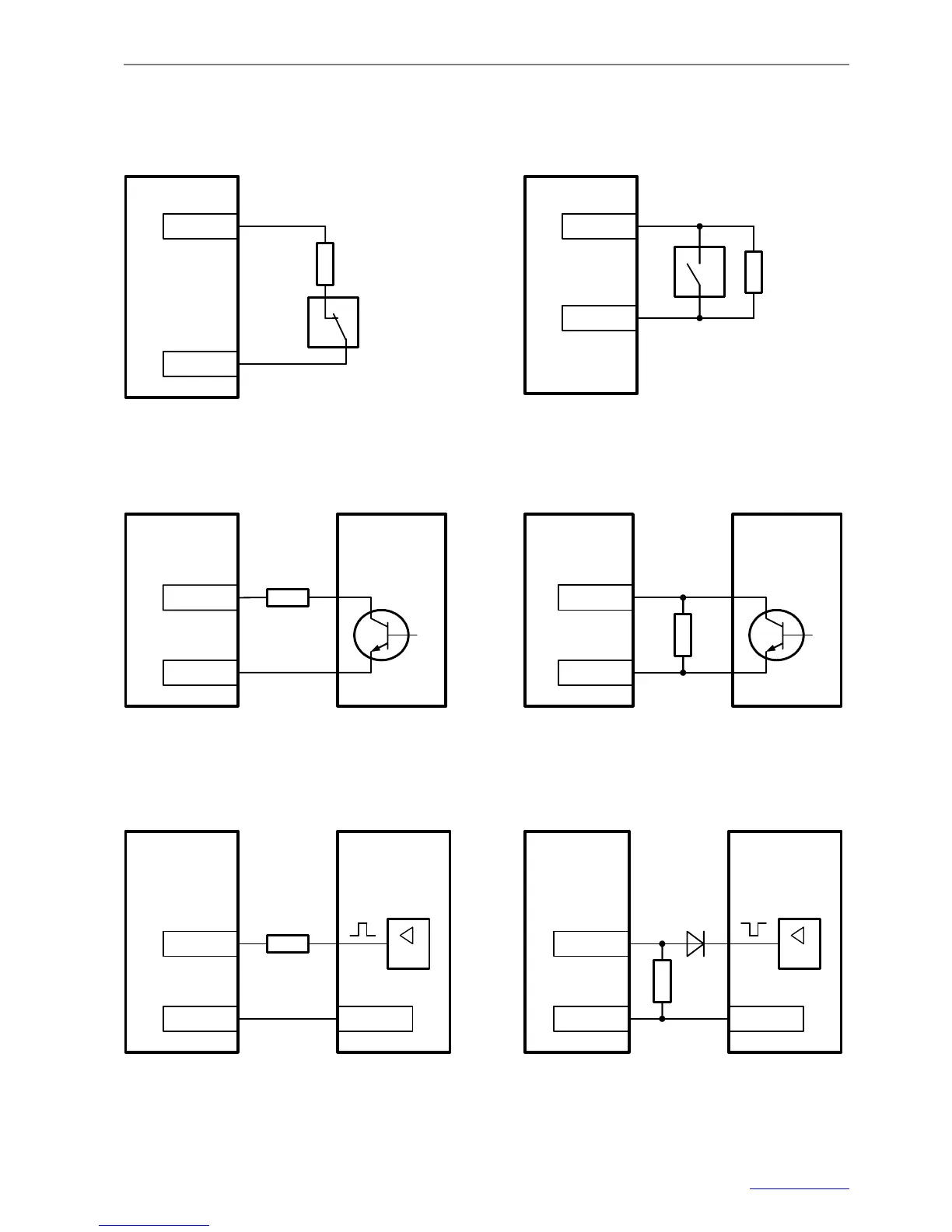

Figure 16. Wiring Diagrams for Door and Passage Sensors
