18

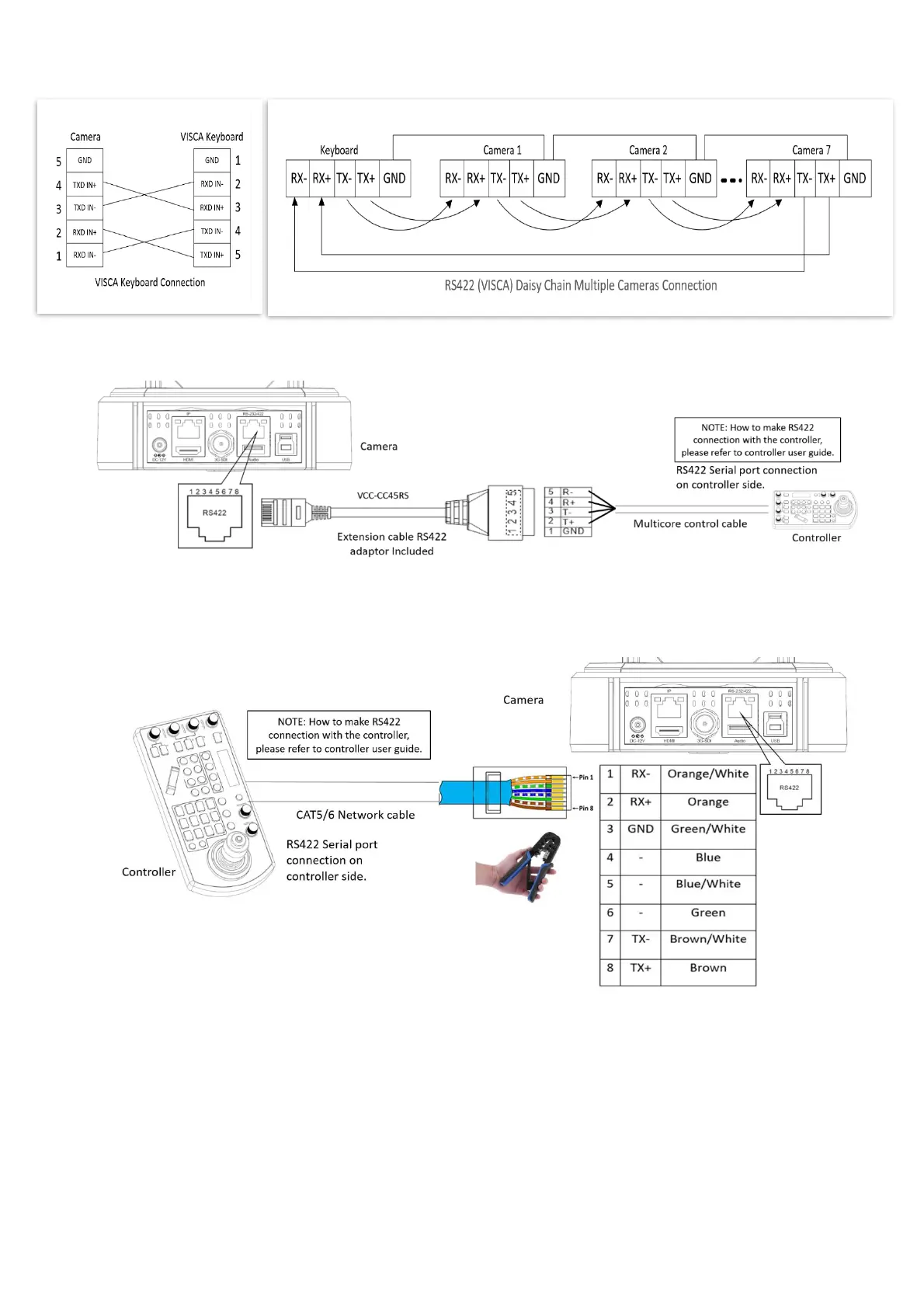

VISCA (Non-Sony) Keyboard RS422 Connection
11. Use extension cables RJ45 to RS422 Phoenix connecter adaptor included to make RS422 connection for your control device.
12. Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make
RS422 connection by following the pin definition below:
13. How to make RS422 Daisy Chain multiple camera connection with RS422 standard serial port controller:
To Next Page
