Bolin Technology 7 Series - Page 14

14

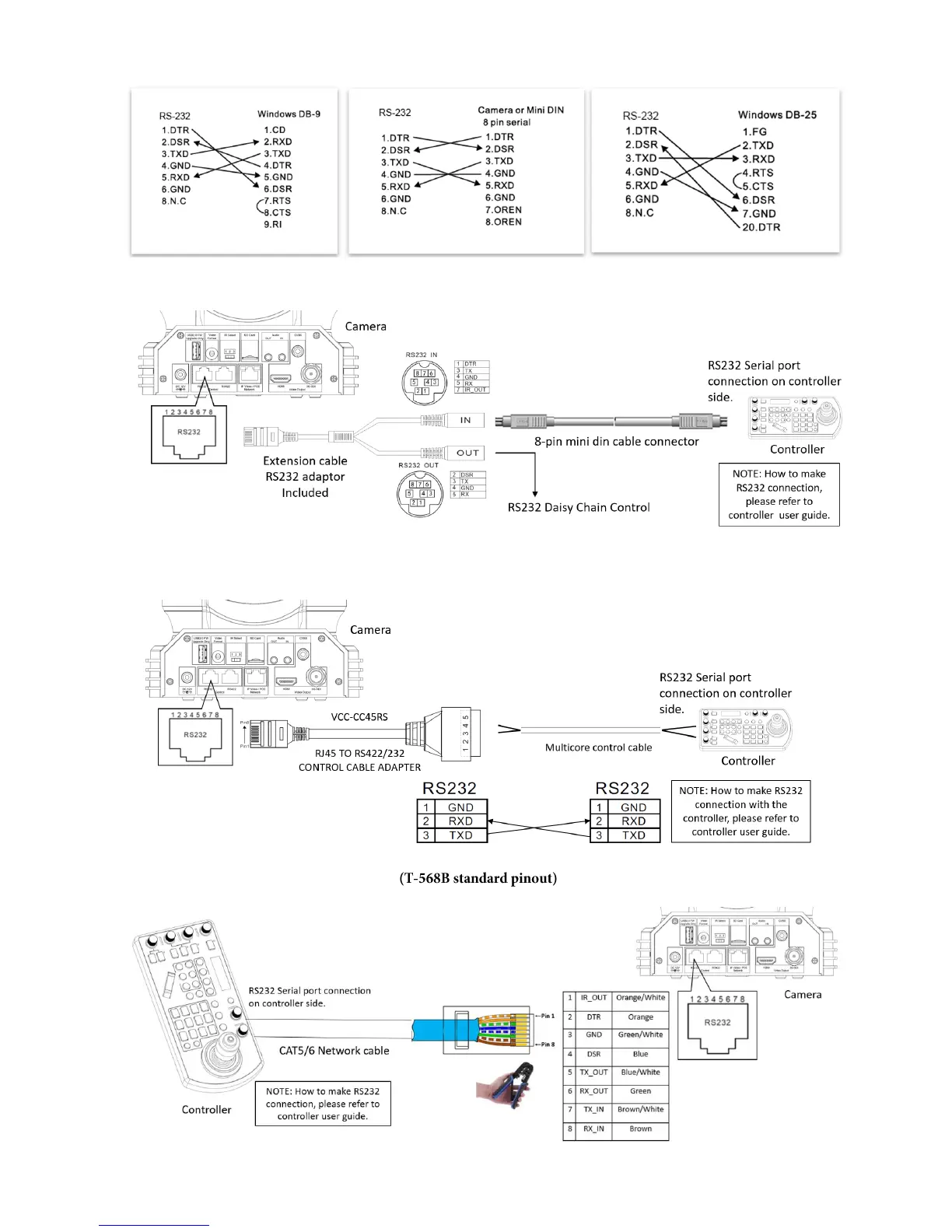

8. You can make RS232 connection cable if you have the following applications:
9. Use extension cables included RJ45 to RS232 8 pin Mini Din adaptor to make RS232 connection for your control device.
10. Use extension cables included RJ45 to RS422/232 Phoenix terminal contact adaptor to make RS232 connection for your
control device.
11. Or you can use CAT5/6 network cable to make RS232 connection by following the
pin definition below:
