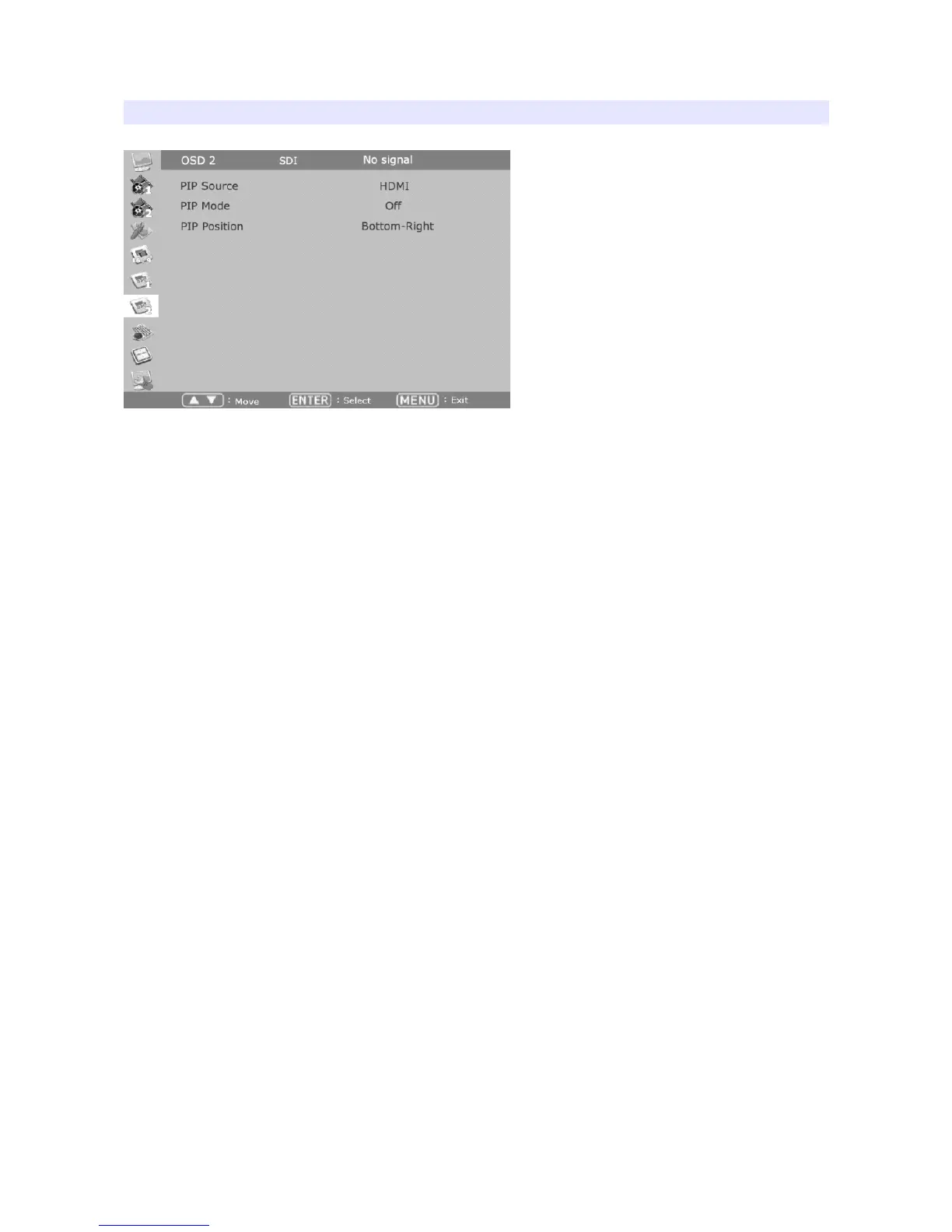

OSD 2
PIP Source
Selects the main picture source for Picture-in-Picture mode. The sub-picture source is automatically
selected to the other input. (e.g. If HDMI is set as main, SDI is automatically set as sub-picture)
PIP Mode
Adjusts mode of the sub-picture among Small, Large, or Side by Side.
PIP Position
Selects position of the sub-picture.
19
