BONFIGLIOLI BX Series User Manual

21 / 32
IOM BX-BE-BN-MX-ME-M_eng - Translation of original instructions in Italian - Rev 02_0 - 30/09/16

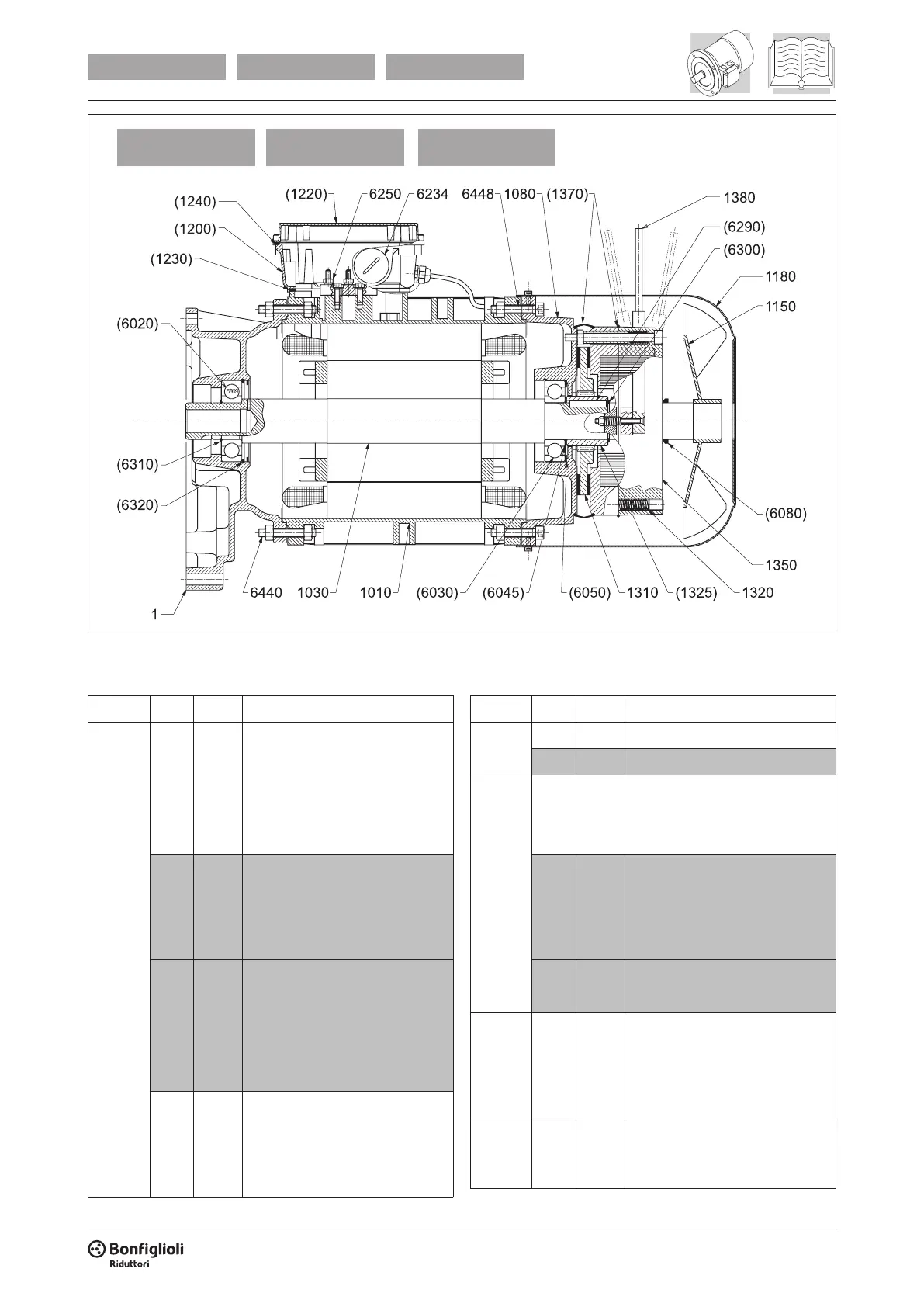

M5 MX5ME5
M5 ME5
M5 FD ME5 FD
MX5
MX5 FD
M5 FA ME5 FA
MX5 FA
kit ref. Description
M5
M5 FD
M5 FA
ME5
ME5 FD
ME5 FA
MX5
MX5 FD
MX5 FA
1 Motor  ange
1010 Stator
1030 Rotor
1150 Fan
1180 Fan cowl
KSM
(1200) Terminal box
(1220) Terminal box lid
(1230) Terminal box gasket
(1240) Terminal box lid gasket
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6310) Circlip
(6320) Circlip
6234 Blank plug
6250 Terminal board
6440 Flange bolt
6448 NDE shield bolt
kit ref. Description
M5 / ME5
MX5
1070 Rear shield
KSA (6080) V-ring
M5 FD
M5 FA
ME5 FD
ME5 FA
MX5 FD
MX5 FA
1080 Shield for brake motor
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6045) Spacer
(6290) Key (brake hub)
(6300) Circlip
KPF
(1370) Water/dust guard (IP55)
(6080) Brake V-ring (IP55)
M5 FD
ME5 FD
MX5 FD
1300 d.c. brake type FD
1328 Stainless steel disc (IP55)
1360 Brake release
1390 ac/dc recti er
M5 FA
ME5 FA
MX5 FA
1350 a.c. brake type FA
1380 Brake release
(####) Only available as a complete kit
