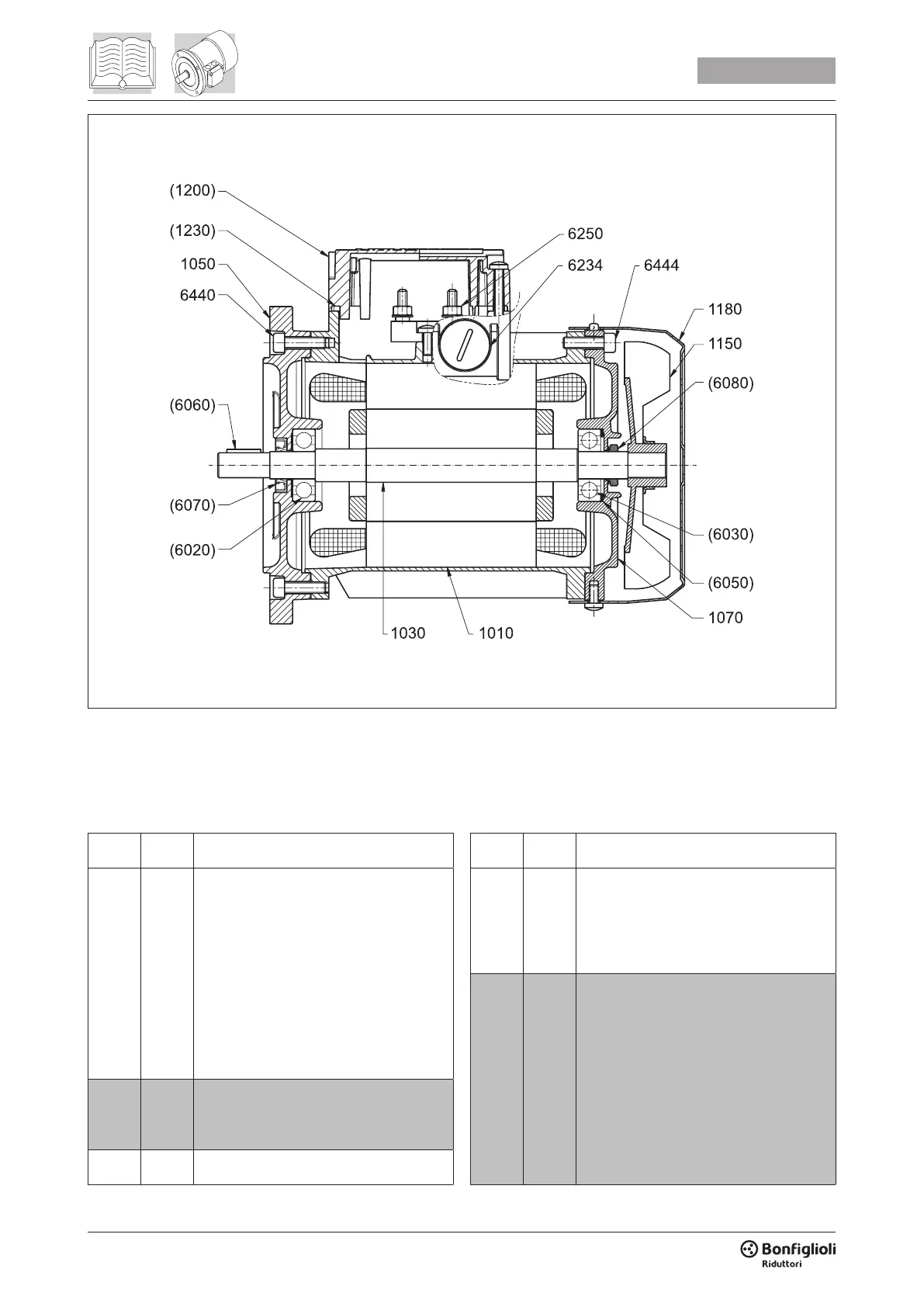

BN 63
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (IM B5/IM B14)
1070 Rear shield
1150 Fan
1180 Fan cover
KSM
(1200) Terminal box lid
(1230) Terminal box gasket
6234 Blank plug
kit ref. Description
6250 Terminal board
6440 Flange bolt
6444 NDE shield bolt
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
(6080) V-ring
(####) Only available as a complete kit
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (B5/B14)
1070 Rear shield
1100 Tie-rods
1150 Fan
1180 Fan cover
KSM
(1200) Terminal box lid
(1230) Terminal box gasket
kit ref. Description
6234 Blank plug
6250 Terminal board
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
(6080) V-ring
(####) Only available as a complete kit
