BONFIGLIOLI BX Series User Manual

27 / 32
IOM BX-BE-BN-MX-ME-M_eng - Translation of original instructions in Italian - Rev 02_0 - 30/09/16

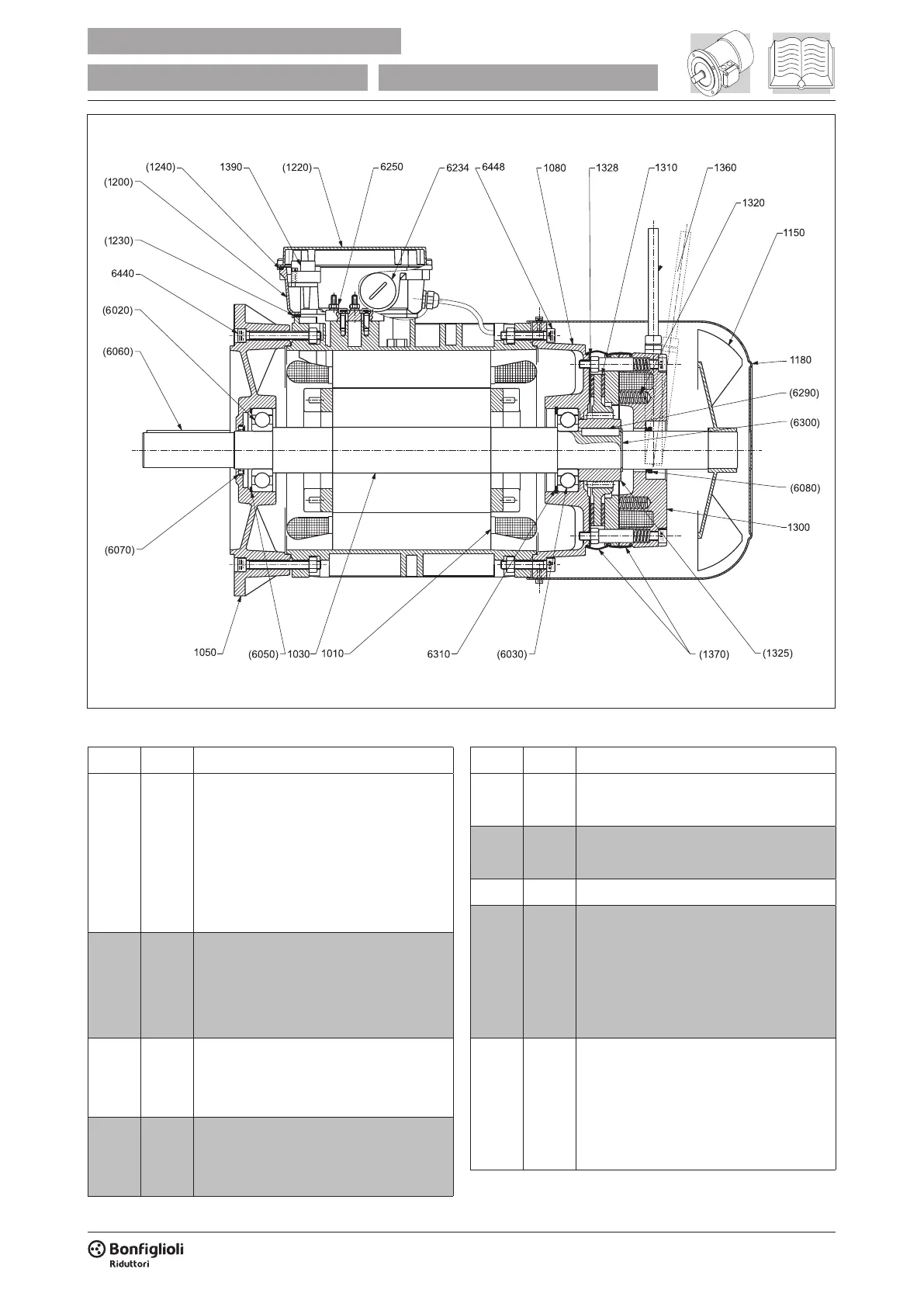

BN 160 FD ... BN 200L FD
BE 160 FD , BE 180 FD BX 160 FD , BX 180 FD
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (B5/B14)
1080 Rear shield
1100 Tie-rods
1150 Fan
1180 Fan cover
KSM
(1200) Terminal box
(1220) Terminal box lid
(1230) Terminal box gasket
(1240) Lid gasket
1290 Spacer ring
1300 d.c. brake type FD
1310 Brake disc
1320 Brake springs
kit ref. Description
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
1328 Stainless steel disc (IP55)
1360 Hand release lever
KPF
(1370) Grommet (IP55)
(6080) V-ring (IP55)
1390 ac/dc recti er
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
6234 Blank plug
6250 Terminal board
(####) Only available as a complete kit
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (IM B5)
1080 Rear shield (NDE)
1150 Fan
1180 Fan cover
KSM
(1200) Terminal box
(1220) Terminal box lid
(1230) Terminal box gasket
(1240) Lid gasket
1300 d.c. brake type FD
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
kit ref. Description
1328 Stainless steel disc (IP55)
1360 Hand release lever
KPF
(1370) Grommet (IP55)
(6080) V-ring (IP55)
1390 ac/dc recti er
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
6234 Blank plug
6250 Terminal board
6310 Circlip
6440 Bolts DE
6448 Bolts NDE
(####) Only available as a complete kit
