BONFIGLIOLI BX Series User Manual

28 / 32
IOM BX-BE-BN-MX-ME-M_eng - Translation of original instructions in Italian - Rev 02_0 - 30/09/16

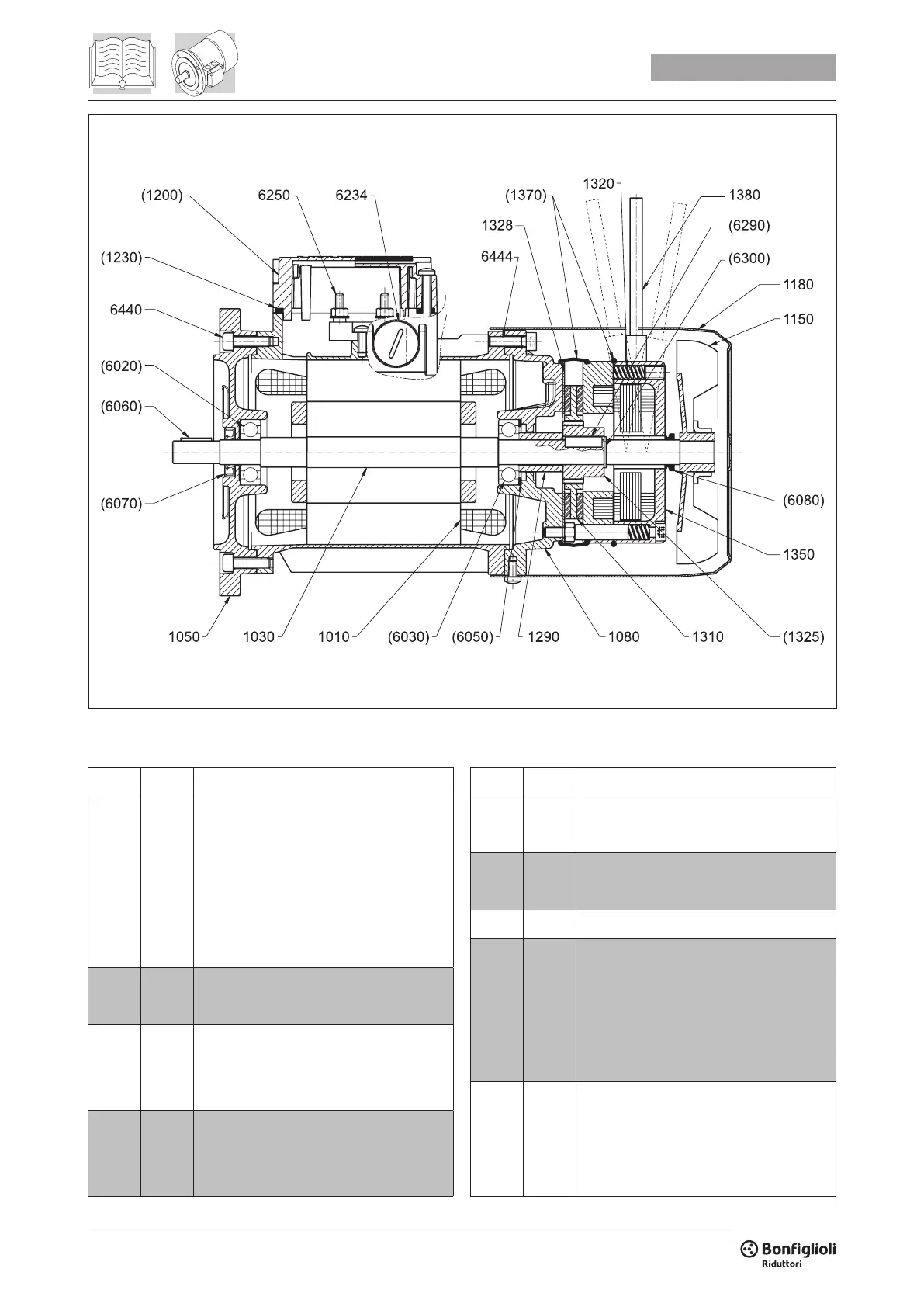

BN 63 FA
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (B5/B14)
1080 Rear shield
1150 Fan
1180 Fan cover
KSM
(1200) Terminal box
(1230) Terminal box gasket
1290 Spacer ring
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
kit ref. Description
1328 Stainless steel disc (IP55)
1350 a.c. brake type FA
KPF
(1370) Grommet (IP55)
(6080) V-ring (IP55)
1380 Hand release lever
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
6234 Blank plug
6250 Terminal board
6440 Flange bolt
6444 NDE shield bolts
(####) Only available as a complete kit
kit ref. Description
1010 Stator winding complete
1030 Rotor shaft
1050 Mounting  ange (B5/B14)
1080 Rear shield
1100 Tie-rods
1150 Fan
1180 Fan cowl
KSM
(1200) Terminal box
(1230) Terminal box gasket
1290 Spacer ring
1310 Brake disc
1320 Brake springs
KTF
(1325) Brake hub
(6290) Key (brake hub)
(6300) Circlip
kit ref. Description
1350 a.c. brake type FA
KPF
(1370) Brake seal kit (IP55)
(6080) V-ring (IP55)
1380 Hand release lever
KSA
(6020) Bearing
(6030) Bearing
(6050) Compensation ring
(6060) Key
(6070) Seal ring
6234 Blank plug
6250 Terminal board
(####) Only available as a complete kit
