27
4.1 A
DJUSTING THE HEADLAMPS
To adjust the headlamps proceed as follows:
1. Place the unladen and complete vehicle with correct tyre pressures on an even surface 10 metres
away from a white wall slightly in the shade. The vehicle should point at right angles to the wall.
2. Draw a horizontal line on the wall, approximately 2 ft. 3 ins. / 67 – 70 cm high.
3. Switch on dipped beam and adjust the headlamp angle so that light meets the wall below this line.

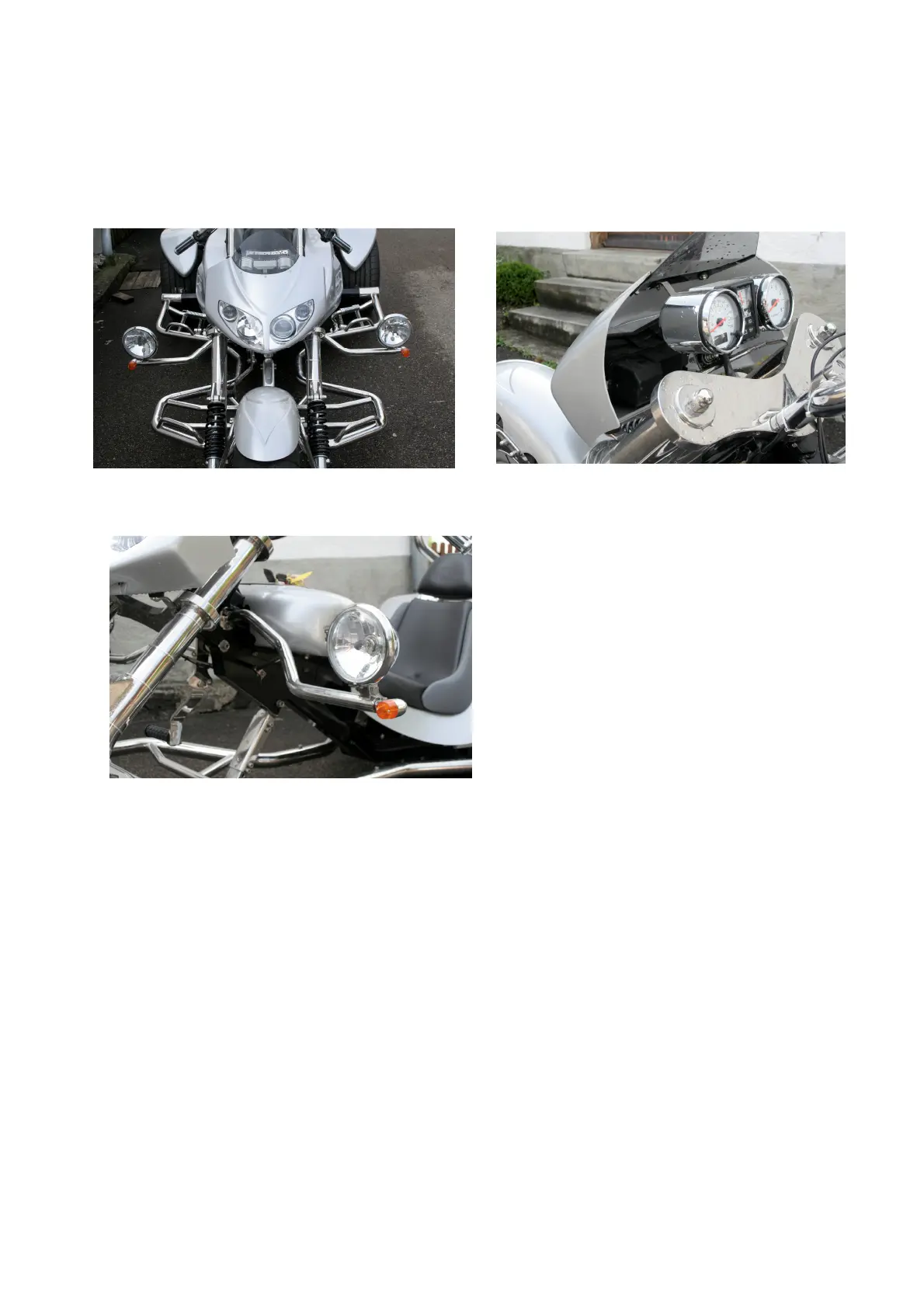

Fig. 26 Fig. 27
Fig. 28
4.2
R
EAR
-
VIEW MIRRORS
To adjust a rear-view mirror, gently press a mirror edge and turn it in the direction required.
