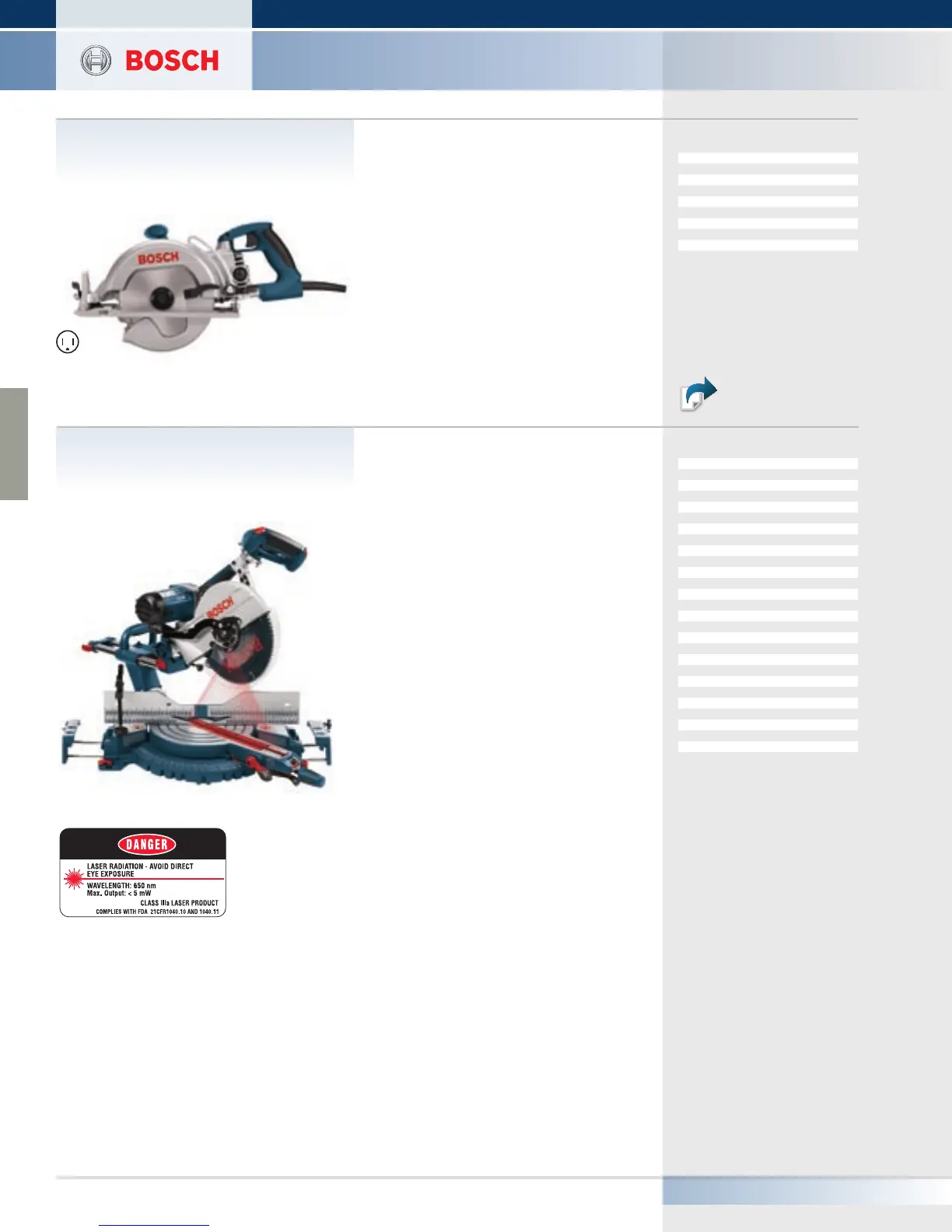

5412L
12" Dual-Bevel Slide Miter Saw with
Up-Front Controls & Laser Tracking
Specifications
Rating 120V
Amperage 15
No Load RPM 3,800
Max. Tool HP 3.0
Blade Diameter (in.) 12"
Arbor Size 1"
Height (in.) 20"
Weight (lbs.) 59
Bevel Angle Range 47° to 47°
Bevel Detents 0°, 33.9°, 45° Left/Right
Miter Angle Range 52° Left / 60° Right
Miter Detents 0°, 15°, 22.5°, 31.6°, 45°,
(Left/Right) 60° (Right)
Crown Molding - Angled Against Fence 6" max.
Crown Molding - Laying Flat 10-1/4"
(90° corner when molding has a 38°
“spring” angle from wall) using 31.6°
miter and 33.9° bevel stops
Base Molding - Against Fence 4-1/4" max.
Base Molding - Laying Flat 12"
Miter/Bevel(Max Height x Width)
0°/0°
- 4-1/4" x 12-1/2" (4 x 12 Nominal)
0°/45° right
- 1-3/4" x 12-1/2" (2 x 12 Nominal)
0°/45° left
- 2-3/4" x 12-1/2" (2 x 12 Nominal)
45°/0°
- 4-1/4" x 8-3/4" (4 x 8 Nominal)
45°/45° right
- 2-5/8" x 8-3/4" (2 x 8 Nominal)
45°/45° left
- 2-3/4" x 8-3/4" (2 x 8 Nominal)
Includes
Premium 60-Tooth Thin-Kerf
Carbide-Tipped Blade ..................CB1260
Wrench Set .......................................Included
Tool-Free Verticle Work Clamp.......MS1226
Dust Bag/Elbow ...............................MS1225
Arbor Laser/3x Battery ......... 2 610 924 646
Optional Equipment
Gravity-Rise™ Wheeled Stand ............... T4B
TracRac® Portable Stand w/Wheels .... T3B
Horizontal Quick Clamp Crown
Stop Bracket ..................................MS1221
Extra-Long Base Rod Kit .................MS1222
Length Stop Kit .................................MS1223
Kerf Insert ..........................................MS1224
Vacuum Adaptor (35mm Hose) ...... VAC003
Features
• Up-Front Bevel Lock Lever and Range Selector
Knob - Easily-accessed controls for quick and
accurate bevel settings
• Arbor mounted laser tracking - Provides accurate
laser lines for precision cutting
• Multi-Position Main Handle - Easily locks into any
of four positions for optimum comfort and control
• Large 25-1/2" Base with Built-In Cast Sliding
Extensions for 40" total length
• Tall 4-1/2" Speed-Track Sliding Fences - For easy
bevel set-ups and increased crown molding
cutting capacities
• Built-in Length Stop - For quick repetitive cuts of
the same length
• Easily Readable Bevel and Miter Scales - For easy
setting of accurate bevel and miter angles
• Exclusive Wedge-and-Slot Miter Detent
System - Consistent and precise miter angles
over the life of the tool
• Miter Detent Override - For fast and precise
angle adjustment
• Crown Molding Settings - 31.6° miter and 33.9°
bevel detents for quick, accurate crown cuts
• Dual Sliding Rail Design - For superior accuracy
• Electric Brake - For quick, repetitive cuts. Stops
blade in seconds
Specifications
Rating 120V
Amperage 15
No Load RPM 4,400
Blade Diameter (in.) 7-1/4"
Arbor Size Diamond
Depth of Cut (in.)
at 90° 2-3/8"
at 50° 1-13/16"
at 45° 1-15/16"
Weight (lbs.) 14
Includes
24 Tooth Carbide Blade ..................WD724B
Built-in Saw Hook ............................Included
Blade Wrench ...................................Included
Optional Equipment
Worm Drive Rip Fence .....................WD7RIP
Worm Drive Lubricant ................... WD7LUB
Features
• Left side blade design - Unmatched line of sight
and blade visibility
• Powerful 15 Amp
• All ball-bearing motor with worm drive gear train
• Built-in saw hook - For easy storage between cuts
• Anti-snag lower guard - To minimize snagging
in wood
• Die cast magnesium footplate - For greater strength
• 50° bevel capacity with positive stop at 45°
• Magnesium housing
• Large adjustment levers
• Easy serviceable brushes
• Soft grip handle
• Spindle Lock
1677M
7-1/4" Worm Drive with Rear Handle
Construction Saw
See pages 95–102 for
circular saw accessories.
