Bosch Climate 5000 Series - For Model: 48 K Multi Zone Regular System; Bms500-Aam048-1 Csxrc

| 19
Service Manual
Bosch Climate 5000 Series Ductless Air Conditioner / Heat Pump Multi Zone Outdoor Units (01.2023)
5.6 For Model: 48K Multi Zone Regular System
BMS500-AAM048-1CSXRC

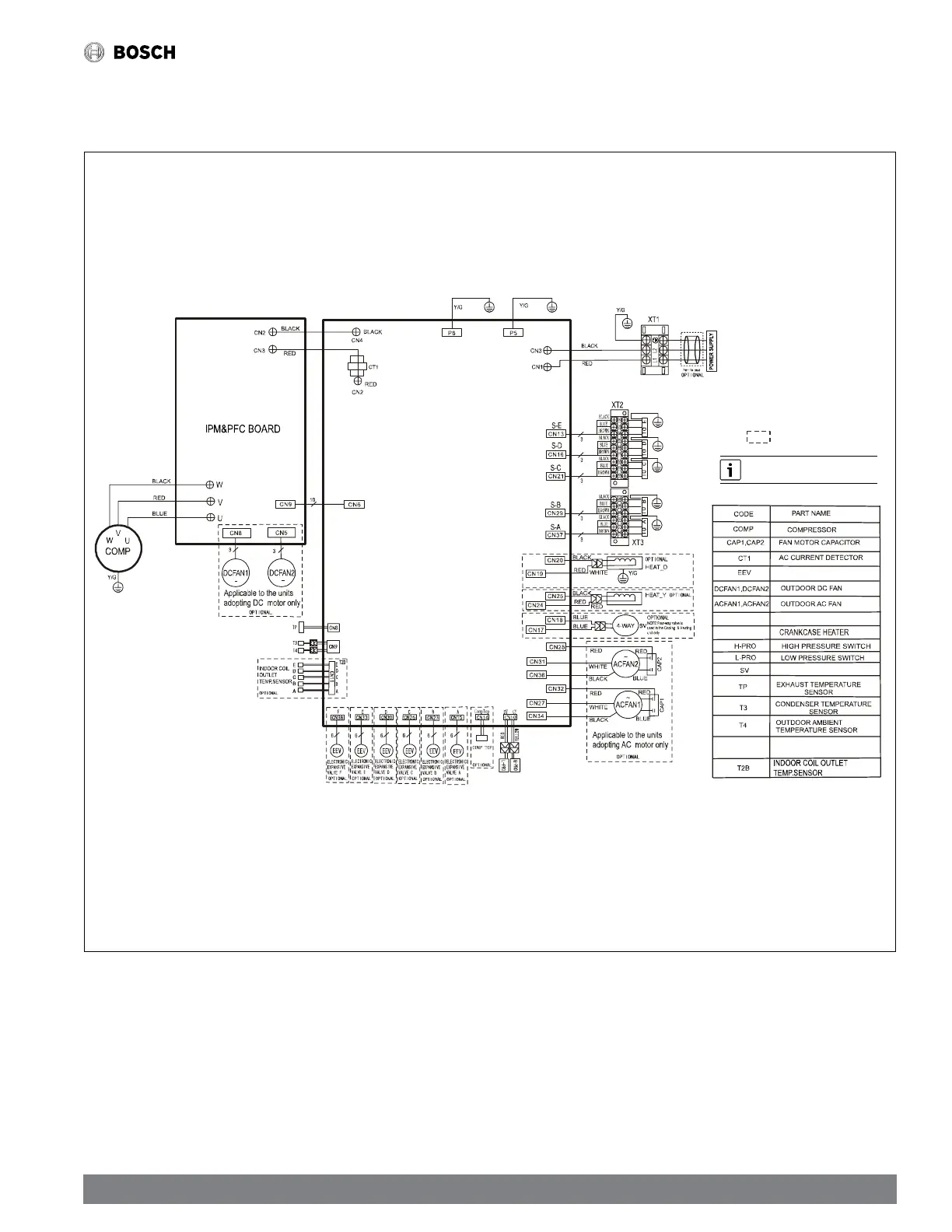

Figure 14
MAIN CONTRO L BOARD
REVERSINGVALVE
ELEC TRONIC EXPANSIVEVALVE
HEAT _D
CHASSI S HEATER
HEAT _Y
COMP. TOP OLPTEMP. SENSORCOMP TOP
16022000036851
Items listed as OPTIONAL depend on
the specific model installed.
Notes:
Compressor Crankcase
Heater
Base Pan Heater
