Bosch Climate 5000 Series - Dimensions; Outdoor Unit

| 9
Service Manual
Bosch Climate 5000 Series Ductless Air Conditioner / Heat Pump Multi Zone Outdoor Units (01.2023)
3 Dimensions
3.1 Outdoor Unit

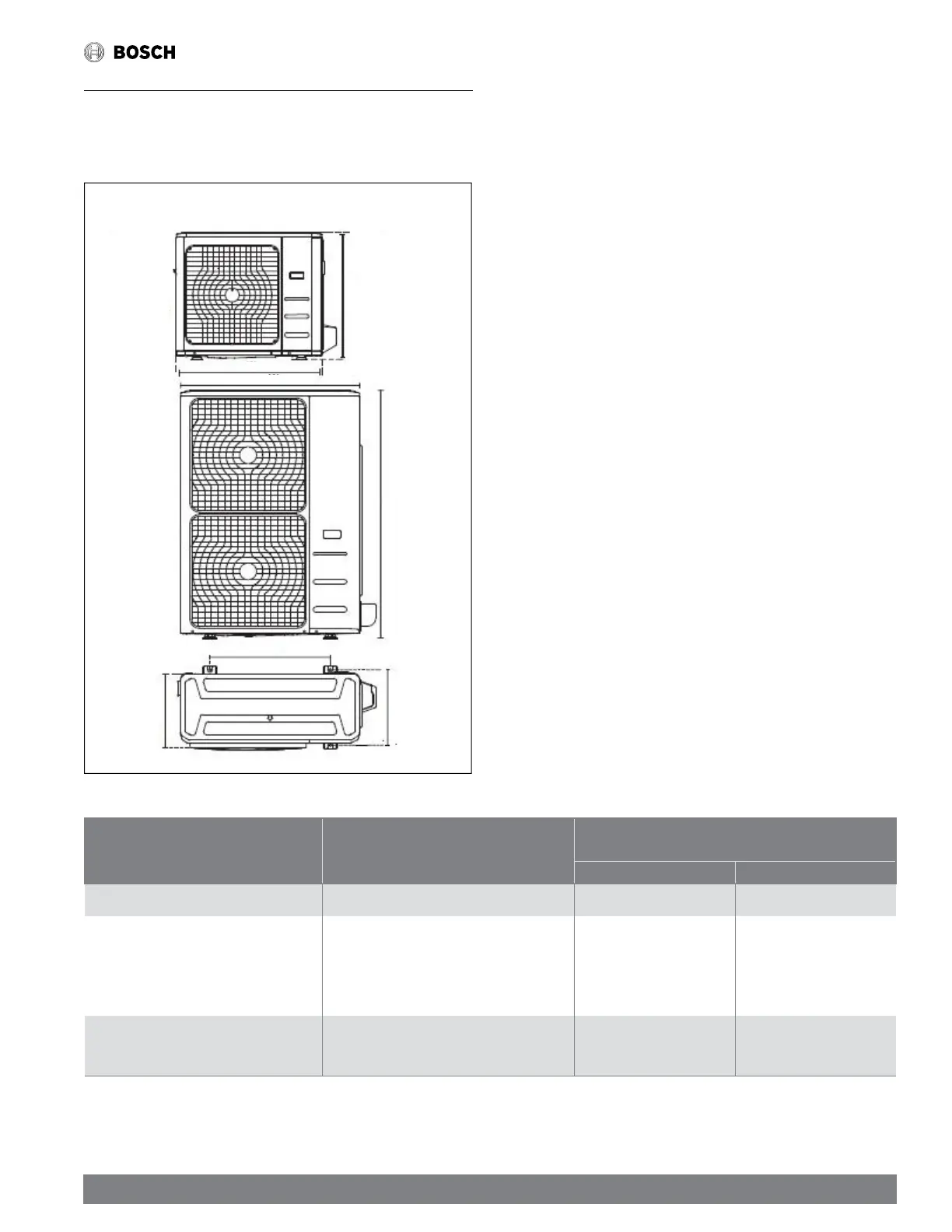

Split type outdoor unit mounting dimensions
Figure 1
Split Type Outdoor Unit
H
W
W
H
A
B
D
Outdoor Model
Outdoor Unit Dimensions mm (in.)
W x H x D
Mounting Dimensions
mm (in.)
Distance A Distance B
BMS500-AAM018-1CSXRC
890x673x342 (35.04x26.5x13.46)
663 (26.1) 354 (13.94)
BMS500-AAM018-1CSXHC,
BMS500-AAM027-1CSXRC,
BMS500-AAM027-1CSXHC,
BMS500-AAM036-1CSXRC
946x810x410 (37.24x31.89x16.14) 673 (26.5) 403 (15.87)
BMS500-AAM036-1CSXHC,
BMS500-AAM048-1CSXRC,
BMS500-AAM048-1CSXHC
952x1333x415 (37.48x52.48x16.34) 634 (24.96) 404 (15.9)
Table 6
