To adjust volume, the “Vol Adj” needs to be checked on setup user screen.

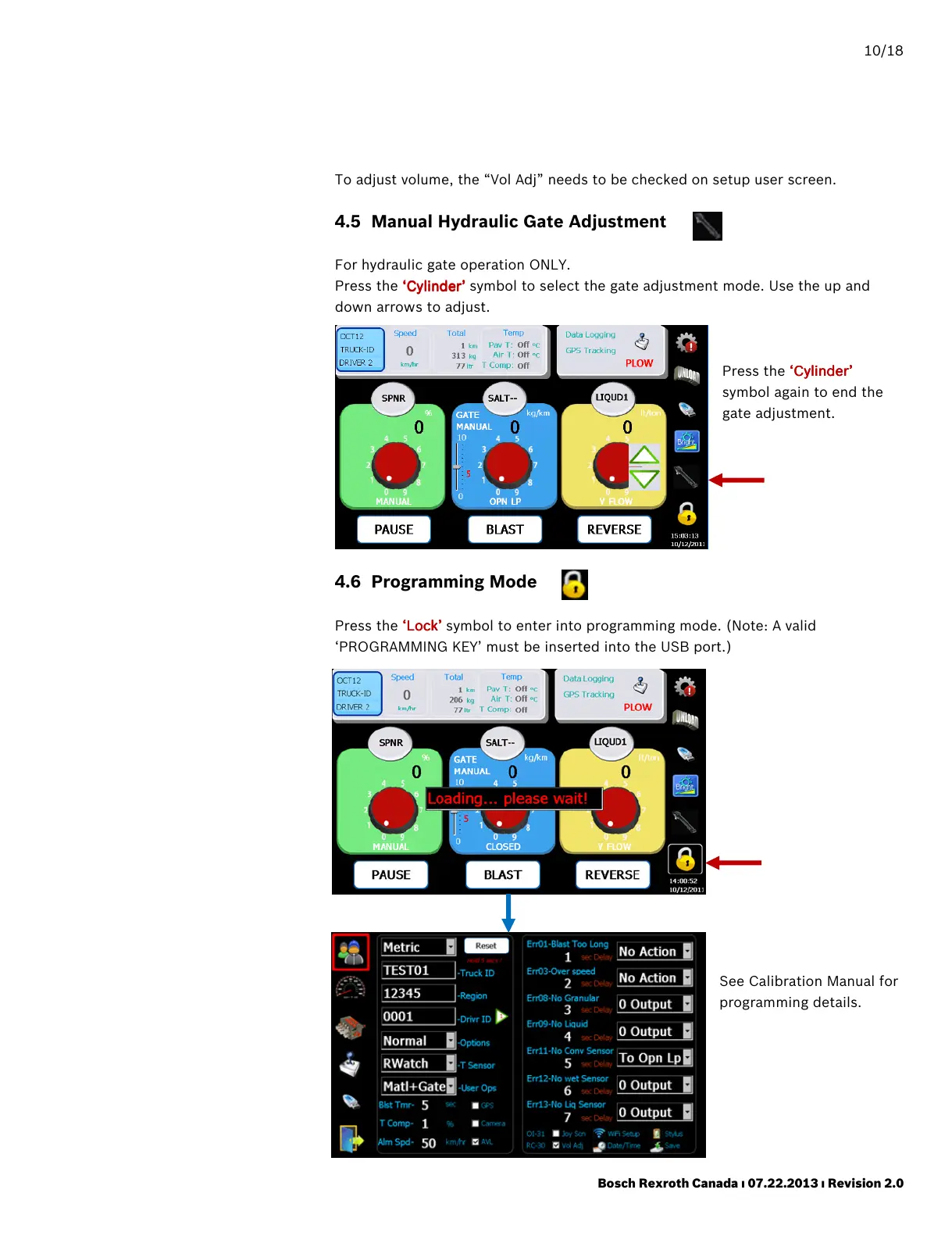

4.5 Manual Hydraulic Gate Adjustment
For hydraulic gate operation ONLY.
Press the ‘
‘‘
‘Cylinder
CylinderCylinder
Cylinder’
’’
’ symbol to select the gate adjustment mode. Use the up and
down arrows to adjust.
Press the ‘
‘‘
‘Cylinder
CylinderCylinder
Cylinder’
’’
’
symbol again to end the
gate adjustment.
4.6 Programming Mode
Press the ‘Lock’
‘Lock’‘Lock’
‘Lock’ symbol to enter into programming mode. (Note: A valid
‘PROGRAMMING KEY’ must be inserted into the USB port.)
See Calibration Manual for
programming details.
